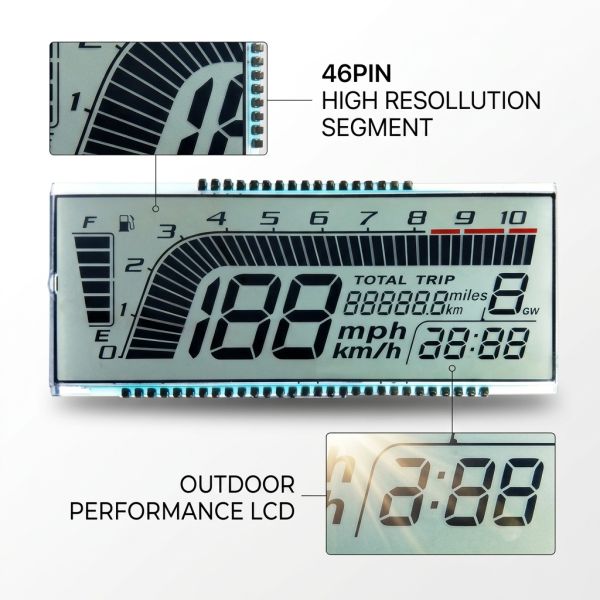

Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
Specifications
Voltage :
5V
Backlight Color :
Customizable
Operating Temperature :
0°C to 50°C
Segment Size :
Customizable
Interface Type :
PIN, 46numbers
Dimensions :
Customizable
Lcd Type :
HTN positive, Transflective
Viewing Angle :
6 O'clock
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
A segment LCD (Liquid Crystal Display) uses liquid crystals to create visual output, typically for displaying numbers, letters, and simple symbols. Segment LCDs are most commonly used in devices such as clocks, calculators, thermometers, and other appliances where numeric or alphanumeric output is needed.
Key Specifications
LCD Type HTN Positive
Polarizer Type Transflective
Viewing Angle 6 O' Clock
Operating Temperature 0~+50℃
Connector PIN, 46 Numbers
Working Voltage 5.0V
Backlight White
Structure and Working Principle
  • How It Works: Each segment is an individual pixel in the display. When a voltage is applied to a segment, the liquid crystals change alignment, allowing light to pass through or be blocked.
  • Control and Driver Circuits: Segment LCDs require a controller or driver circuit that can control the activation of each segment, typically achieved with multiplexing techniques.
Detailed Parameters
NO. ITEM SPECIFICATIONS
1 LCD Type HTN positive, Transflective
2 Viewing Angle 6 O'clock
3 Drive Method 1/4 Duty, 1/3 Bias, VOP=5.0V
4 Operating Temperature 0~+50℃
5 Storage Temperature -10~+60℃
6 Connector PIN, 46 numbers
7 Backlight LED, white
8 LCD Outline Dimension 99.8(W)* 42.0(H)* 2.8(T) mm
9 View Area 96.8(W)* 35.0(H) mm
Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable Custom Made LCD Display HTN Segment Screen 46PIN Transflective Sunlight Readable
HTN Segment Screen Features
HTN (High-Twist Nematic) LCD screen is an improved type of TN (Twisted Nematic) liquid crystal display technology with advantages such as high contrast, wide viewing angle (usually over 120°), fast response time, and relatively low cost with high cost-effectiveness.
46PIN Interface
The 46PIN interface is used to connect LCD screens with other components such as driving circuits, and can transmit data and control signals to drive and control the screen display content.
Transmissive Sunlight Readable
To achieve sunlight readability, it is usually necessary to increase the screen's light transmittance and contrast, reduce reflection, and may adopt special optical design or coatings to ensure clear visibility even in strong sunlight.
Customization Process
  • Demand Analysis: Communicate with the supplier to clarify specific requirements and determine technical parameters.
  • Solution Design: Supplier designs a preliminary technical solution and provides samples for confirmation.
  • Sample Production and Testing: Produce samples and conduct strict functional and environmental tests.
  • Mass Production and Quality Control: After sample confirmation, conduct mass production with strict quality control.
