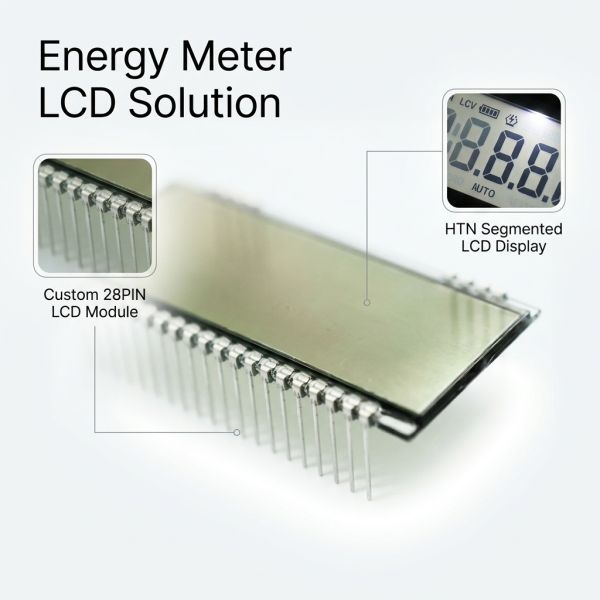

White Backlight Custom LCD Screen HTN Segmented 28PIN Energy Meter LCD Display
Technical Specifications
| LCD Type |
HTN Positive |
| Polarizer Type |
Transmissive |
| Viewing Angle |
6 O'clock |
| Operating Temperature |
-30~+70℃ |
| Working Voltage |
3.2V |
| Connector |
PIN, 28 Numbers |
| Backlight |
White LEDs |
Detailed Product Specifications
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
LCD Type |
HTN positive, Transmissive |
| 2 |
Viewing Angle |
6 O'clock |
| 3 |
Drive Method |
1/4 Duty, 1/3 Bias, VDD=3.2V |
| 4 |
Operating Temperature |
-30~+70℃ |
| 5 |
Storage Temperature |
-30~+85℃ |
| 6 |
Connector |
PIN |
| 7 |
PIN Pitch |
2.54 mm |
| 8 |
Backlight |
White LEDs |
| 9 |
Driver IC |
/ |
| 10 |
Outline Dimension |
61(W)* 29(H)* 2.8(T) mm |
| 11 |
View Area |
59(W)* 22(H) mm |
Product Features
- HTN Technology: High Twisted Nematic LCD with improved viewing angle (±120°), enhanced contrast (30:1), and temperature resistance (-30°C to 80°C).
- White Backlight: Provides clear visibility in low-light conditions with high-contrast black-on-white display.
- Segmented Display: Designed for fixed content display in energy meters with simple numeric and symbolic output.
- 28PIN Interface: Ensures stable connection and communication with energy meter control boards.
- Customizable Design: Available in various sizes, layouts, and interface configurations to meet specific application requirements.
