2.8 Inch TN TFT LCD Screen 240x320 SPI Interface
2.8 Inch TN TFT LCD Screen 240x320 SPI Interface
2.8 Inch TN TFT LCD Screen 240x320 SPI Interface
2.8 Inch TN TFT LCD Screen 240x320 SPI Interface
Specifications
Light Source :
White LED*6
Brightness :
250 cd/m²
display Type :
TN
Backlight :
4 LEDS
Screen Size :
2.8 inch
Backlight Technology :
LED
Viewing Angle :
6 O'clock
Resolution :
240*320
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

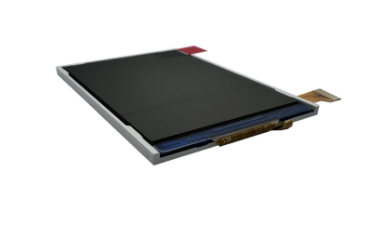

2.8 Inch TN TFT LCD Screen With SPI Interface 240x320 Resolution
This high-quality 2.8-inch TN TFT LCD screen features SPI interface and 240×320 QVGA resolution, making it ideal for various industrial and commercial applications.
Key Specifications
Attribute Value
Display Type TFT (TN)
Display Size 2.8 inch
Resolution 240×320 QVGA
Interface SPI
Driver IC ST7789P3
Viewing Angle 6 O'clock
Backlight 4-LED, 80mA
Active Area 43.20×56.70mm
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Module Dimensions
  • Module Size: 50mm(W) × 66.4mm(H) × 2.7mm(T)
  • Panel Active Area: 43.2mm(W) × 57.6mm(H)
Product Range
  • Custom Segment LCD Displays: TN, STN, HTN, FSTN, VA/BTN types available
  • Dot Matrix Graphic LCD Displays: From 96×16 to 320×240 resolutions
  • AMOLED Displays: 0.96" to 2.4" sizes available
  • TFT LCD Displays: 0.91" to 21.5" sizes with HD full color
