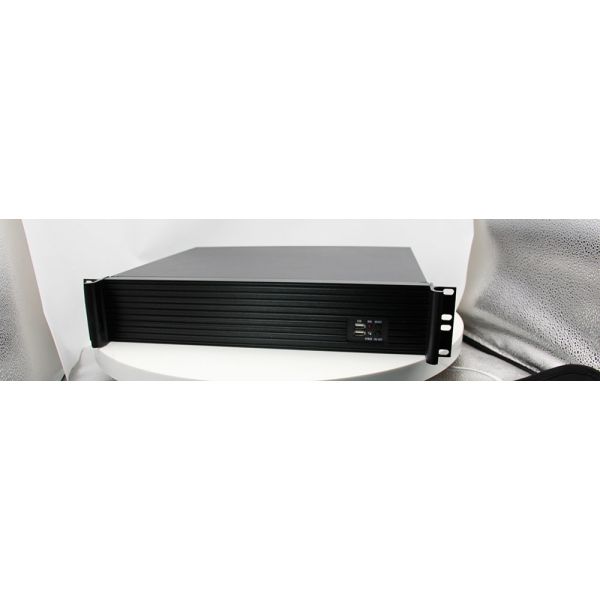

Rack Mounted Host 2U Industrial IPC Embedded Jetson AGX Xavier 32G
Rack Mounted Host 2U Industrial IPC Embedded Jetson AGX Xavier 32G
Rack Mounted Host 2U Industrial IPC Embedded Jetson AGX Xavier 32G
Rack Mounted Host 2U Industrial IPC Embedded Jetson AGX Xavier 32G
Specifications
Brand Name :
PLINK
Model Number :
AGX32-8F2E1
Place of Origin :
China
MOQ :
1set
Price :
To be negotiated
Payment Terms :
T/T, D/P, D/A, L/C
Supply Ability :
Batch purchase price negotiation
Delivery Time :
15-30 work days
name :
Rack mounted host 2U Industrial PC Jetson AGX Xavier 32G Industrial Embedded Computer Edge computing
keyword :
Rack mounted host 2U Industrial PC Jetson AGX Xavier 32G Industrial Embedded Computer Edge computing
AI Performance :
32 TOPS
GPU :
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores
GPU Max Frequency :
930 MHz
CPU :
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
CPU Max Frequency :
2.2 GHz
DL Accelerator :
2x NVDLA v2
DLA Max Frequency :
1.4 GHz
Memory :
32GB 256-bit LPDDR5 204.8GB/s
Storage :
32GB eMMC 5.1
Display :
1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
USB Micro-B :
1 x Micro-B
USB Type-A :
1 x USB 3.1
Other I/O :
4 x 3.3V GPIO 1 x 3.3V SPI 2 x 3.3V I2C 2 x RS 232 1x3.3V Debug 1 x MiniPCIe
Networking :
2 x 10/100/1000 Ethernet/RJ45
Power Supply :
220V
Temperature :
-20~+65°C
Size :
430 mm × 360 mm × 88 mm
Weight :
6050g
Description

Rack Mounted Host 2U Industrial IPC Embedded Jetson AGX Xavier 32G

2U Rackmount Computer Jetson AGX Xavier 32G

Volta GPU + 32GB LPDDR4x + 32GB eMMC

AGX32-8F2E1 is a 2u rackmount computer with NVIDIA Jetson AGX Xavier 32GB core module. is for industrial area, the NVIDIA Jetson AGX Xavier series system-on-module blends industry leading performance, power efficiency, integrated deep learning capabilities and rich I/O to enable emerging technologies with compute- intensive requirements.

The input power supply is 10W - 30W and reverse polarity protection functions, and has a wealth of external interfaces. The internal interface devices are all wide-temperature models.

Rack Mounted Host 2U Industrial IPC Embedded Jetson AGX Xavier 32G

Module NVIDIA Jetson AGX Xavier 32G

Product size

430mm×360mm×88mm

GPU

 512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
CPU 8-core NVIDIA Carmel Arm®v8.2 64-bit CPU 8MB L2 + 4MB L3
AI Performance 32 TOPS
Memory 32GB 256-bit LPDDR4x 136.5GB/s
Power 10W - 30W

Weight

6050g

Working temperature

-20~+65°C

Power requirements

220V

Optional expansion

32GB 1TB SSD storage

Maximum scalability 512g TF card memory

4G and WIFI module can be extended

The initial setting can be reset and restored
