Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
Specifications
Brand Name :
NVIDIA
Model Number :
Jetson nano module
Place of Origin :
USA
MOQ :
1pcs
Price :
USD130-USD140\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100pcs 30work days
Delivery Time :
15-30 wok days
NAME :
Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
Keyword :
Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB
GPU :
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores 0.5 TFLOPs (FP16)
CPU :
Quad-core ARM® Cortex®-A57 MPCore processor
Memory :
4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s
Storage :
16 GB eMMC 5.1 Flash
Camera :
12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)
Connectivity :
Wi-Fi requires external chip 10/100/1000 BASE-T Ethernet
Display :
HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous
UPYH :
1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0
Size :
69.6 mm x 45 mm
Mechanical :
260-pin edge connector
Description

Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB

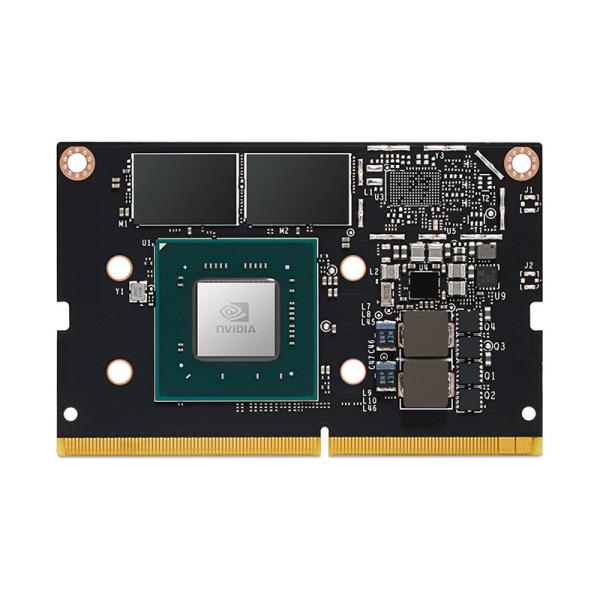

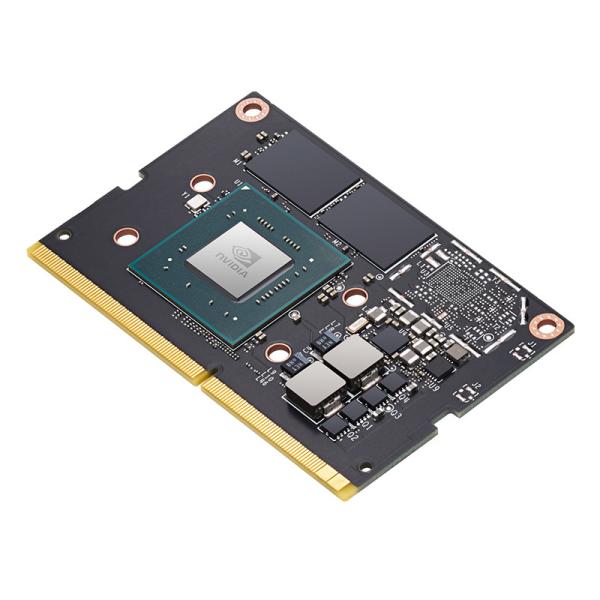

Deep Learning Board (NVIDIA Jetson Nano Module)

Maxwell GPU + ARM Cortex-A57 + 4GB LPDDR4 + 16GB eMMC

Bringing the Power of Modern AI to Millions of Devices.

NVIDIA Jetson Nano has the performance and capabilities needed to run modern AI workloads fast, It delivers 472 GFLOPs for taking on modern AI algorithms. 64-bit operating capability, and integrated advanced multi-function audio, video and image processing pipelines into a 260-pin SO- DIMM. The Maxwell GPU architecture implemented several architectural enhancements designed to extract maximum performance per watt consumed.

Core components of the Jetson Nano series module include:

NVIDIA® Tegra® X1 series SoC

- NVIDIA Maxwell GPU

- ARM® quad-core Cortex®-A57 CPU Complex

4GB LPDDR4 memory

16GB eMMC 5.1 storage

Gigabit Ethernet(10/100/1000 Mbps)

PMIC,regulators,power andv oltage monitors

260-pin key edconnector (exposes both high-speed and low-speed industry standard I/O)

On-chip temperature sensors

​Nvidia Jetson Artificial Intelligence Board Embedded PC Boards EMMC 16GB

NVIDIA Jetson Nano Module Technical Specifications

GPU NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores
0.5 TFLOPs (FP16)
CPU Quad-core ARM® Cortex®-A57 MPCore processor
Memory 4 GB 64-bit LPDDR4
1600MHz - 25.6 GB/s
Storage 16 GB eMMC 5.1 Flash
Video Encode 4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265)
Video Decode 4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265)
Camera 12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)
Connectivity

Wi-Fi requires external chip
10/100/1000 BASE-T Ethernet
Display HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous
UPHY 1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0
Networking 10/100/1000 BASE-T Ethernet
Display Three multi-mode DP 1.2a/e DP 1.4/HDMI 2.0 a/b
I/O 3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs
Size 69.6 mm x 45 mm
Mechanical 260-pin edge connector
