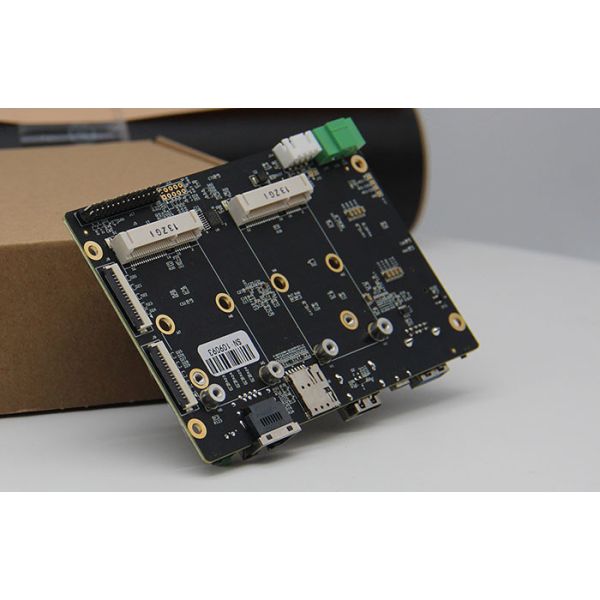

V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS
V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS
V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS
V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS
Specifications
Brand Name :
PLink
Model Number :
Y-C6-ONX16G
Place of Origin :
China
MOQ :
1PCS
Price :
USD199-USD219\PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
To be discussed
Delivery Time :
15-30 work days
NAME :
V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS
Keyword :
V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS
Camera :
2x 2 Lane MIPI
Module :
NVIDIA Jetson Orin NX
Memory :
16GB 128-bit LPDDR5 102.4 GB/s
AI Perf :
100 TOPS
Size :
120mm * 80mm * 18 mm
Weight :
78g
Description

V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS

NVIDIA Development Board(Y-C6)

Module:Jetson Orin NX

Support:HDMI/USB3.0/REC button/RST button/GPIO/I2C/CAN/SPI/miniPCIe/USB2.0/UART1/UART2(DEBUG)

Use to flash system:Micro USB

Need to modify driver:UART 0

AI Perf 100 TOPS
GPU 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
DL Accelerator 2x NVDLA v2
Memory 16GB 128-bit LPDDR5
102.4GB/s
Storage -
(Supports external NVMe)
Camera Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
PCIe 1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)
Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
Power 10W - 25W
Mechanical 69.6mm x 45mm
260-pin SO-DIMM connector

V2X Jetson Orin NX 16GB Carrier Board Module Y-C6 Development Board 100 TOPS

Micro USB

 1
USB3.1 Type-A 1

Micro TF card

 1

HDMI 2.0

 1
Working Indicator 1
MiniPCIe 2
(10 / 100 / 1000 BASE-T) RJ45 1
2 Lane MIPI Camera Interface FPC 2
RS-232 2
CAN 1
UART(3.3V) 1
SPI(3.3V) 1
I2C(3.3V) 2
Board Size 120mm×80mm×18mm
Power DC +9V~+24V
Working temperature -40~+85℃
Weight 78g
