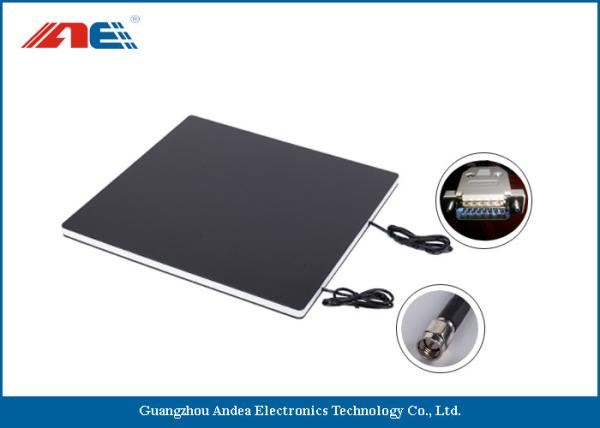

SMA RF Interfa IOT RFID Reader Antenna 3D Detection For RFID Jewelry Inventory System
SMA RF Interfa IOT RFID Reader Antenna 3D Detection For RFID Jewelry Inventory System
Specifications
Brand Name :
Andea Electroncis
Model Number :
DA3828
Pla of Origin :
CHINA
MOQ :
1 Piece
Pri :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500~1000 Sets Per Month
Delivery Time :
3~5 work days
Packaging Details :
Standard Export Carton, Foam and Protective Film
Place of Origin :
CHINA
RF Interface :
SMA
Reading Range :
30cm
Antenna Impedance :
50Ω
Max Support Power :
6W
Feeder Length :
1m
Housing Material :
PCB and Acrylic
Description
13.56MHz IOT RFID Reader Antenna 3D Detection For Jewelry Inventory

Product Introduction:

HF 3D pad type IOT RFID reader antenna is adopted Andea self-developed 3D omni-directional sensing patent technology. It features outstanding 3D reading capability for scanning RFID-tagged items quickly, irrespective of orientation or proximity. Ideal for aclerating processing and reading of items as they are passed between processes and individuals. The read range is configured to a well-defined area above the board only‒there’s no risk of reading other tags in the vicinity. It should be matched with Andea specified HF high power reader to work together. Suitable for RFID jewelry mangement, other tags statistics fields, etc.

Product Features:

  • Support 3D omni-directional sensing technology (patent technology)
  • Be capable of identifying high-density overlap small size tags
  • Quick stock counting

  • Simple workflow integration

Technical Specification
Model DA3828
Operating Frequency 13.56 MHz
RF Interface SMA
Reading Range 30cm
Antenna Impedance 50Ω
Max Support Power 6W
Feeder Length 1m
Housing Material PCB and Acrylic
Dimension 470*440*21mm
Weight 4700g


Product Application:

This model is a perfect design for tags statistics fields like jewelry inventory. In the jewelry shop, when shifting of duty, the staff will spend a lot of time to check and confirm the total amount of inventory before they leave. But sometimes they would have mistakes and ignorance. That makes a great pressure to them and it is quite necessary to improve the efficiency and accuracy. However, if using the RFID inventory technology, it takes them only a few seconds to finish this procedure. What they need to do is to put the jewelry on the antenna, link with the computer and check if the quantity and sorts right. So easy to save time, so they would pay more attention to serve their clients and think of doing better works.
