4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server
Specifications
Brand Name :
IOTROUTER
Model Number :
ZHC4931
Certification :
CE FCC RoHs
Place of Origin :
Sichuan, CHINA
MOQ :
1PCS
Price :
USD69-76/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000PCS/MONTH
Delivery Time :
1 WEEK
Packaging Details :
270*180*55mm CARTON PACKAGE
Material :
Galvanized Steel Sheet
Interface :
RS485/2DI/1DO/1AI
Protocol :
MODBUS TCP/RTU
Function :
Modbus RTU/TCP Automatic Identification
Application :
Iot Automation
Working Voltage :
12V
Module Type :
4G LTE
Customized :
Support
Product Name :
4G Serial Port Iot Cellular Modem
Size :
93*69*25mm
Description

4G Serial Port Iot Cellular Modem Support Standard Modbus With Cloud Server

  • Introduction​ of IOT Cellular Modem

Product model: ZHC4931, providing 1RS485/1RS232/1DI/1DO/1AI interface.
Features: Threshold reporting, wet and dry node detection, and the device itself supports logical operations.
Protocol: Support Modbusr RTU/TCP adaptive.
Industrial-grade quality: anti-reverse connection, anti-surge, dual watchdogs, can work normally at -20℃~+60℃
The product is suitable for: data security monitoring, remote water pump automatic control, water resources real-time management system

Parameters of IOT Cellular Modem

Serial Port
DO
Number of ports
RS485*1
Number of interfaces
1 Relay output
Standard
RS485: A, B
Standard
DO*1
Baud rate
600～921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
2 Relay input
Voltage
9~36V
Standard
DI*2, COM*1
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
1 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*1
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA


  • Collection function of IOT Cellular Modem

  • Collect analog standard signals such as pressure and water level transmitters, 4-20mA signals (default);
    Collect data from 485 meters such as flow meters and electricity meters;
    Support fixed-point/timing acquisition, freely configure acquisition/frequency
    Incompatible instrument protocols can be instrument-driven development

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

4G Serial Port Iot Cellular Modem Standard Modbus Modem With Cloud Server

ZHC4931

RS485 Modbus

√

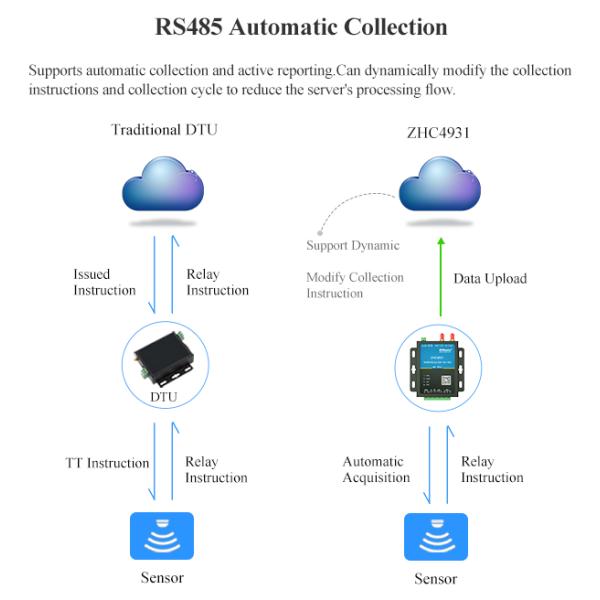

RS485 Automatic Acquisition

√

Virtual Serial Port

√

Connfiguration Software

√

Threshold Report

√
Configuration Software Docking √

Modbus RTU/TCP

√
