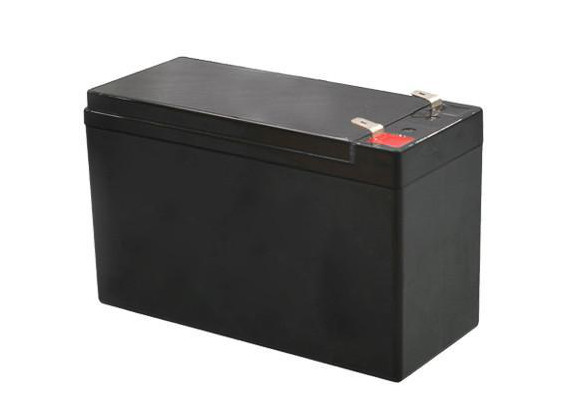

76.8Wh 12.8V6Ah Solar Lifepo4 Lithium Battery Pack ABS Plastic Case
76.8Wh 12.8V6Ah Solar Lifepo4 Lithium Battery Pack ABS Plastic Case
Specifications
Brand Name :
Purple Horn
Model Number :
76.8Wh 12.8V 6Ah
Certification :
CE
Place of Origin :
China
MOQ :
1PCS/ORDER
Price :
negotiable
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
12pcs/box, 4boxes/ctn
Nominal Voltage :
12.8V
Nominal: :
6Ah
Energy: :
76.8Wh
Charge Voltage: :
14.6±0.2V
Dimension(L*W*H*TH): :
151*65*94mm
Weight: :
1.05kg
Plastic Case :
ABS
Description

76.8Wh 12.8V 6Ah Solar Battery Storage System Lithium Iron Phosphate Battery Pack
1. Excellent abuse tolerance and environmentally friendly.
2. Excellent calendar life.
3. With greater power and energy density and lower impedance.
4. Suitable for a wide variety of applications and system designs.
5. Proven performance in the toughest conditions, combining durability, reliability, and safety
6. Offers an excellent combination of price-performance.​

Specifications:

Nominal Voltage 12.8V
Nominal Capacity 6Ah
Energy 76.8Wh
Internal Resistance 70≤mΩ
Cycle Life >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity
Months Self Discharge ≤3.5% per month at 25℃
Charge Voltage 14.6±0.2V
Charge Mode(CC/CV)

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C5A, and

then,changed continuously with constant voltage of 14.6V until the current was not

more than 0.02C5A.
Charger Current 1.2A
Max.Charge Current 3A
Discharge Current 1.2A
Max. Continuous Current 6A
Max.Pulse Current 20A(<3S)
Disxcharge Cut-off Voltage 10.0V
Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP55
Cell & Method IFR32700 N60,4S2P
Plastic Case ABS
Dimension(L*W*H*TH) 151*69*54mm
Weight 1.05kg
Terminal F2

76.8Wh 12.8V6Ah Solar Lifepo4 Lithium Battery Pack ABS Plastic Case

Design picture:

Applications:

76.8Wh 12.8V6Ah Solar Lifepo4 Lithium Battery Pack ABS Plastic Case

76.8Wh 12.8V6Ah Solar Lifepo4 Lithium Battery Pack ABS Plastic Case
