Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Low Voltage IP65 Single Phase 48V 3kw 3.6kw 4.6kw Solar Hybrid Inverter On/Off Grid 48V 5kw 6kw Hybrid Solar Inverter with MPPT
Specifications
Brand Name :
COENG
Model Number :
SP3KL
Certification :
CE, IEC
Place of Origin :
Guangdong, China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000piece/month
Delivery Time :
10-30working days
Packaging Details :
Carton, pallet
Size :
367mm*421mm*215mm
Battery Voltage :
48V
Input Voltage :
550VAC
OEM :
Accept OEM
Inverter Type :
Hybrid Solar Inverter
Protection Degree :
IP65
Gross Weight :
16kg
Description

Product Features.

1.LCD touch color screen, easy to operate

2.Support high power PV panel with 18A PVinput current
3.Max battery charge/discharge current of 135A
4.Support generator/smart load/AC coupling
5.Support up to 9pcs in parallel
6.Compact and lightweight,easy to transport and space-saving
MODEL
SP3KL
SP3K6L
SP3K68L
SP4KL
SP5KL
SP6KL
Nominal Battery Voltage
48VDC
Mounting Method
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Nos.of MPPT
2
2
2
2
2
2
Rated Grid Voltage
220V/230V/240V,L+N+PE
Battery Voltage Range
40V-65V
40V-65V
40V-65V
40V-65V
40V-65V
40V-65V
Rated Grid Frequency
50Hz/60Hz
Transfer Time
10ms (typical)
Max.AC Apparent Power
3,300VA
3,960VA
3,680VA
4,600VA
5,500VA
6,600VA
Protection Degree
IP65
IP65
IP65
IP65
IP65
IP65
Nominal AC Output Power
3000W
3600W
3680W
4000W
5000W
6000W
Weight
16Kg
16Kg
16Kg
16Kg
16Kg
16Kg

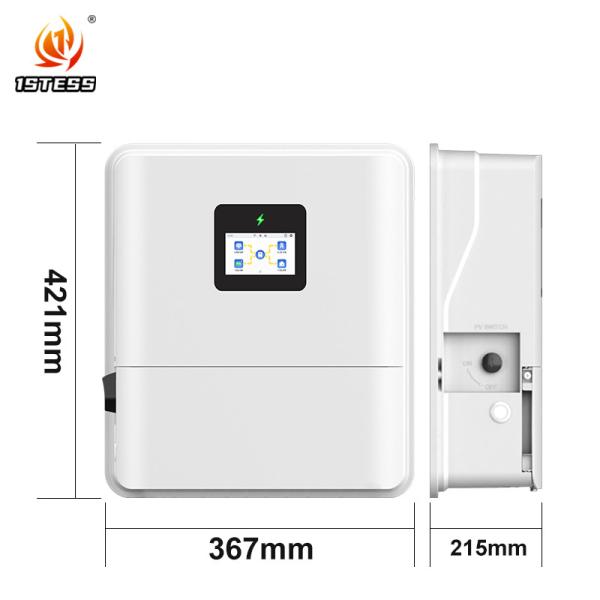

Dimensions (W*H*D)
367mm*421mm*215mm
Warranty
5 Years/10 Years (Optional)
Display
LED,LCD
