Specifications
Brand Name :
COENG
Model Number :
HD2000-C-10-2
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
20000sets/year
Delivery Time :
7-30working days
Packaging Details :
Wooden box
Single/Multi-Drive :
Flexible system with units/cabinets supporting two/four quadrants
Modular Design :
Enables application flexibility and comprehensive system integration
Rectifier Units :
Basic/Smart/PWM rectifier units for versatile power conversion
Max. Single Unit Power :
1400kW (Air-cooled), 2800kW (Liquid-cooled)
Voltage Levels :
400V, 690V, 1140V, 1380V
Max. Parallel Operation Power :
11200kW (Air-cooled), 22400kW (Liquid-cooled)
Description

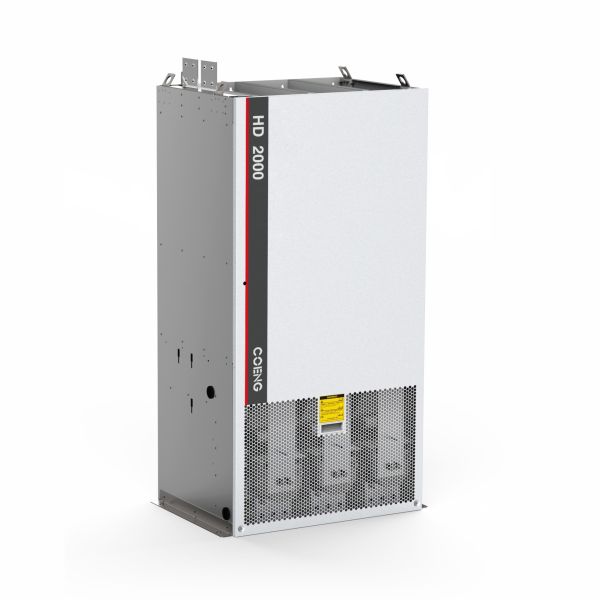

Model HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled)
Basic Rectifier Input voltage 4:380V～480V,6:500V～690V
Input frequency (50Hz/60Hz)±6%
Output voltage Input voltage * 1.32 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥99% Efficiency
Protection eunctions Protection functions: Overheating protection, soft-start protection, Interlock
protection, and more.
Intelligent rectifier Input voltage 4:380V ~ 480V,6: 500V ~ 690V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.3 (Under full-load condition)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98.5% Efficiency
Protection functions Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more
PWM rectifier Input voltage 4:380V~480V,6:500V~690V,9:1140V,A:1380V
Input frequency 47 ~ 63Hz
Output voltage Input voltage * 1.5 (Under rated conditions)
Overload capacity Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds
Operating efficiency ≥98% Efficiency (Including LCL filter unit)
Power factor Adjustable (Factory setting at 1)
Protection functions Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more.
Inversion Rated Input voltage 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc,
A:1488Vdc~2200Vdc
Output voltage 0 ~ Rectifier AC input voltage
Output frequency 0 ~ 500Hz
Speed range V/F:1:50 OLVC:1:200 CLVC:1:1000
Speed stability OLVC:0.2% CLVC:0.01%
Speed fluctuation OLVC:0.2% CLVC:0.1%
Starting torque OLVC:150%(0.5Hz) CLVC:200%(0Hz)
Torque control V/F: Unsupported OLVC:Supported CLVC: supported
Torque accuracy OLVC:5% CLVC:5%
Torque response time OLVC:5ms CLVC:5ms
Speed response time OLVC:100ms CLVC:100ms
Dynamic speed drop equivalent OLVC:0.5%*s CLVC:0.3%*s
Environmental conditions Temperature -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies
Humidity 5% ~ 95% Mon-condensing
Altitude ≤4000m, Derating applies from 2000m to 4000m
Mechanical data Anti-vibration performance Complies with IEC 60721-3-3:2002
Protection level IP00 / IP20 / IP40
Safety level Complies with UL 508C-2004
Cooling method Liquid-cooled
Motor Drive VFD Inverter Typical Applicantion
Advanced Protection Functions Protection Functions in HD2000 VFDs: Overheat, Soft-Start, and IGBT Safety
Advanced Protection Functions Protection Functions in HD2000 VFDs: Overheat, Soft-Start, and IGBT Safety

Advanced Protection Functions Protection Functions in HD2000 VFDs: Overheat, Soft-Start, and IGBT Safety

Advanced Protection Functions Protection Functions in HD2000 VFDs: Overheat, Soft-Start, and IGBT Safety

The distinctive selling points corresponding to different countries or regions
11. France
  • Energy-Efficient Design: ≥98.5% operating efficiency aligns with France’s focus on renewable energy and efficiency.
  • High-Torque Accuracy: 5% torque accuracy ensures precision in France’s luxury automotive and packaging industries.
  • Thermal Management: Advanced overheating protection extends lifespan in high-ambient-temperature applications.
  • Customizable Power Factor: Allows optimization for France’s specific grid requirements.
  • Easy Scalability: From 5.5kW to 3400kW, the product range supports both small workshops and large plants.
12. Italy
  • Compact and Aesthetic Design: Sleek cabinet designs (e.g., 600*2200*650mm) blend into Italy’s style-conscious manufacturing facilities.
  • High-Speed Response: 100ms speed response time enhances performance in textile and packaging machinery.
  • Reliable in Variable Loads: Overload capacity handles Italy’s seasonal production peaks in agriculture and fashion.
  • Water-Cooled Efficiency: Liquid-cooled units ensure quiet and efficient operation in noise-sensitive urban areas.
  • Local Service Compatibility: Modular units facilitate quick service, reducing downtime in Italy’s dense industrial districts.
13. Canada
  • Cold Climate Reliability: Functions seamlessly from -15°C to +40°C, ideal for Canada’s freezing winters.
  • High Power for Heavy Industry: Models up to 2800kW support mining, forestry, and oil sands operations.
  • Altitude Resilience: Operates up to 4000m, suitable for Canadian Rocky Mountain installations.
  • Energy Savings: High efficiency reduces electricity costs in energy-intensive sectors.
  • Safety-First Design: Overload and overheating protections ensure operator safety in remote locations.
14. South Korea
  • High-Frequency Operation: Up to 500Hz output frequency suits South Korea’s advanced electronics and semiconductor industries.
  • Space-Efficient Models: Compact types (5.5–160kW) optimize limited space in high-tech parks.
  • Precision Torque Control: Supported in OLVC and CLVC modes, essential for robotics and automation.
  • Rapid Installation: Pre-configured units reduce setup time in fast-paced manufacturing environments.
  • Humidity and Dust Resistance: IP20/IP40 protection ensures durability in coastal and urban settings.
15. Singapore
  • Tropical Climate Adaptation: Handles high humidity (5–95%) and temperatures up to 40°C without derating.
  • Compact for Urban Use: Space-saving designs fit Singapore’s high-cost industrial real estate.
  • High Efficiency for Cost Savings: ≥99% efficiency reduces operational expenses in Singapore’s energy-conscious market.
  • Multi-Drive Flexibility: Supports complex systems for Singapore’s port logistics and precision engineering sectors.
  • Global Standard Compliance: Meets IEC and UL standards, ensuring trust in international trade hubs.
