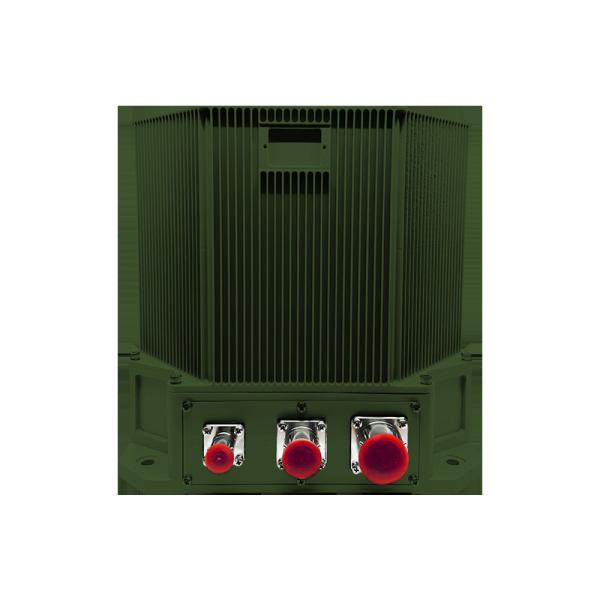

Land Force Navigation TDL645B Vehicle-mounted Optical Gyro Positioning And Orientation Equipment


1 Introduction

Incorporating laser or fiber optic gyros along with quartz accelerometers as core sensors, this vehicle-mounted optical gyro positioning and orientation system utilizes a strapdown inertial navigation architecture. It employs sophisticated navigation software to deliver real-time vehicle navigation parameters. The product series supports multiple operational modes: zero-velocity updates (ZUPT), integrated GNSS/IMU navigation, and integrated inertial/odometer navigation. This comprehensive system provides complete and continuous vehicle position, velocity, and attitude information, meeting the diverse requirements of various vehicle-mounted platforms.


2 Application field

Suitable for geodetic survey vehicles, tanks, self-propelled artillery, infantry fighting vehicles, unmanned vehicles, high-speed trains, agricultural machinery vehicles, etc.


3 Performance characteristics

Capable of alignment and initialization in static or dynamic (in-motion) states.

Features autonomous navigation, zero-velocity update (ZUPT), and integrated navigation with odometer and/or satellite-based systems.

Suitable for use in high-latitude (±65°), extremely cold, and high-altitude regions.

High reliability.


4 Main parameters


Type TDL645B
Accelerometer Months Bias Repeatability ≤20μg
Months Scale Factor Accuracy ≤20ppm
Gyro Bias Repeatability ≤0.01°/h
Scale Factor Accuracy ≤5ppm
Random walk ≤0.003°/√hr
Features Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude Any Orientation
Alignment time ≤15min
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Position Accuracy North finding/orientation accuracy ≤5m
Inertial navigation/odometer combination ≤0.08%D
North finding/orientation accuracy ≤0.4mil
Bearing keeping accuracy/2h ≤0.4mil
Combined navigation position accuracy ≤0.2mil
AHRS Applications Performance Heading Accuracy ≤0.2mil
Pitch & Roll Accuracy ≤0.2mil
Characteristics Power consumption ＜40W
Dimensions --
Weight ＜6.5kg
Temperature -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
Cooling Conduction to mounting plate
Vibration 20~2000Hz,6.06g
MTBF ＞15000 hours
