Model FG-500C Fast Response Maintenance Free Strapdown Technology Fiber Optic Gyrocompass for Ships
Model FG-500C Fast Response Maintenance Free Strapdown Technology Fiber Optic Gyrocompass for Ships
Specifications
Settling Time :
15 mins
Roll and Pitch :
0.05°
Weight :
5.9 Kg
Brand Name :
NAVI OPTICS
Model Number :
FG-500C
Certification :
CCS, MED
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
30 SETS per Month
Delivery Time :
5-8 work days
Packaging Details :
Corton Box
Dimension :
308*171*171 mm
Interface :
RS 232/RS 422
Power Spply :
24VDC
Description
Model FG-500C Fiber Optic Gyrocompass

High reliability, low cost, fast alignment and maintenance-free operation make the FG-500C fiber optic gyrocompass system an ideal solid-state, fully digital navigation solution for commercial vessels.

Product Overview

Based on strapdown navigation technology, the FG-500C can be installed directly on vessels without complex frame structures. With alignment times under 15 minutes, it significantly reduces vessel preparation time. High dynamic accuracy provides enhanced security, particularly when sailing in high latitude areas.

Key Features
  • Miniaturized medium accuracy closed-loop fiber optic gyroscope core components
  • Fast dynamic response capability
  • Wide dynamic measuring range
  • High reliability for long-endurance applications
  • Compact design with small footprint
Applications

Suitable for ships and boats, cargo vessels, fishing vessels, cruise vessels, unmanned underwater vehicles, offshore platforms, stationary vehicles, unmanned aerial vehicles, and more.

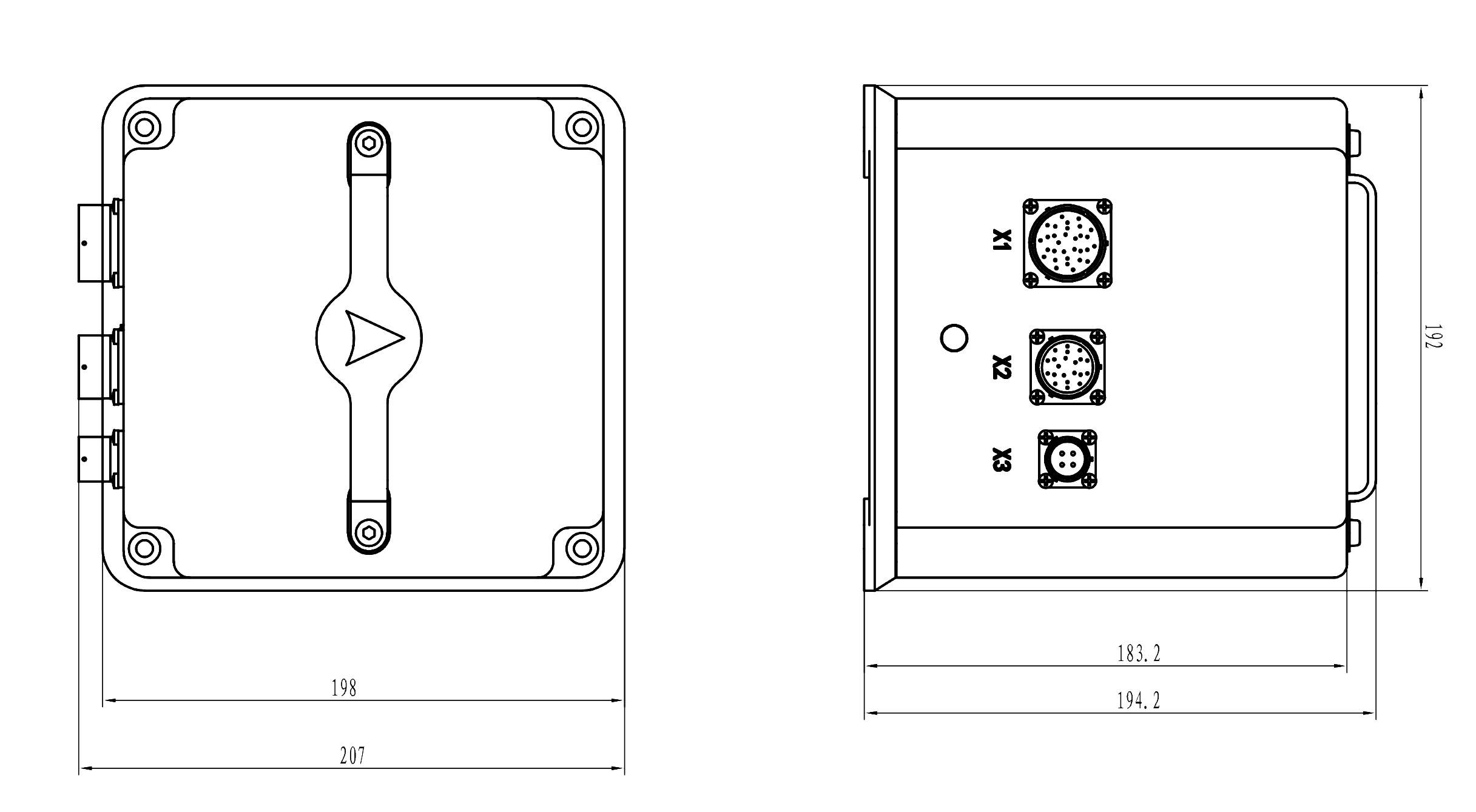

Structural Dimensions
Model FG-500C Fast Response Maintenance Free Strapdown Technology Fiber Optic Gyrocompass for Ships
Technical Specifications
Parameter Specification
Settling Time Dock: 10min | Sea: 15min
Accuracy - Roll & Pitch (1σ) 0.05°
Accuracy - Heading (1σ) 0.2° sec Lat
Dynamic Range - Angular Rate ±400°/s
Dynamic Range - Acceleration ±12g
Power Consumption 24VDC/15W
Interface RS-232/RS-422/CAN
Dimensions 308mm * 171mm * 171mm (L,W,H)
Weight ≤5.9kg
