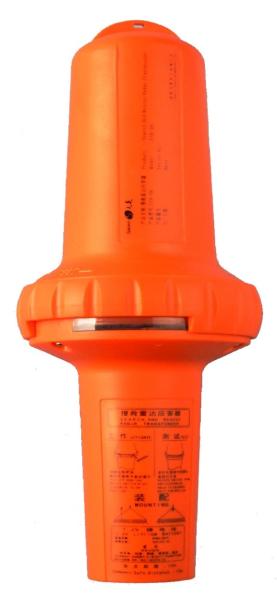

(SART)ESR-06 good EMC mature technology and reliable performance Lower power consumption GMDSS
(SART)ESR-06 good EMC mature technology and reliable performance Lower power consumption GMDSS
Specifications
Brand Name :
THUNDSEA
Model Number :
(SART)ESR-06
Certification :
CCS
Place of Origin :
Qingdao
MOQ :
one set
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
15 Days
Packaging Details :
carton box
Frequency range :
9200MHz~6500MHz
Polarization mode :
Horizontal polarization
Antenna :
Horizontal beam(omni-directional)＜±2dB vertical beam ±12.5°
Scanning rate :
7.5±1μs(forward oblique rise), 0.4±0.1μs(reverse recovery)
Radiation power :
≥27dBm
Response delay :
≤0.5μs
Effective sensitivity :
≤－52dBm
Recovery time :
≤10μs
Battery level :
Standby time is not less than 96 hours and continuous operating time is 8 hours
Operating temperature :
－20℃~55℃
Overall dimension :
φ120mm×345mm
Weight :
≤1kg
Description

(SART)ESR-06 good EMC mature technology and reliable performance Lower power consumption

Main functions

● It is capable of detecting the pulse action through the navigation radar installed on a search and rescue vessel or a helicopter. The signal from SART can indicate the exact position V of the SART on the fluorescent screen of the navigation radar of the search and rescue vessel or the helicopter;

● The survior who holds an SART or a vessel or boat in distress where an SART is equipped can discover the search and rescue vessel or the helicopter that is approaching them.

Features

● Lower power consumption due to X-band small-signal detection technique, waveform generation technique and high efficient power conversion technique;

● Characterized by good EMC, mature technology and reliable performance.


Indicators

Frequency range 9200MHz~6500MHz
Polarization mode Horizontal polarization
Antenna Horizontal beam(omni-directional)＜±2dB
vertical beam ±12.5°
Scanning rate 7.5±1μs(forward oblique rise),
0.4±0.1μs(reverse recovery)
Radiation power ≥27dBm
Response delay ≤0.5μs
Effective sensitivity ≤－52dBm
Recovery time ≤10μs
Battery level Standby time is not less than 96 hours and
continuous operating time is 8 hours
Operating temperature －20℃~55℃
Overall dimension φ120mm×345mm
Weight ≤1kg

Applications

This product applies to the safe rescue system for marine use.
