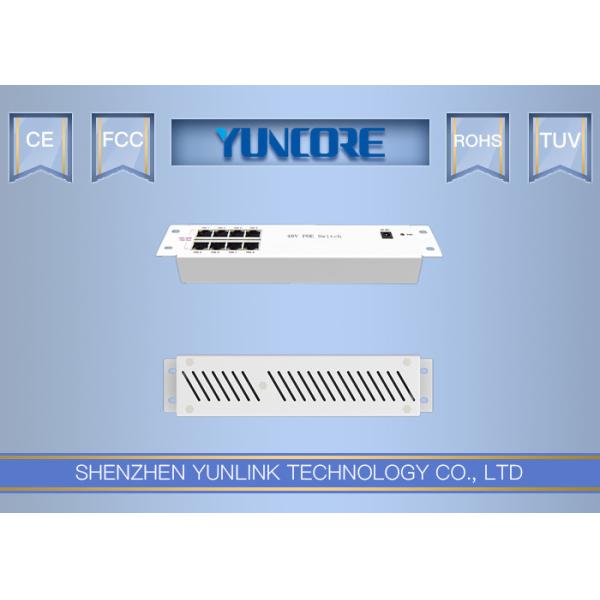

Compatible 8 Port Network Distribution Box 10 / 100M IEEE802.3 AF PoE Switch
Compatible 8 Port Network Distribution Box 10 / 100M IEEE802.3 AF PoE Switch
Specifications
Brand Name :
Yuncore
Model Number :
MR700
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 PCS/ WEEK
Packaging Details :
Giftbox + Carton box
Material :
Metal
Chipset :
RTL8309M
PoE :
IEEE802.3af
Power :
72W
Port :
8*10/100 PoE Port
Giftbox :
White neutral
Description

Network Distribution Box Compatible 8 Port 10 / 100M IEEE802.3 af PoE Switch

MR700 is a home use 48V PoE switch. It with 8 faster PoE ports, all ports support auto-negotiation, auto MDI/MDIX, comply with IEEE 802.3af active PoE standard, build in network/electronic distribution box to supply PoE Power and Data Rate for connected wireless AP, IP Camera, IP Phone...

Spec:

Model MR700(72W)
Standard

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

ANSI/IEEE 802.3 N Way

IEEE802.3x

IEEE802.3af
Ports

8*10M/100M RJ45 Ports, support 48V PoE, IEEE 802.3af

1*DC Injector: 48V/1.5A
Ports Features

10/100Mbps data rate

Support auto Negotiation /auto MDI/MDIX RJ45 Ports

IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
Cable requirement 10/100BASE-TX: UTP 5 cable(≤100 meters)
LED Indicator POE, LINK, POWER
Backplane Bandwidth 1.6 Gbps
Forwarding Capability 1.33Mbps
MAC Address Table

MAC Address Auto-Learning and Auto-Aging.

MAC Address Table: 2K
POE Power

Total PoE Power: 72W, Overload Protection: 72W

Max PoE Power of each port: 15W
Size 229mm * 49.5mm * 28.0mm
Input Power DC 48V 1.5A
Working Temperature -20℃~50℃

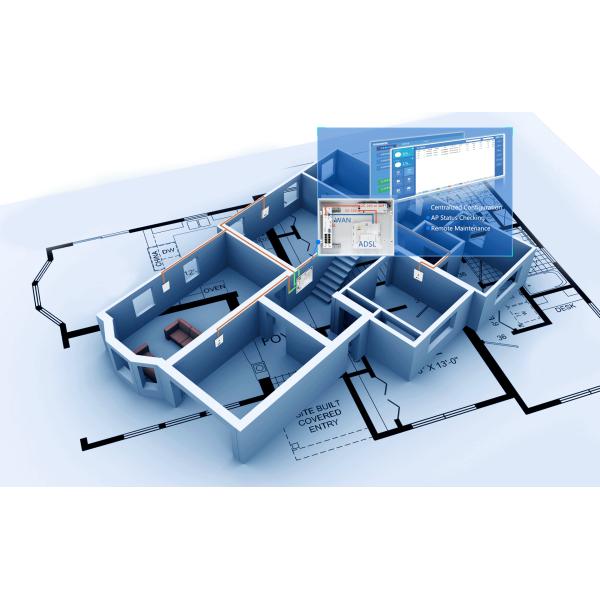

Working Diagram:

Compatible 8 Port Network Distribution Box 10 / 100M IEEE802.3 AF PoE Switch

Compatible 8 Port Network Distribution Box 10 / 100M IEEE802.3 AF PoE Switch

Compatible 8 Port Network Distribution Box 10 / 100M IEEE802.3 AF PoE Switch
