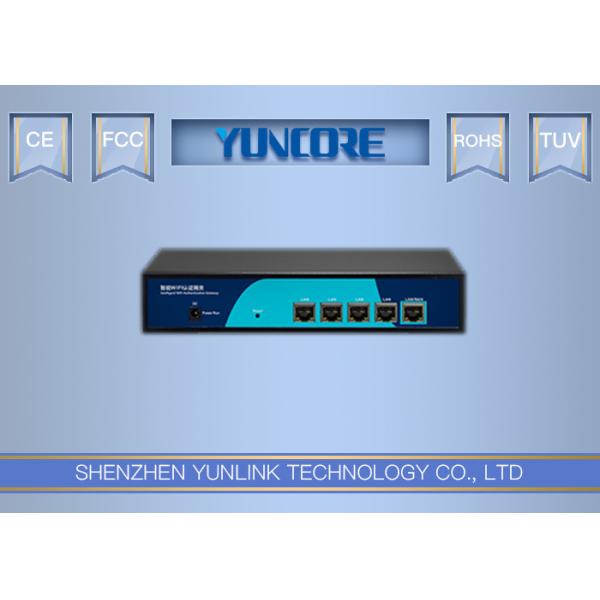

Intelligent Gigabit Wireless LAN Controller , SNMP Based Wireless Access Point Controller
Intelligent Gigabit Wireless LAN Controller , SNMP Based Wireless Access Point Controller
Specifications
Brand Name :
Yuncore
Model Number :
AC1000
Certification :
CE,FCC
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500PCS/ WEEK
Delivery Time :
4 working days
Packaging Details :
Giftbox + Carton box
CPU :
MT7621
RAM :
256MB
Material :
Metal
Flash :
16MB
Port :
5*Gigabit Port
power consumption :
< 10W
Description

Intelligent Gibabit WAN LAN Port SNMP Protocal Based Wireless Access Point Controller

AC1000 is a high performance wireless controller with full Gigabit ports,it can manage,monitor and control 50PCS ceiling AP,wall mounted AP produced by Yunlink in the same networking diagram simultaneous. It makes the small area wifi solution in hotel, school, industrial, super market, restaurant more easy in setting, control and monitor, human cost saved in much.

Product Features:

Detect wireless AP auto, max 50PCS wireless AP can be managed


1.Auto-IP detection and Distribution: AC1000 can detect all connected wireless AP, then distribute IP address for each AP automatically to avoid IP address conflict.


2.Manage and control: AC1000 can set AP’s SSID, Password, channel one by one or in group; It’s easy to operate AP, like upgrading firmware, restarting, resetting , then adjust subscriber’s QTY, wireless coverage, transmit power, making wireless signal more stable, to improve wireless networking quality.


3.Tag VLAN: AC1000 support tag VLAN to manage AP, maximum 24 VLAN supported. Connected with VLAN switch, deployed in networking as the bypass mode, it can realize information communication between each VLAN.


4.Real Time Monitor and Analyze: AC1000 will monitor and analyze wireless AP all the time, then show AP’s working status on Web manage page, make maintainer easy to maintain the whole networking.


Spec:

Hardware Spec
Model AC1000
AP Managed Max 50PCS Wireless AP to be managed
CPU MT7621 dual core 880MHz
FLAH 128Mb(16MB)
DDR DDR3 2048Mb (256MB)
Interface 5*10/100/1000M RJ45 Port
Size 225mm x123 mm x 35mm
Power Supply 100-240V～ 50/60Hz
Power Consume < 5W
Weight <2.5KGS
Working Temperature -20℃ ~ 45℃
Working Humanity 10%~90%RH (No condensation)
Storage Temperature -30℃~70℃
Storage Humanity 5%~90%RH (No condensation)

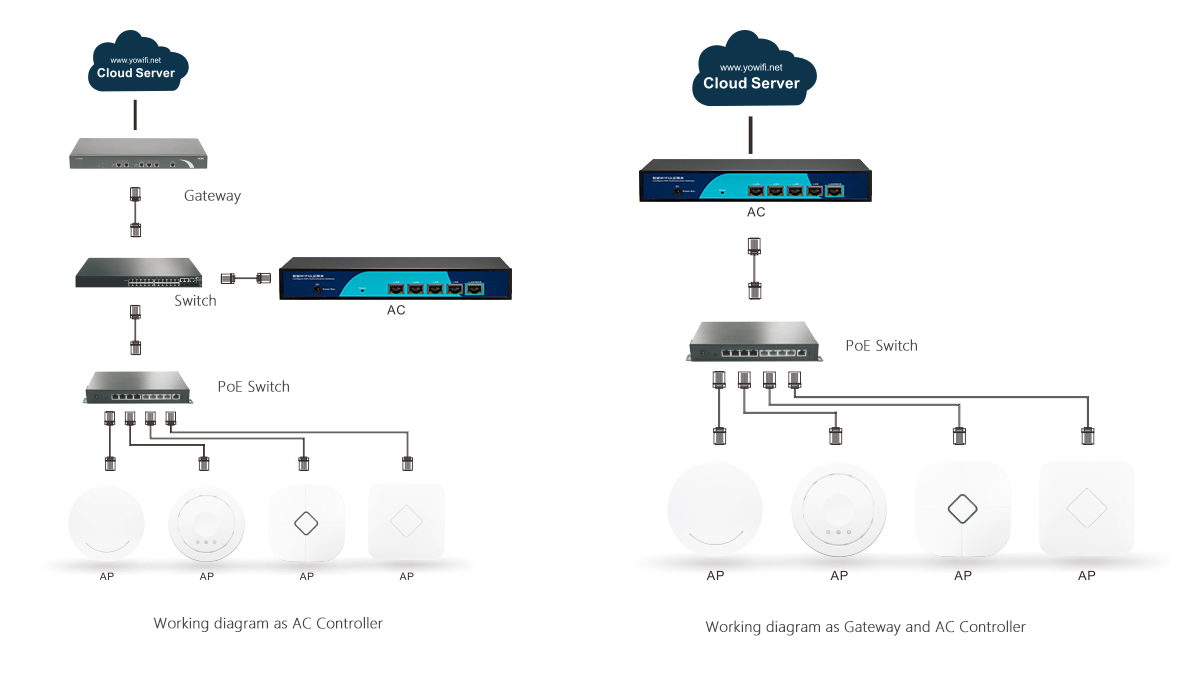

Working Diagram:
