5 Roll Calender PVC Plastic Transparent Color Rigid Film Sheet Extruder Machine
5 Roll Calender PVC Plastic Transparent Color Rigid Film Sheet Extruder Machine
Specifications
Brand Name :
Flame
Model Number :
5 Roll Calender
Certification :
ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 set
Price :
USD 550,000/set
Payment Terms :
T/T
Supply Ability :
5 sets/150 days
Delivery Time :
150 work days
Packaging Details :
Simple packaging
Automatic Grade :
Automatic
Condition :
New
Voltage :
380V/3P/50HZ
Plastic Process :
PVC
Application :
Film
Color :
as you like
Dimension: :
Customizable
Description

5 Roll Calender PVC Plastic Transparent Color Rigid Film Sheet extruder Extrusion Machine

--Produce Application---

Main application: vacuum forming PVC sheet, medical packaging PVC sheet, PVC magcard material,PVC poker sheet, PVC clock face, colored PVC sheet etc.

Name 0.8mm Clear Transparent Semi-rigid Plastic PVC Sheet Rolls
Type PVC Rolls
Color Clear, Transparent, White, Black, Colorful.....
Thickness Extruded: 0.2mm-3mm
Transparency Transparent, Semi-transparent, Opaque
Surface Glossy, Frosted/Matt, Embossed, with masking
Function Anti-static, Anti-UV
Application Thermoforming for tool,fishing gear,packing,folding,printing, electronics industry.
Feature High gloss, without crystallization point, without flow line, no impact fracture
Specification Extrusion line: 0.2mm-3mm width with any size length

---The main parameters ---
Brand Name Weier
Model number SJSZ80/156
Suitble resin PVC
Line speed 0.2-7m/min
Output 180-350Kg/h
Total power 165KW
Power supply 380V 3P 50Hz
Delivery detail 55 days
Center height 1000±50mm
After-sales service provided Engineers available to service machinery overseas
---Equipment list---

1. Screw feeder
2. SJSZ65/132conic twin screw extruder

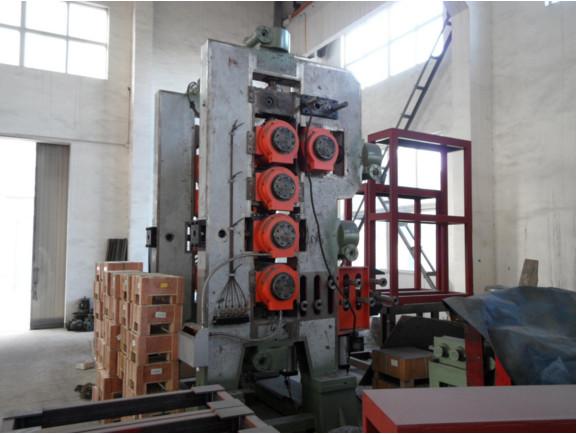

3. 5 rolls calender
4.Temperature controller
5. Roller cooling bracket
6.Haul-off machine
7.Reeling machine
8.Electrical cabinet
9.Spare parts


Write to me,you'll get more information about the line.The price,the detail parammeters,the arrangement plan and so on!
