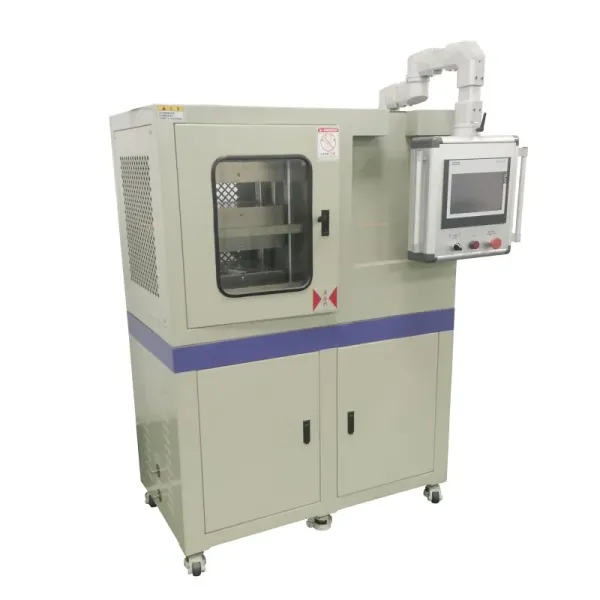

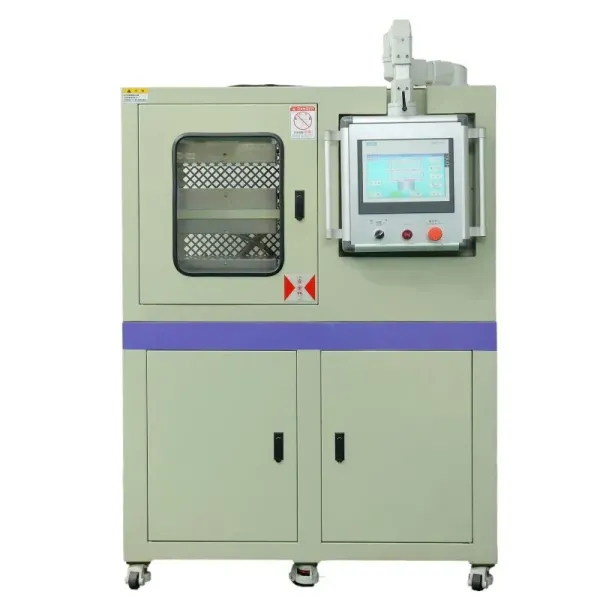

Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Specifications
Certification :
CE, ISO
MOQ :
1
Price :
$10200~$13000
Brand Name :
CFine
Model Number :
CF-300B
Place of Origin :
Guangdong,China
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
Wooden cases
Automatic Grade :
Automatic
Structure :
Vertical
Material :
Imported Alloy
Capacity :
30(T)
Working Area :
300mm*300mm
Number of Floors :
2 Floors
Cooling Plate :
One for Cooling
Heating Plate :
One for Heating
Total Power :
11kw
Weight :
750kg
Guide Columns :
Four hardened
Control System :
PLC touch screen
Temperature Error :
Small range
Surface Treatment :
Hard chrome plating
Description
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Laboratory Plate Vulcanizing Machine
This advanced laboratory vulcanizing machine features a PLC program color touch screen controller with intuitive man-machine interface operation. The system allows precise parameter setting for pressure, temperature, time, and exhaust cycles while providing real-time display and monitoring of the entire vulcanization process. All operations are automatically completed, resulting in a simple structure that delivers intelligent and efficient performance.
Product Superiority
Heating Plate
Constructed from imported high-temperature resistant steel with surface treatments including deep carbonization and hard chrome plating. Features fast heat transfer, corrosion resistance, high hardness, and no deformation. Built-in heaters and temperature sensors provide high power output, rapid heating, sensitive temperature measurement, and minimal temperature error range.
Cold Conduction Plate
Manufactured from aluminum material with anodized surface treatment for corrosion resistance and fast heat conduction.
Guide Columns
Four hardened and precisely positioned columns with hydraulic cylinders, supported by a thick steel plate base. Equipped with self-lubricating bronze bearings for smooth, noiseless lifting and lowering. Comprehensive safety protection with heavy steel surrounds at the top and rear of the tablet press. Upper layer features steel plate construction with inserted thermocouples positioned near the surface.
Typical Applications
  • Detection of gel (fish eyes), black spots, stains, and other imperfections in raw materials
  • Pressing and sample preparation of raw materials
  • Physical property testing
  • Material research and development
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Technical Specifications
(Custom configurations available upon request.)
Model CF-300B CF-400B CF-500B Remarks
Capacity 30T 30T 30T Working pressure / working area / number of floors / cooling and heating plates can be customized according to customer requirements
Working Area 300mm×300mm 400mm×400mm 500mm×500mm
Number of Floors Two floors Two floors Two floors
Cooling and Heating Plate One for heating
One for cooling		 One for heating
One for cooling		 One for heating
One for cooling
Total Power 11kw 15kw 20kw
Weight 750kg 950kg 1200kg

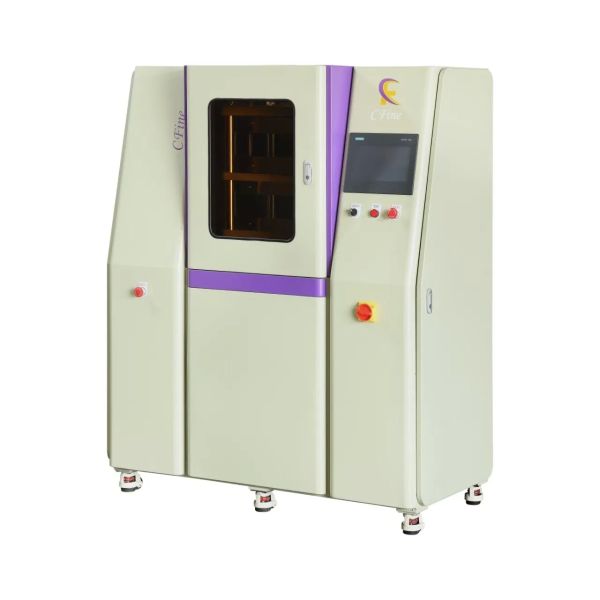

Available Styles
The following styles are available for selection. Custom configurations are supported.
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
After Sales Service
  • Standard Warranty: 12 months or 2,000 operating hours (whichever comes first)
  • Global Support: 24/7 technical assistance and spare parts supply
  • Training: On-site or remote operation/maintenance training
Company Profile
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber

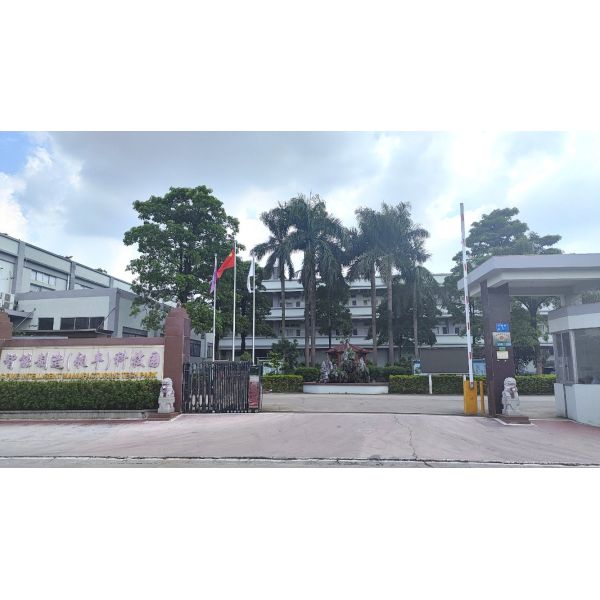

Guangdong CFine Technology Co., Ltd.
Guangdong CFine Technology Co., Ltd. is a specialized manufacturer engaged in designing, R&D, manufacturing, selling, and maintaining plastic, rubber, and powder metallurgy mixing and granulating equipment. Our professional R&D team meets special customer requirements for custom-made machinery. With strong technical capabilities, comprehensive advanced equipment, and a well-trained manufacturing team supported by modern management and efficient after-sales service, our machines are sold worldwide and have earned consistent client appreciation, establishing long-term, stable cooperative relationships.
"Quality first, service uppermost" is our guideline, while "honesty and integrity, innovation contribution" is our principle. CFine is becoming the most professional and influential manufacturer in the industry, with the CFine brand growing in popularity both in China and internationally.
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Why Choose Us?
Company Strength
15 Years OEM & ODM Experience
11.16 Million Registered Capital
10,000m² Plant Area
Certificates of Honor
32 Patent Certificates
A Team of Five Designers
Independent Laboratory
Professional Team
1 to 1 Professional Guidance
24-Hour Customer Service
1 Year Warranty
Production Workshop
15 Years as a Source Factory
30 Days On-Time Delivery
100-Strong Production Team
Custom Lab Plate Vulcanizing Hydraulic Press Machine for Rubber
Frequently Asked Questions
What About The Delivery Date?
  • Payment Term: 50% deposit, 50% before shipment
  • Delivery Term: FOB or Ex-work
  • Delivery Time: 30-70 days after receipt of deposit, depending on machine specifications
What's The Warranty Statement?
Free warranty for normal use for one year. Spare parts are available at competitive prices.
What About CFine After-Sales Service?
  • We arrange engineers to install machinery and train workers for international clients when required
  • A professional team provides comprehensive after-sales problem resolution
  • We supply spare parts to customers at reasonable prices after warranty expiration
  • We continuously update and share new technologies with every customer
