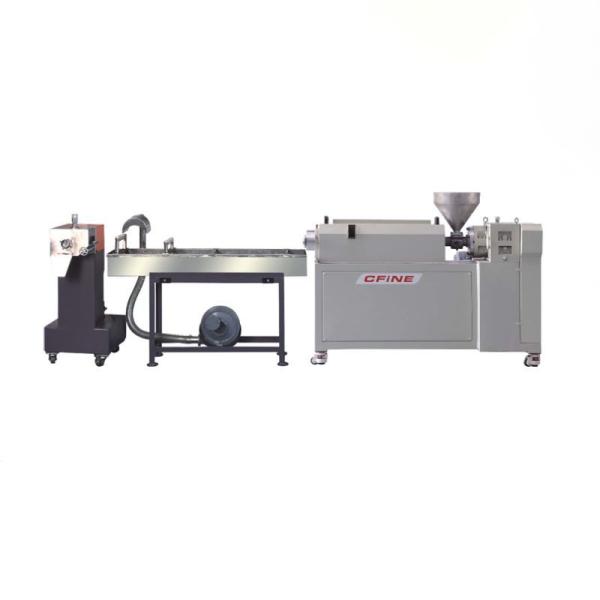

Custom CF-35 Water Rod/Conveyor Pelletizer

Product Description

This machine utilizes a special screw design and various configurations, making it suitable for the production of various plastics for color mixing, modification, and pelletizing, including PC. The screw and barrel are specially treated for wear and corrosion resistance, while offering excellent dispersion, mixing, and plasticizing properties. The exhaust port design removes moisture and volatile gases from the material during production, resulting in more stable and compact pellets, ensuring high-quality, stable, and reliable production.

Gearbox

This product is designed in accordance with the technical specifications of ZBJ19009-88. Gears and shaft components are constructed of high-strength alloy steel, achieving a gear precision of GB10095-88, Grade 6, and a tooth surface hardness of HRC-60. An oversized thrust bearing is installed at the output shaft to withstand the back thrust of the screw. Key standard components, including bearings and oil seals, are all high-quality domestic products. The entire unit boasts a high load capacity, smooth transmission, low noise, and high efficiency.
A. Reduction Ratio: 10:1
B. Hardened ground gears ensure low noise, long life, and reliable operation.
C. Oil-immersed lubrication system

Barrel and Screw

A. Barrel and Screw Material: 38CrMoALA alloy steel, nitrided for 72 hours, polished, and treated for wear resistance. Nitriding layer depth: 0.6-0.8mm, nitriding hardness: screw 780HV, barrel 850HV
B. Screw Diameter: Ø35mm
C. Screw Aspect Ratio: 32:1

Electrical Control

A. Power supply: 3-AC 380V, 50Hz
B. 4-zone temperature control, digital temperature controller
C. Integrated electrical control cabinet and main unit
D. Electrical control components are from Taiwan Shihlin, Omron, and Tende

Pelletizer 1 set

1. Motor: 1HP TECO motor with inverter speed control
2. Rotary blade material: All-steel SKD11
3. Fixed blade material: Tungsten-inlaid steel
4. Feed roller: Wear-resistant PU rubber

After-sales Service

During normal use, non-consumable parts are covered by a one-year warranty. On-site installation guidance and long-term technical support are provided.
Note: All electrical components and motors are imported from Taiwan and other countries.
