Specifications
Brand Name :
CR
Model Number :
LG-662
Certification :
CE,ISO9001, ISO13006, BSCI, CO,COC,CIQ, CCC, PVOC, FSC, SONCAP, SASO,SGS,FTA, TUV, NSF , NFRC/NAMI, 5S Management system Certifications etc
Place of Origin :
Guangdong, China
MOQ :
Any Trail Order ls Welcomed
Price :
$0.80-1.40
Payment Terms :
L/C,T/T,D/A,D/P, Western Union,MoneyGarm,E-Checking etc.
Supply Ability :
Order, In Stock
Delivery Time :
3-7 Working Days
Packaging Details :
Standard Export Strong Packing
Size :
3000mm x 1200mm
Edge Type :
Square Edge
Impact Resistance :
High
Application :
Interior Ceiling, Office Building
Fire Resistance :
Class A
Installation Method :
Suspended Ceiling
Moisture Resistance :
Yes
Surface Finish :
Smooth
Thickness :
9mm
Material :
Stainless Steel, Galvanized Metal Strip
Sound Absorption :
0.45 NRC
After-sale Service :
Online technical support
Project Solution Capability :
Total Solution for Projects
Design Style :
Minimalist
Warranty :
2 Years
Weight :
40-180G/SQM
Alloy Or Not :
Non-Alloy
Secondary Or Not :
Non-secondary
Sample :
Free
Trade Type :
Manufacture ,Export
Type :
Steel Channel
Both surface galvanization :
115g/m2
Items :
Load Channel/ Furring Channel/C Steel Channel/U Steel Channel
Shape :
U shape/ C shape
H.S Code :
73089000
Selling Units :
Single Item
Description

Cheap Factory Wholesale Galvanized Steel Metal Channel Profile Structural Steel Channel for Wall and Ceiling 9 MM Green Health Products

Metal Framing For Drywall Ceiling

1. DESCRIPTION

CR steel channel is made from hot cold-rolled galvanized steel, and we adopt advanced process and technology to produce it. According to customer's requirement, special specification is accepted for OEM.

2. ADVANTAGE

  • Good quality galvanized steel is produced from large and advanced production line, high strength and good flexibility
  • Continuous hot dip galvanizing process, deep zinc thickness, corrosion resistance.
  • Nice and special design on surface, easily to fix the screw
  • High strength framework for gypsum

3. SPECIFICATION

Ceiling Channel Specification
Item Size(mm) Thickness(mm)
Load Channel 38 DU 38×12 1.0 1.2
50 DU 50×15 1.0 1.2
60 DU 60×27 1.2 1.5
Cover Channel 50DC 50×19 0.5 0.6
60DC 60×27 0.6
50 Wall Angle 20×20×30 0.45 0.5
Remark: Special size is accepted according to customer's requirement

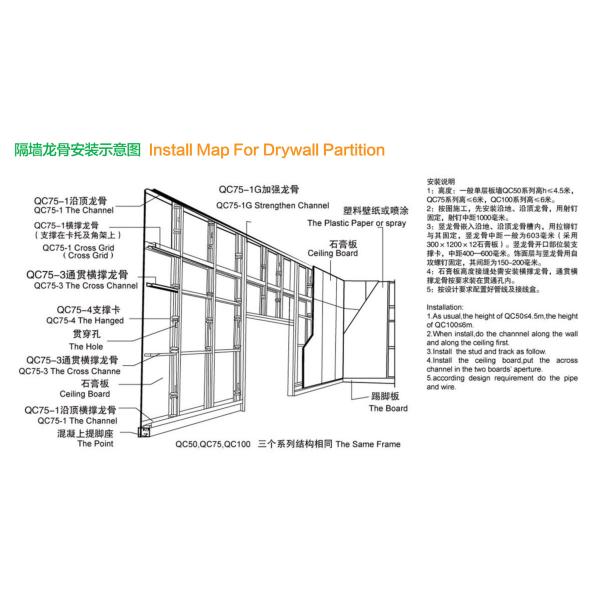

Drywall Channel Specification

Item Size(mm) Thickness(mm)
C Steel Channel (Stud) 50*35/40 0.35-1.2
75*35/40 0.35-1.2
100*35/40 0.35-1.2
U Steel Channel (Runner) 50*40/45 0.35-1.2
75*40/45 0.35-1.2
100*40/45 0.35-1.2
Remark: Special size is accepted according to customer’s requirement

4. TECHNICAL PERFORMANCE

Inspection Item Standard Inspection Value
Appearance No corrosion, no damage, no black speckle and no pock points Pass
Both surface galvanization ≥100g/m² 115g/m²
Load Channel Dimension difference A Dimension A:±0.4mm -0.3——0.2mm
Dimension difference B Dimension B: ±1.0mm -0.5——0.5mm
Cover Channel Dimension difference A Dimension A:±1.0mm -0.4——0.1mm
Dimension difference B Dimension B:±0.4mm -0.3——0.1mm
Side flatness ≤1.5mm/1000mm 0.6mm/1000mm
Underside flatness ≤1.5mm/1000mm 0.5mm/1000mm
Angle difference ≤1°15′ 1° 5′
Load Channel Load test Strengthen flexibility limitation 5.0mm Strengthen flexibility 4.2mm
Remainder distortion limitation2.0mm Remainder distortion1.4mm
Cover Channel Load test Strengthen flexibility limitation10.0mm Strengthen flexibility 8.9mm
Remainder distortion limitation 2.0mm Remainder distortion 1.5mm
Test table above ,load keel is 50*15*1.2mm, cover channel is 50*19*0.5mm

Galvanised Structural Gypsum Metal Stud Steel Frame Profile Customized

Galvanised Structural Gypsum Metal Stud Steel Frame Profile Customized

Customization options

Customized logo (Min. order: 100 pieces)
Customized packaging (Min. order: 100 pieces)
Graphic customization (Min. order: 100 pieces)
