2 To 40 Points 32 Inch Touch Screen Overlay 32768x32768 Resolution
2 To 40 Points 32 Inch Touch Screen Overlay 32768x32768 Resolution
Specifications
Brand Name :
Master Touch
Model Number :
MST-IR-TF-32
Place of Origin :
Suzhou, Jiangsu, China
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000~100000pcs/Month
Delivery Time :
5-8 work days
Packaging Details :
carton
Name :
Infrared Touch Frame
Touch Technology :
IR Technology
Touch Points :
2- 40 (adjustable)
Minimum Touch Object :
5mm
Touch Durability :
Unlimited touch times
Certification :
FC, CE, RoHS
Description

32'' Infrared Frame Touch Screen 100% Light Transmission Without Glass

1. Product Description

The infrared touch frame is a touch device that adopts the principle of infrared touch sensing technology. Master Touch Infrared touch frame (15-23.6’’ with glass; 24-98’’ without glass) has following strengths: highest image clarity and light transmission of all touch technologies; unlimited “touch-life”; impervious to surface scratches; multi-touch (two or more touch points); palm rejection capability.

2. Basic Specification


2.1 Touch Panel

Size 32''
Dimension 19mm width (with frame.without glass);
24-52” with 8.7mm thickness, 55”-110” with 9.5mm thickess
Number of Touch Points 2, 4, 6, 10, 12, 16, 32, 40(optional)
Minimum Touch Object 5mm
Touch Activation Force No minimum touch pressure required
Touch Durability Unlimited
Resolution 32768*32768
Driver Free HID* compatible, up to 40 touch points
Linearity Deviation ±1mm
Fault Tolerance Workable even 75% sensors are damaged
Frames per Second Up to 450 fps
Typical Response Time 3-10ms
Light Transmission 100% without glass
Operating Systems Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android
Protocols HID, TUIO, Flash
Re-development Provide free SDK, support C/C++, C#, Java etc.
Warranty 2 years limited warranty on parts and labor
2.2 Environment Characteristics
Temperature Operating Temperature: -20°C~70°C
Storage Temperature: -40°C~85°C
Humidity Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification FC, CE, RoHS

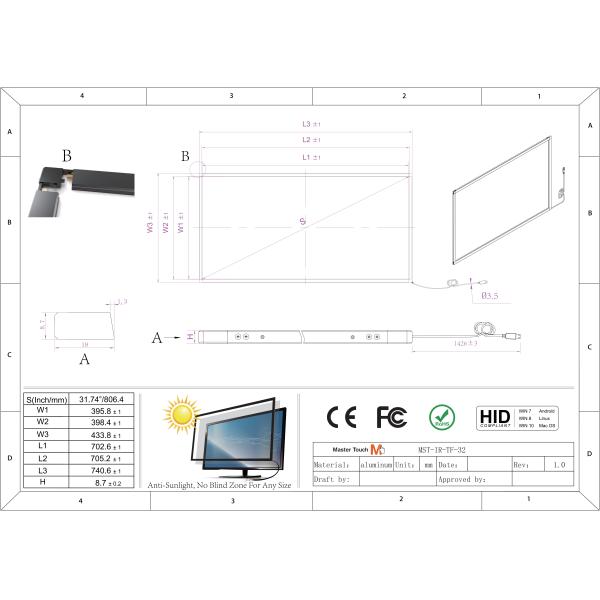

3. Drawing
2 To 40 Points 32 Inch Touch Screen Overlay 32768x32768 Resolution
4. Warranty
*HID compatible is available under Windows, Linux and Android OS. For Windows XP and most other platforms that do not support multi-touch, a mouse HID protocol is provided.
Warranty for MST multi-touch IR Touch Frame series excludes coverage for damage resulting from accident, liquid damage, disassembly, unauthorized service and unauthorized modifications.
5. Applications
2 To 40 Points 32 Inch Touch Screen Overlay 32768x32768 Resolution
6. Details
2 To 40 Points 32 Inch Touch Screen Overlay 32768x32768 Resolution
7. FAQ
2 To 40 Points 32 Inch Touch Screen Overlay 32768x32768 Resolution
