86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
Specifications
Custom size :
83,86,96,106,120,130,150 Inches
Product Dimension :
2045x 1434x 29.3mm
Touch durability :
60 Million Touches
Connecting Port :
USB 2.0 USB 1.1 USB 3.0
CPU :
I3/i5/i7/i9 Optional
Cursor Speed :
180 Points/second
View Angle :
Horizontal 170°, vertical 160°
Board Weight :
17 kg
Touch resolution :
32768*32768
Power Supply :
USB power supply DC 4.7V- 5.2V <1W ( <=300mA at 5V)
Operation System :
Andriod/Windows/Linux/Mac.etc.
Technology :
Infrared
Gross Weight :
25 kg
Overall Size :
2045x 1434 mm
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Positioning Accuracy :
<2mm
Touch Points :
10/20-Point Touch
Packed Size :
2190 x 1480 x 90 mm
Aspect Ratio :
16:10
Brand Name :
MTHGH
Model Number :
XYC-86
Place of Origin :
China
Certification :
CE FCC ROHS ISO14001 ISO45001 ISO9001
Description
86 Inch Interactive Flat Panel, Infrared Interactive Whiteboard 16:10 USB Power Supply
86 Inch Interactive Whiteboard 4:3/16:10 Infrared Touch
Description of IR Interactive Digital Whiteboard

An interactive digital whiteboard, also known as an interactive board or smart board, is a large interactive display board in the form factor of a whiteboard. It can either be a standalone touchscreen computer used independently to perform tasks and operations, or a connectable apparatus used as a touchpad to control computers from a projector.

These boards are used in a variety of settings, including classrooms at all levels of education, corporate board rooms and work groups, training rooms for professional sports coaching, broadcasting studios, and many other applications.

Connecting the Interactive Digital Whiteboard

Connect the Interactive Digital Whiteboard with laptop/PC and projector:

  • Insert one end of the provided USB cable into the USB port of the laptop
  • Insert the other end into the USB port of the Whiteboard
  • Insert one end of HDMI (or VGA) cable into the laptop/PC's HDMI (or VGA) port
  • Insert the other end into the projector's HDMI (or VGA) port. Make sure the projector is set to use its HDMI (or VGA) input

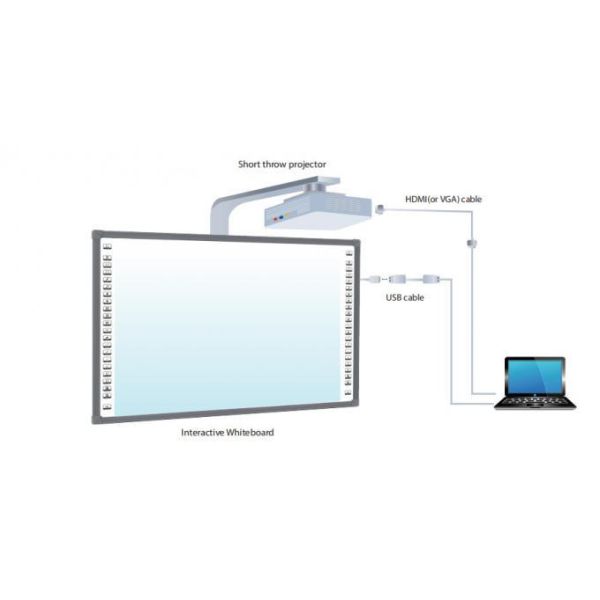

When finished, the installation should look similar to the figure below:

86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
Technical Specifications
Hardware Special Features Gesture recognition
Technology Infrared
Touch Point 10 touch
Cursor Speed 180 dot/s
Display Ratio 16:10
Resolution 32768 x 32768
Positioning Accuracy <2mm
Connecting Port USB 2.0, USB 1.1, USB 3.0
View Angle Horizontal 170°, vertical 160°
Operating System Windows, Linux, Mac, Android
Power Supply USB power supply DC 4.7V-5.2V <1W (<=300mA at 5V)
Working Condition Indoor or Outdoor
Storage Temperature: -30°C~60°C Humidity: 0%~95%
Operation Temperature: -10°C~45°C Humidity: 10%~90%
Installation Wall mounted, cabinets, mobile stand (optional)
Physical Specifications
Model MTHGH - 86B20
Overall Size (mm) 2045 x 1434
Overall Diagonal (inch) 86.7
Aspect Ratio 4:3/16:10
Board Weight (kg) 17
Gross Weight (kg) 25
Product Dimension (mm) 2045 x 1434 x 29.3mm
Packed Size (mm) 2190 x 1480 x 90 mm
Product Photos
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
86 Inch Interactive Whiteboard with 16:10 Aspect Ratio and USB Power Supply
