86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
Specifications
Resolution :
3840*2160
Board Weight :
15 kg
Accuracy :
2mm
Display Ratio :
4:3
Screen Size :
83-150inch
Size :
86 Inches
Writing Color :
White, Black, Green
View Angle :
Horizontal 170°, vertical 160°
Touch Points :
10-40points
Aspect Radio :
16:10, 16:9...
Touch Technology :
Infrared
Touch body :
Finger, Writing Pen Or Other Non-transparent Objects
Power Supply :
USB power supply DC 4.7V- 5.2V <1W ( <=300mA at 5V)
Cursor Speed :
180 dot/s
Operation System :
Andriod/Windows/Linux/Mac.etc.
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Touch resolution :
32768*32768
Product Dimension :
2101x 1680x 30.3mm
Brand Name :
MTHGH
Model Number :
XYC-86
Place of Origin :
China
Certification :
CE FCC ROHS ISO14001 ISO45001 ISO9001
Interface :
USB, VGA, RS232, HDMI
Description
86 Inch Interactive Smart Board - Indoor Outdoor Touch Screen Interactive Whiteboard
86 Inch Interactive Whiteboard 4:3 Without Hotkeys
Description of IR Digital Smart Interactive Whiteboard

A Smart Interactive Whiteboard, also known as an interactive board or smart board, is a large interactive display board in the form factor of a whiteboard. It can function as either a standalone touchscreen computer for independent task performance, or as a connectable apparatus serving as a touchpad to control computers from a projector.

These versatile boards are utilized across various environments including educational classrooms at all levels, corporate boardrooms and work groups, professional sports coaching training rooms, broadcasting studios, and numerous other professional settings.

Connecting The Smart Interactive Whiteboard

To connect the Smart Interactive Whiteboard with your laptop/PC and projector:

  • Insert one end of the provided USB cable into the USB port of your laptop
  • Insert the other end into the USB port of the Whiteboard
  • Insert one end of HDMI (or VGA) cable into the laptop/PC's HDMI (or VGA) port
  • Insert the other end into the projector's HDMI (or VGA) port

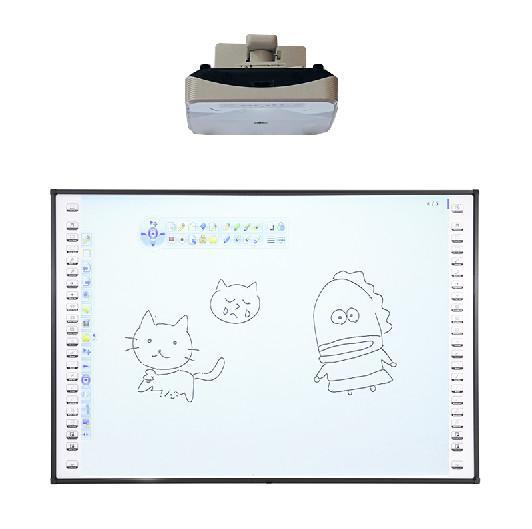

Ensure the projector is set to use its HDMI (or VGA) input. When properly installed, the setup should resemble the configuration shown below:
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
Technical Specifications
Hardware Special Features Gesture recognition
Technology Infrared
Touch Points 10 touch
Cursor Speed 180 dot/s
Display Ratio 4:3
Resolution 32768 x 32768
Positioning Accuracy <2mm
Connecting Port USB 2.0, USB 1.1, USB 3.0
View Angle Horizontal 170°, vertical 160°
Operating System Windows, Linux, Mac, Android
Power Supply USB power supply DC 4.7V-5.2V <1W (<=300mA at 5V)
Working Condition Indoor or Outdoor
Storage Temperature -30°C to 60°C
Storage Humidity 0% to 95%
Operation Temperature -10°C to 45°C
Operation Humidity 10% to 90%
Installation Wall mounted, cabinets, mobile stand (optional)
Physical Specifications
Model MTHGH - 86B20
Overall Size (mm) 2101 x 1680
Overall Diagonal (inch) 86.5
Aspect Ratio 4:3
Board Weight (kg) 15
Gross Weight (kg) 23
Product Dimension (mm) 2101 x 1680 x 30.3
Packed Size (mm) 2250 x 1720 x 90

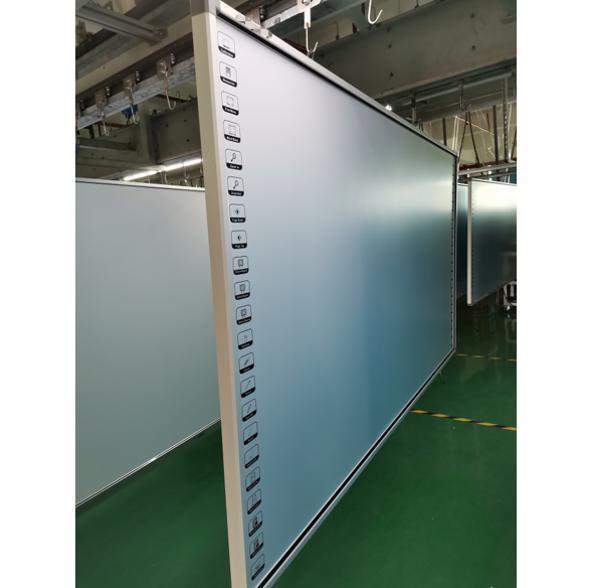

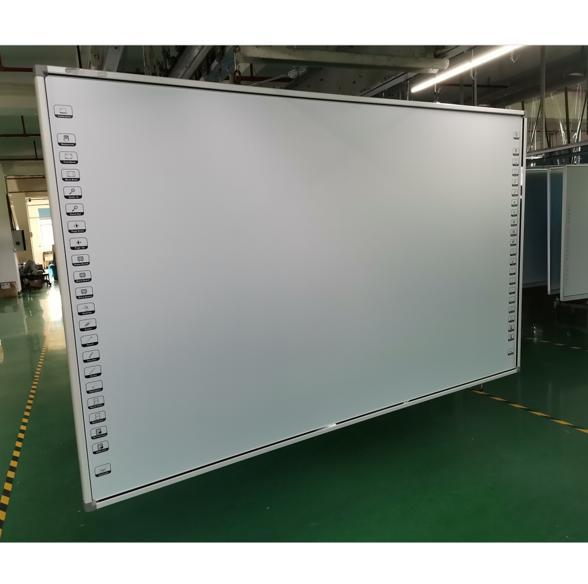

Product Photos
86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference 86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference 86 Inch Interactive Smart Board with Infrared Touch and 4K Resolution for Education and Conference
