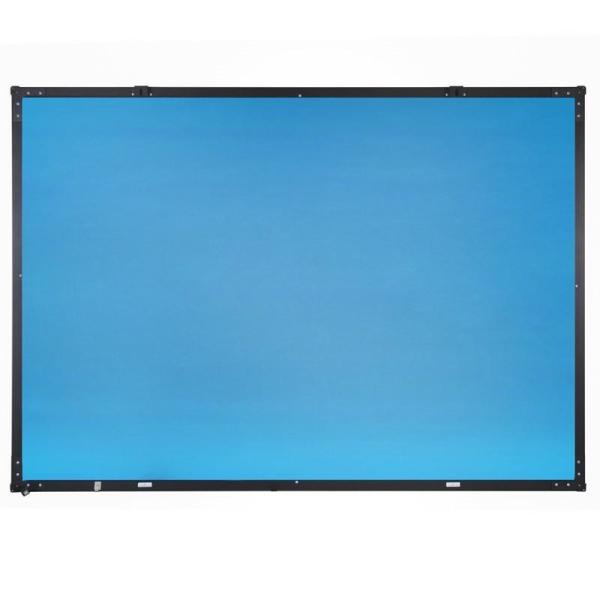

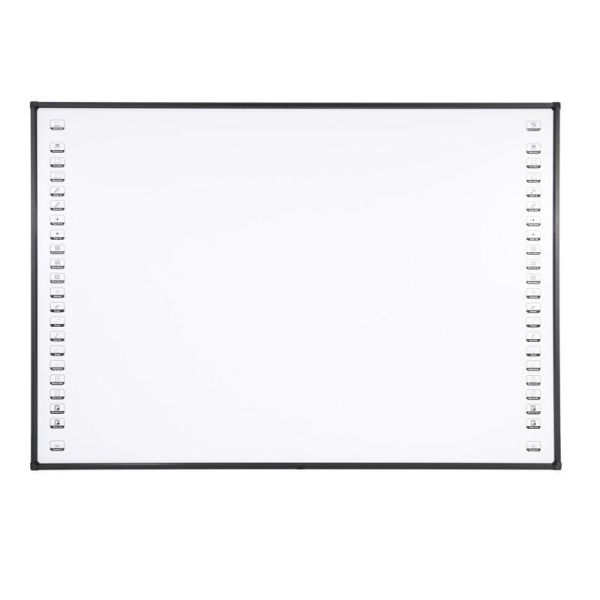

83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
Specifications
Touch Technology :
Infrared
Storage Temperature :
-30°C~60°C
Touch durability :
60 Million Touches
Cursor Speed :
180 Dot /s
Brand Name :
MTHGH
Model Number :
XYC-83
Place of Origin :
China
Certification :
CE FCC ROHS ISO14001 ISO45001 ISO9001
Connecting Port :
USB2.0 USB3.0
Touch Screen :
IR Touch (Support Multi Touch),Infrared Touch
Writing Color :
White, Black, Green
View Angle :
Horizontal 170°, vertical 160°
Touch resolution :
32768*32768
Display ratio :
4:3
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Response time :
Single Point <6ms. Double Point <10ms
Operating System :
Windows, Linux, Mac, Android
Working Condition :
Indoor or Outdoor
Positioning Accuracy :
<2mm
Power Supply :
AC 100-240V, 50/60Hz
Touch Point :
10 Touch Points
Operation Temperature :
-10°C~45°C
Touch body :
Finger, Writing Pen Or Other Non-transparent Objects
Description
83 Inch Infrared Interactive Whiteboard IWB Finger Touch Ceramic Nano Surface Whiteboard
Infrared Interactive Whiteboard Overview

An Infrared Interactive Whiteboard, also known as an interactive board or smart board, is a large interactive display board in the form factor of a whiteboard. It can function as either a standalone touchscreen computer for independent task execution, or as a connectable apparatus serving as a touchpad to control computers from a projector.

These versatile boards are utilized across various environments including educational classrooms at all levels, corporate boardrooms and work groups, professional sports coaching training rooms, broadcasting studios, and numerous other professional settings.

Connection Setup Instructions

To connect the Infrared Interactive Whiteboard with your laptop/PC and projector:

  • Insert one end of the provided USB cable into the USB port of your laptop
  • Insert the other end into the USB port of the Whiteboard
  • Insert one end of HDMI (or VGA) cable into the laptop/PC's HDMI (or VGA) port
  • Insert the other end into the projector's HDMI (or VGA) port, ensuring the projector is set to use its HDMI (or VGA) input

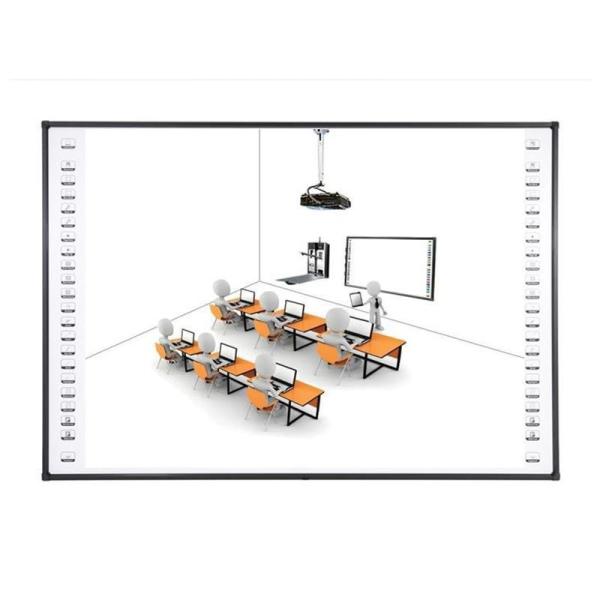

When properly installed, the setup should resemble the configuration shown below:

83 Inch Infrared Interactive Whiteboard with Ceramic Nano Surface and 10 Touch Points
Technical Specifications
Hardware Special Features Gesture recognition
Technology Infrared
Touch Points 10 touch
Cursor Speed 180 dot/s
Display Ratio 4:3
Resolution 32768 x 32768
Positioning Accuracy <2mm
Connecting Port USB 2.0, USB 1.1, USB 3.0
View Angle Horizontal 170°, vertical 160°
Operating System Windows, Linux, Mac, Android
Power Supply USB power supply DC 4.7V-5.2V <1W (<=300mA at 5V)
Working Conditions Indoor or Outdoor
Storage Temperature -30°C to 60°C
Storage Humidity 0% to 95%
Operation Temperature -10°C to 45°C
Operation Humidity 10% to 90%
Installation Options Wall mounted, cabinets, mobile stand (optional)
