Specifications
Model Number :
XYC-49
Brand Name :
XYC
Price :
240$-690$
Control System :
Signworld CMS Software
Display Colors :
16.7M
Streaming Capability :
Yes
Enclosure Color :
Black / Silver / White / Gold
Material :
Cold-rolled steel body, heavy-duty aluminum frame
Display Size :
32,43,50,55,65inch
Resolution :
1920×1080 FHD, 3840×2160 4K UHD
Viewing Angle :
178°
Certification :
CE/FCC/ROHS
Screen Technology :
Digital Signage
System Support :
Android OS / Windows OS
Glass Protection :
4mm explosion-proof tempered glass
Aspect Ratio :
16:9
Touch Sensor :
20-Point PCAP / IR / Non-Touch
Additional features :
Remote Management, Scheduling Software, Multi-screen Support
Operating Systems :
Android OS, Windows OS, Linux, macOS
Packaging Details :
Cardboard Box + Wooden Frame.
CPU :
RK3188 Quad Core, Cortex-A9, 1.6GHz
Supply Ability :
3000 Piece Per Month
Display Mode :
Landscape / Vertical Screen, Optional
Place Of Origin :
China
MOQ :
1 Set
Delivery Time :
6-8 Days
Luminance :
350 cd/m², 500 cd/m²
Description

Commercial Floor Standing Digital Signage & Advertising Kiosks

Empower your B2B AV projects with heavy-duty commercial display hardware. Configurable from 32" to 65", featuring 4K UHD clarity, versatile PCAP/IR touch options, and dual OS architectures for 24/7 public environments.

32" to 65" Displays 4K UHD & Full HD PCAP / IR / Non-Touch Windows & Android Supported Cloud CMS Integration OEM / ODM Ready

Built for Global Commercial AV Integration

Procurement teams across the United States, Europe, the UK, the Middle East, and Latin America demand hardware flexibility. Whether your project blueprints call for an Interactive Directory Kiosk or a secure Advertising Display Kiosk, our core architectural platform delivers stable, high-brightness visual marketing to high-traffic environments without the need for wall-mounting structures.

To support global system integrators and distributors, we categorize this hardware according to your specific software deployment. This chassis functions perfectly as a Digital Signage Totem for hospital wayfinding, an Electronic Menu Board in resort lobbies, a Free Standing Digital Display for transit maps, or a Touch Screen Advertising Kiosk in luxury retail stores.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 1: Floor Standing Digital Signage kiosks delivering 16.7 million color visual fidelity.

Display Formats & Optical Performance

Configurable Screen Sizes

Our Commercial Advertising Kiosk scales to fit your floor plan. Available in 32", 43", 49", 55", and 65" models, you can maintain a unified hardware aesthetic across narrow retail aisles and massive corporate atriums.

Native 4K UHD Clarity

Compact 32" to 49" models feature 1080p FHD, while the 55" and 65" Vertical Advertising Screen formats offer native 4K UHD. With up to 500 cd/m² brightness and a 178° viewing angle, graphics remain vibrant under bright mall lighting.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 2: Form factor scaling from 32" to 65" commercial displays.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 3: Structural differences between Infrared and PCAP touch modules.

Interactive Interfaces & Computing Platforms

A successful Smart Display Totem relies on the correct touch interface and operating system matching the client's software environment.

  • 20-Point PCAP Touch: Capacitive sensors provide a perfectly flat, bezel-free glass surface. Excellent for high-end retail navigation.
  • Infrared (IR) Touch: Offers extreme physical durability for heavy-use public sector deployments, responding to any touch object.
  • Secure Non-Touch: Sealed glass front designed exclusively for automated, uninterruptible commercial broadcasting.
32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 4: Windows OS architecture for custom IT integration.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 5: Cloud CMS managing multi-zone split-screen playback layouts.

Real-World B2B Applications

Versatile Deployment Scenarios

Our Commercial Digital Signage Kiosk network is utilized globally. As a mall advertising display, it showcases 4K retail lookbooks. Functioning as airport digital signage, it broadcasts urgent flight schedules. In hospitality, it operates as vibrant hotel digital signage for menus and event directions.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

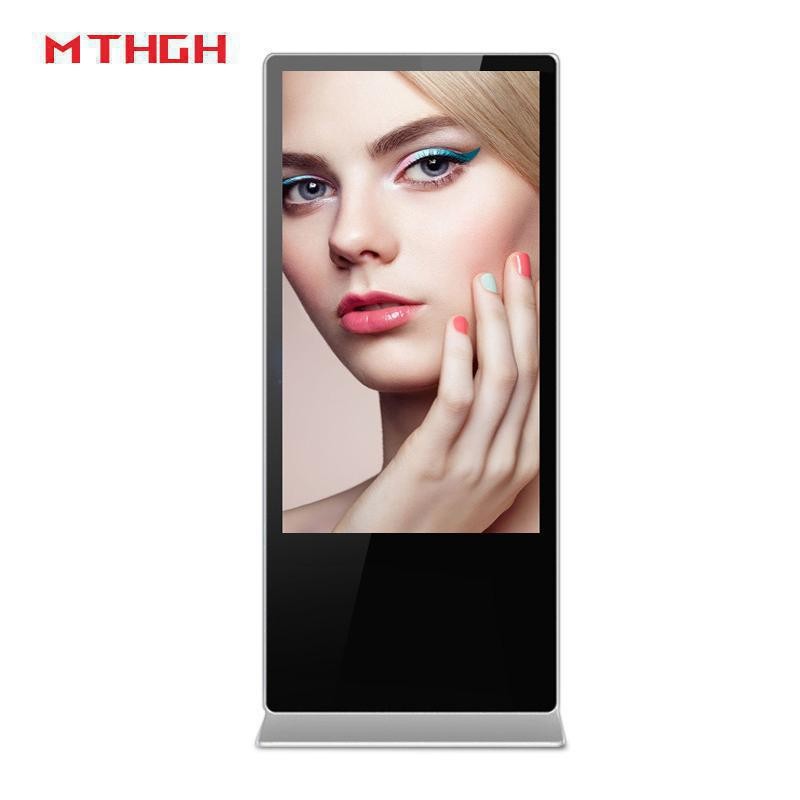

Figure 6: High-contrast retail beauty and fashion advertising.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

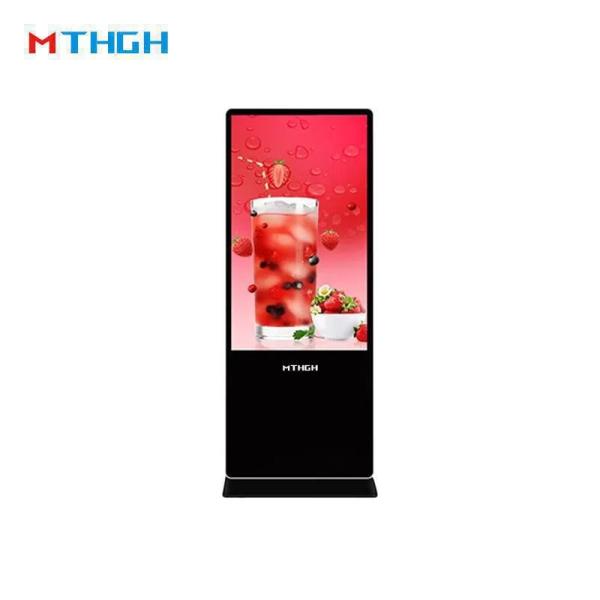

Figure 7: Hospitality beverage promotion acting as an electronic menu board.

Figure 8: Luxury brand visual marketing in a flagship retail store.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 9: The ultra-slim side profile saves valuable floor space.

Chassis Architecture & Structural Views

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

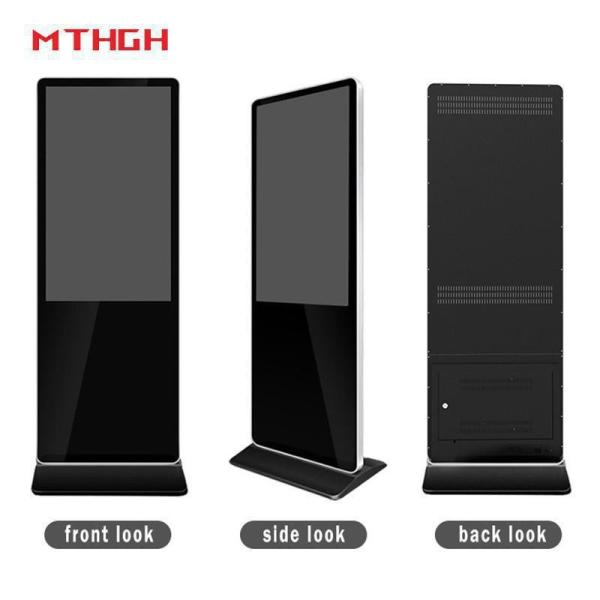

Figure 10: Front, side, and lockable rear access doors.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

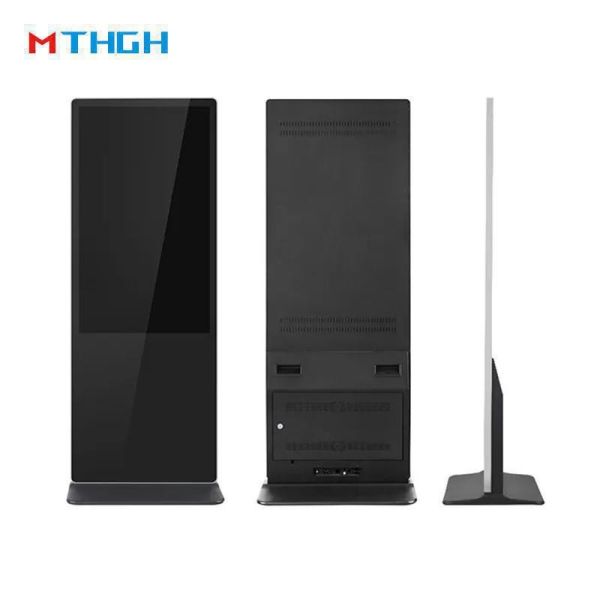

Figure 11: Complete physical perspective views.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 12: Base plate structural dimension blueprint.

Technical Specifications Matrix

Hardware Category Commercial Configuration Parameters
Display Models 32", 43", 49", 55", 65" Floor-Standing Panels
Resolution Full HD (1920×1080) / Ultra HD 4K (3840×2160)
Luminance & Contrast 350 – 500 cd/m² Brightness | 1200:1 Static Contrast Ratio
Durability & Lifespan 4mm explosion-proof tempered glass | 50,000+ hours (24/7 rating)
Touch Modalities 20-Point PCAP Capacitive Touch / Infrared (IR) / Non-Touch Options
Computing Platform Android (RK3568) / Windows-compatible OPS slot expansion
Memory Options 2GB/4GB/8GB RAM | 32GB/64GB/128GB Storage (options vary)
Operating Systems Android, Windows, Linux, macOS (availability depends on configuration)
Network & I/O Connectivity Gigabit Ethernet (RJ45), Dual-band Wi-Fi, USB 2.0/3.0, HDMI, PCIe
Optional OEM Modules AI camera, facial recognition sensor, NFC/IC card reader, thermal printer

OEM Factory Integration & Export Quality

Convert this standard hardware into a Smart Self-Service Terminal. For ODM projects and OEM buyers, we factory-install thermal printers, NFC readers, and AI cameras. The freestanding base plates bolt securely via a simple 3-step installation, allowing rapid deployment.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

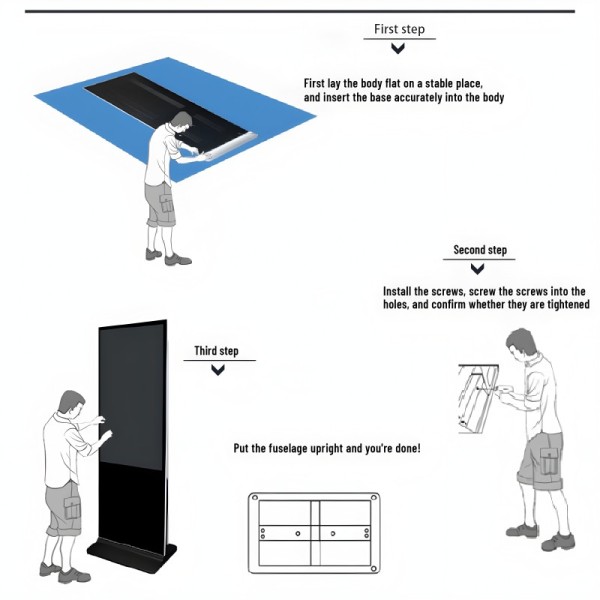

Figure 13: Simple 3-step hardware base assembly.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 14: Direct factory assembly operations.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 15: Strict 5-stage QC ensuring 99.99% product qualification.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 16: Export-grade solid wooden crate freight packaging.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 17: Supplying project contractors worldwide.

32 to 65 Inches Floor Standing Digital Signage with Signworld CMS Software and Remote Management for Effective Communication

Figure 18: Reliable express air and ocean logistics.

Frequently Asked Questions

What screen sizes are available for order?
We supply the hardware in 32", 43", 49", 55", and 65" screen formats, providing perfect scaling options for small retail aisles up to massive transportation terminals.
Is the kiosk a touch screen?
The platform is highly configurable. We offer 20-point PCAP touch, rugged IR touch, and secure non-touch monitor versions based on whether your project requires interaction or passive broadcasting.
What is the difference between PCAP, IR, and non-touch?
PCAP utilizes capacitive sensors behind a flat, bezel-free glass surface for premium smartphone-like aesthetics. IR touch uses infrared light grids for extreme physical durability. Non-touch panels lack interactive sensors entirely.
Does it support Android and Windows?
Yes. The standard configuration operates on an Android platform. The hardware also fully supports Windows-compatible OPS modules, alongside Linux and macOS environments depending on your selected internal board.
Can content be managed remotely?
Absolutely. Our integrated cloud CMS software allows network managers to push media updates, modify split-screen layouts, and schedule operating hours remotely over Wi-Fi or Gigabit Ethernet.
Is it suitable for 24/7 commercial use?
Yes, the industrial-grade LCD cells, commercial power supplies, and internal cooling architecture are officially rated for 50,000+ hours of continuous 24/7 public operation.
