Our Floor Standing Digital Signage is an advanced commercial advertising kiosk designed to transform high-traffic public spaces, retail stores, corporate lobbies, airports, and exhibition centers. Built with an industrial-grade cold-rolled steel sheet metal chassis, aluminum alloy frame, and a front panel covered by a one-piece 4mm tempered explosion-proof glass, this floor standing digital display combines extreme structural durability with modern aesthetics.

Available in versatile screen dimensions—32", 43", 49", 55", and 65"—the standing totem provides Full HD (1920*1080) visual fidelity across standard formats and native Ultra HD 4K (3840*2160) resolution on 55" and 65" models. Delivering 350 to 500 cd/m² direct-lit/side-lit brightness, a 1200:1 contrast ratio, and a 178°/178° full viewing angle, the display ensures vivid 16.7 million color depth rendering under daylight and overhead commercial lighting.

To meet diverse interactive and non-interactive project requirements, our digital signage offers multiple touch system configurations: Projected Capacitive (PCAP) touch with G+G glass-on-glass structure, Infrared (IR) touch, or non-touch display panels. The 20-point multi-touch PCAP system features rapid 6ms response time, zero drift, and high optical transmittance (≥90%), allowing smooth finger gesture navigation, capacitive stylus handwriting, and self-service terminal interaction without light interference.

The system operates on an Android 14 platform powered by an RK3568 Quad-Core Cortex processor (2.0GHz), backed by 2GB/4GB/8GB DDR4 RAM and 32GB/64GB/128GB eMMC internal storage. It comes integrated with a built-in remote CMS advertising publishing system, supporting multi-zone smart split-screen playback (simultaneous video, image, scrolling text, and weather widgets), scheduled power on/off, real-time ad insertion, and network remote management.

The XYC Floor Standing Digital Signage, model XYC-49, is engineered for versatile deployment across diverse commercial and public sectors. Certified with CE, FCC, and RoHS international safety standards, this free-standing totem offers high operational stability across wide AC 100-240V voltage inputs and operating environments from 0℃ to 40℃.

• Retail: Shopping centers, department stores, and flagship brand outlets for dynamic 4K promotional campaigns and seasonal discount announcements
• Corporate: Office lobbies, banking halls, and government reception areas as interactive wayfinding directories and visitor welcome boards
• Transportation: Airports, railway stations, and hotel lobbies for real-time scheduling and self-service information check-ins

XYC provides comprehensive OEM/ODM customization options for global distributors, system integrators, and commercial project procurement. Customization extends to body colors (Black, Silver, White, Gold), custom logo silkscreening, peripheral module integration, and dual OS architecture.

• Body colors: Black, Silver, White, Gold powder-coated finishes
• Custom logo silkscreening and branding
• Peripheral module integration (AI HD cameras, facial recognition sensors, NFC/IC card readers, thermal receipt printers)
• Dual OS architecture (Android 14 or Intel Core i3/i5/i7 Windows OPS modules)

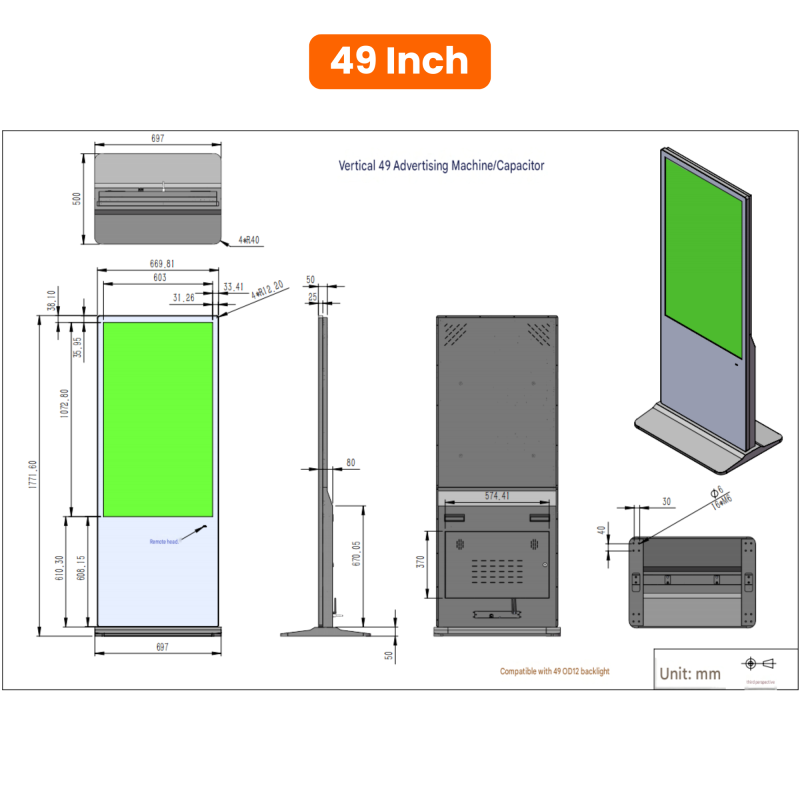

Detailed technical CAD blueprints and dimension measurements are available across all standardized sizes to support precise architectural site planning:

We provide full technical support, remote CMS cloud server debugging, software firmware updates, and hardware maintenance guidance. Our automated Shenzhen factory facility maintains a monthly capacity of 3,000 units, supporting single-unit evaluation orders and large-scale enterprise deployments alike.

Every manufactured kiosk undergoes mandatory 48-hour continuous aging testing, high-voltage insulation safety checks, and touch calibration before final packaging. All hardware is covered by a one-year full machine warranty with spare component replacement support.

Each Floor Standing Digital Signage unit is wrapped in anti-static protective film, cushioned with high-density shockproof pearl cotton foam corner guards, and sealed inside a heavy double-walled corrugated carton.

For international ocean freight, air express, and container shipping, cartons are enclosed in solid wooden crate frames to prevent impact, vibration, or compression damage. Complete shipment documentation (CE, FCC, RoHS certificates, customs clearance invoices, keys, AC power cords, quick start guides) is enclosed. Standard production lead time is 6-8 working days.
