46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising
46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising
46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising
46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising
46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising
46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising
Specifications
Supply Ability :
10000 Piece
Place of Origin :
China
Brand Name :
MTHGH
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Delivery Time :
7-10 Work Days
Payment Terms :
L/C,T/T,Western Union
Contrast Ratio :
3500:1(typ.)
Working Temperature :
0~50(℃)
Perspective :
178*178
Backlight System :
WLED
Response Time :
≤ 6ms
Resolution :
3840*2160
Viewing Angle :
178° * 178°(H * V)
Power Supply :
AC110~260V
Aspect Ratio :
16 : 9
Physical Seams :
3.5mm
Brightness :
500cd/m²
Net Weight :
26(kg/unit)
Certification :
CE FCC
Light Source :
LED
Size :
46"
Signal Support :
DP/DVI/HDMI/VGA/AV/YPBPR
Maximum Power :
≤ 260(W)
Panel Dimension :
1024X578(WxH)mm
Model Number :
XYC-46
Refresh Rate :
60 Hz
Description
46 inch Remote Control LCD Video Wall Display Panels For Outdoor Advertising
Product Overview

DID Narrow Bezel Splicing LCD Video Wall with integrated video wall controller designed for indoor applications. MTHGH ultra narrow bezel 46 inch LCD video wall system ideal for large advertising displays and professional installations.

Application Areas
  • Public Places: Subways, airports, bookstores, parks, exhibition halls, gymnasiums, museums
  • Leisure: Cinemas, gyms, resorts, clubs, rooms, bars, Internet cafes, beauty salons, golf courses
  • Institutions: Banks, corporate offices, pawn shops
  • Commercial: Jewelry stores, large shopping malls, chain franchise stores, hypermarkets, specialty stores, star hotels, restaurants, travel agencies, pharmacies
  • Public Utilities: Hospitals, schools, telecommunications, post offices
  • Real Estate: Apartments, villas, office buildings, commercial buildings, model houses, sales offices
Package Components
Item No. Components Descriptions
1 46" XYC 3.5mm Bezel 500nits brightness, WLED Backlit, 3840*2160 resolution, with 1080P HDMI input
2 System Controller 1 in 16 output HDMI splitter
3 Bracket POP out bracket for 46" LCD video wall
4 Standard Accessories English Manual, IR Controller, Power Cables, RJ45 Cables, RS232-RJ45 Connector
5 Packing 4/5 screens in 1 wooden case
Panel Specifications
Display Technology Original LCD screen
Size Customizable 46 Inch customizable 49", 55", 65", 75"
Panel Dimension 1024×578 (W×H) mm
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 3840×2160
Backlight System WLED
Luminance 500 nits cd/m²
Contrast 3500:1 typ
Viewing Angle 178° × 178° (H × V)
Display Colors 8 Bit, 16.7 M
Refresh Rate 60 Hz
Response Time ≤ 6ms
Life > 60,000 hours
MTBF > 100,000 hours
Surface Anti-glare
Standby Power Consumption < 3 W
Maximum Power Consumption ≤ 260 W
Power Supply AC 100~240 V 50/60 Hz
Cooling Low noise fans
Working Time Capacity 7×24×365 hours
Working Temperature 0~50 ℃
Working Humidity 85% non-condensing
Storage Temperature -20~60 ℃ or -4~140 ℉
Storage Humidity 85% non-condensing
Net Weight 26 kg/unit
Signal Inputs & Outputs

1080P HDMI input daisy chain board with comprehensive connectivity options:

DVI-I DUAL LINK 1 Port
HDMI input 4K 1 Port
VGA input 1 Port
RS232 IN 1 Port
RS232 OUT 2 Ports
IR IN 1 Port
AC IN AC100V~240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote & Software Control
Menu Language English
Vertical/Horizontal Display Supported

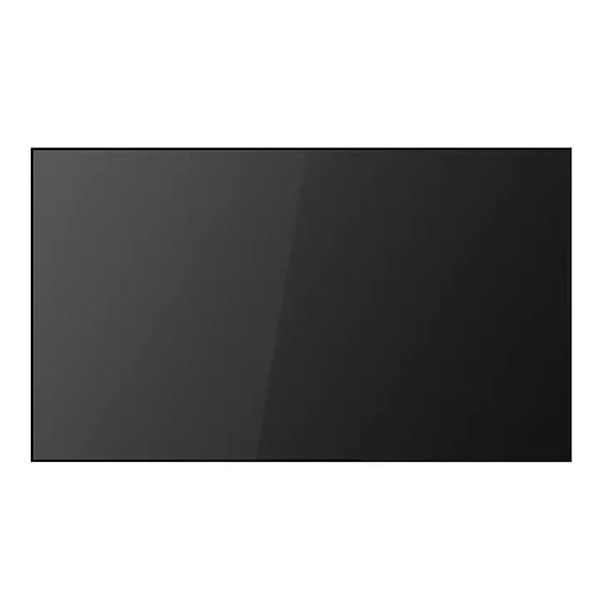

Product Images
46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising 46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising 46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising 46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising 46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising 46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising 46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising 46 Inch LCD Video Wall with 500cd/m² Brightness and 3.5mm Bezel for Outdoor Advertising
