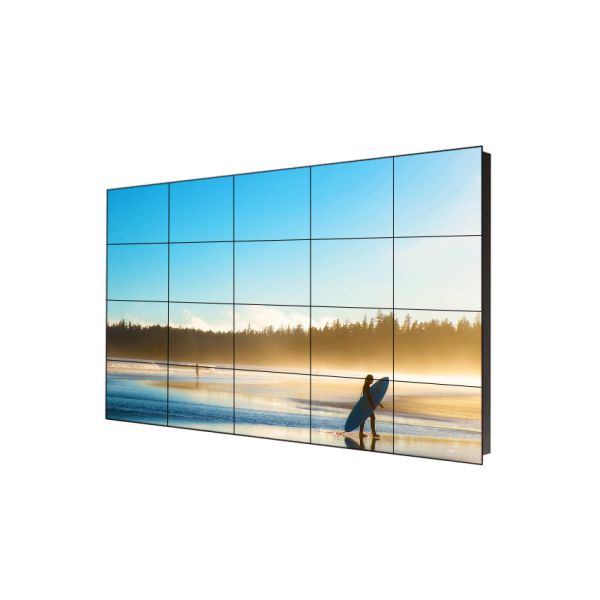

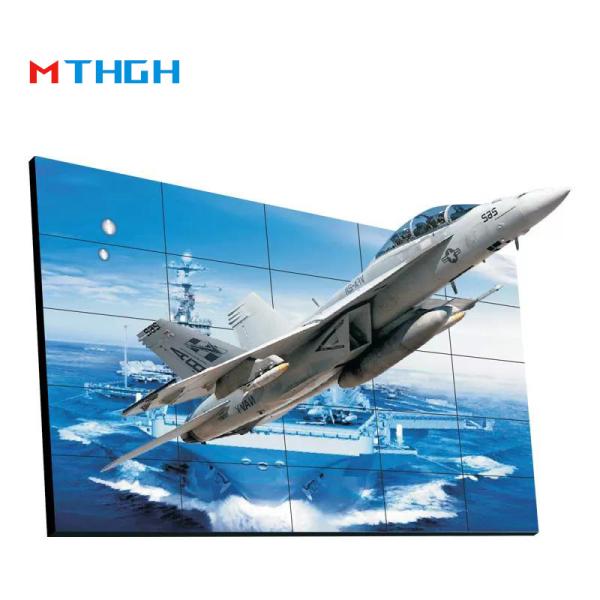

75 Inch LCD Splicing Screen with 3.5mm Seams and 500cd/m² Brightness for Video Wall Applications
75 Inch LCD Splicing Screen with 3.5mm Seams and 500cd/m² Brightness for Video Wall Applications
75 Inch LCD Splicing Screen with 3.5mm Seams and 500cd/m² Brightness for Video Wall Applications
75 Inch LCD Splicing Screen with 3.5mm Seams and 500cd/m² Brightness for Video Wall Applications
Specifications
Input :
BNC/VGA/DVI/HDMI
Standby Power :
<3W
Viewing Angle :
H178°xV178°
Operating Temperature :
0~50℃
Input Control :
50,000 Hours
Response Time :
4 ms
Panel :
ADS Panel
Visible Area :
1649.66(H)×927.93(V)
Brightness :
450cd/m² or 500cd/m²
Aspect Ratio :
16:9
Physical Seams :
3.5mm
Power Supply :
AC110V~260V
Refresh Rate :
60 Hz
Panel Dimension :
1024*578mm
Light Source :
LED
Brand Name :
MTHGH
Model Number :
XYC-75
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Resolution :
3840*2160 | 1920*1080
Max Power :
<=260W
Certification :
CE FCC
Contrast :
3500:1
Description
4K 75 Inch Video Splicing Wall Splicing Screen 1080p HD Monitor Panel With Software
Big Advertising Screen with 178°×178° Viewing Angle & YPBPR Signal Support

MTHGH ultra narrow bezel 75 inch LCD video wall designed for high-impact advertising and professional display applications.

Application Scenarios
  • Control rooms
  • Business buildings
  • Restaurants
  • Conference rooms
  • Sales offices
  • Clothing stores
  • Technology exhibition halls
  • Traffic control
  • Shopping malls
Package Components
Item No. Components Descriptions
01 75" 3.5mm Bezel 500 nits brightness, WLED Backlit, 1920×1080 Resolution, with 1080P HDMI input
02 System Controller 1 in 16 output HDMI splitter
03 Bracket POP out bracket for 46" LCD video wall
04 Standard Accessories English Manual, IR Controller, Power Cables, RJ45 Cables, RS232-RJ45 Connector
05 Packing 4/5 screens in 1 wooden case
Panel Specifications
LCD Technology Original Samsung DID LCD
Active Screen Diagonal 75" INCH
Panel Dimension (W×H) 1024×578mm
Total Bezel Width 3.5 mm
Aspect Ratio 16:9
Physical Resolution 1920×1080
Backlight System WLED
Luminance (nits) 500 cd/m²
Contrast (typ) 3500:1
Viewing Angle H 178° | V 178°
Display Colors 8Bit, 16.7 M
Refresh Rate 60 Hz
Response Time ≤6ms
Life (hrs) >50,000 hours
MTBF >100,000 hours
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption ≤260W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Working Time Capacity 7×24×365 hours
Working Temperature 0℃~50℃
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Net Weight 26kg/unit
Signal Inputs & Outputs
DVI-I DUAL LINK 1
HDMI input 2K 1
VGA input 1
RS232 IN 1
RS232 OUT 2
IR IN 1
AC IN AC100V-240V
Additional Features
Color System Support PAL/NTSC/SECAM
Control Type IR Remote & Software Control
Menu Language English OR Chinese
Vertical/Horizontal Display Support
