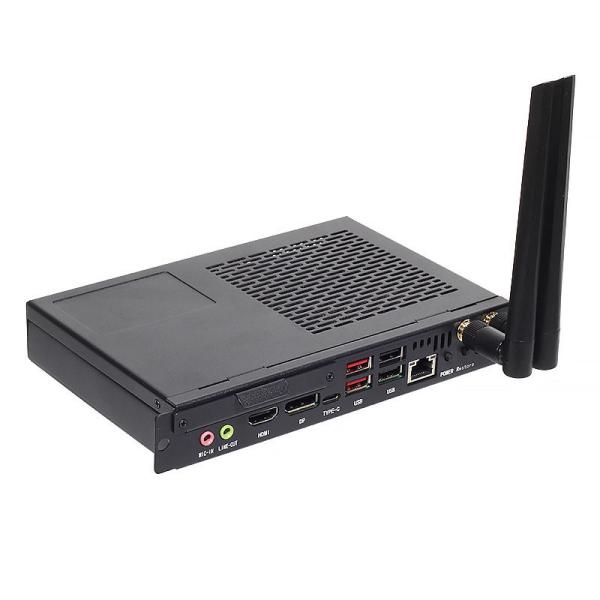

12th Generation Intel Core i5 OPS PC Module with 16GB RAM and 128GB SSD for Digital Signage
12th Generation Intel Core i5 OPS PC Module with 16GB RAM and 128GB SSD for Digital Signage
Specifications
Output Current :
4.74A
Processor :
Intel Core I3/i5/i7
Chipset :
Intel H81/Q87/B85/H110
Power Supply :
External
Dimension :
190mm X 190mm X 42mm
Material :
Aluminum
Display :
1 X HD-MI, 1 X VGA
Brand Name :
MTHGH
Place of Origin :
China
MOQ :
1 Set
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Input Frequency :
50/60Hz
Memory :
2 X DDR3L SO-DIMM 1333/1600MHz, Up To 16GB
Storage :
1 X 2.5" SATA HDD/SSD, 1 X MSATA
Storage Temperature :
-40-80℃
Input Voltage :
100-240V
Network :
2 X Intel I210AT Gigabit Ethernet
Model Number :
XYC
Payment Terms :
L/C,T/T,Western Union
Humidity :
10% - 95% @40°C non-condensing
Audio :
Realtek ALC662 6-channel HD Audio
Certification :
CE FCC
Output Power :
90W
Operating Temperature :
0-45℃
Price :
Negotiable
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Output Voltage :
19V
Description

I5 16GB 128GB SSD OPS PC Module | Smart Compact 12th Generation

Engineered for extreme embedded flexibility, this high-performance computing node is built on an advanced 12th Generation architecture. Configured natively with a massive 16GB RAM and an ultra-fast 128GB SSD payload for demanding B2B digital signage applications.

Intel Core i5 Output Windows / Linux / Mac OS 0°C~60°C Thermals 1.2kg Ultra-Light

Compact Form Factor Integration

External Chassis
190 x 190mm
Standard Drop-In Slot
Hardware Depth
42mm
Slim Profile
Net Weight
1.2 kg
Lightweight Metal

Embedded Processing Power

Powered by the resilient Intel H81/Q87/B85/H110 chipset framework, this smart slot PC easily drives advanced digital signage, kiosks, POS systems, and retail solutions without bottlenecking.

Maximum bandwidth is achieved via 2 x DDR3L SO-DIMM 1333/1600MHz channels alongside hybrid storage expanding across 1 x 2.5" SATA HDD/SSD and 1 x mSATA interfaces.

Commercial Application Scope

This highly integrated ops slot pc serves as the central brain for commercial deployments. Equipped with 2 x Intel I210AT Gigabit Ethernet ports, it ensures uninterrupted connectivity and robust remote access capabilities for secure embedded computing tasks.

  • Interactive Digital Signage & Smartboards
  • Point of Sale (POS) Systems & Retail
  • Industrial Control & Thin Clients
  • High-Security Surveillance Systems

System Capacity Thresholds

Configured RAM16GB

Storage Drive128GB SSD

Thermal Ceiling60°C

Power Supply12V DC-in

Inquire About B2B Bulk Procurement

12th Generation Intel Core i5 OPS PC Module with 16GB RAM and 128GB SSD for Digital Signage

Extensive I/O Connectivity

USB 3.0 4 x Ports
USB 2.0 4 x Ports
COM Port 2 x Ports
LPT Port 1 x Port
Gigabit LAN 2 x Intel I210AT
Display Out 1 x HDMI, 1 x VGA
Audio Output Realtek ALC662
Commercial Designation OPS PC Module (Smart Compact)
Processor Series Intel Core i3/i5/i7 (System Configured: i5)
System Architecture 12th Generation / Intel H81/Q87/B85/H110 Chipset
Motherboard Memory 2 x DDR3L SO-DIMM 1333/1600MHz, Up to 16GB (Configured: 16GB)
Storage Interfaces 1 x 2.5" SATA HDD/SSD, 1 x mSATA (Configured: 128GB SSD)
Internal Expansion 1 x Mini-PCIe, 1 x mSATA
Network Controller 2 x Intel I210AT Gigabit Ethernet
Physical Dimensions 190mm x 190mm x 42mm
Total Net Weight 1.2kg
Operating Temperature 0°C~60°C

Secure Packaging & Shipping Process

Phase 01

Hardware Verification and final QC checks.

Phase 02

Protected securely using custom Foam Inserts.

Phase 03

Wrapped with additional Bubble Wrap shielding.

Phase 04

Sealed in a Custom Box and shipped via trusted carriers.

B2B Integration FAQ

What operating systems are supported by this module?
The hardware is extremely versatile. The OPS PC Module natively supports multiple operating systems including Windows, Linux, and Mac OS, allowing for seamless integration into almost any IT environment.
Does this hardware support remote IT access?
Yes, the module is equipped with 2 x Intel I210AT Gigabit Ethernet ports and explicitly supports remote access, allowing secure PC management and troubleshooting from anywhere, which lowers the total cost of ownership.
What post-deployment support is included?
We provide comprehensive technical support and services. Our technical support team is available 24/7 to assist with product queries, offering remote access support for hardware/software problems, alongside regular maintenance and repair services.

Global Certifications

12th Generation Intel Core i5 OPS PC Module with 16GB RAM and 128GB SSD for Digital Signage
