SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
Specifications
Brightness :
4500cd/m2
Anti-collision design :
Corner covers and bottom
Module resolution :
256X256 or 192X192 or 168X168/336 or 128X128/256 or 104X104/208
Load capacity :
500 kg
Module support :
20 modules
Point spacing :
1.9/2.6/3.9/3.9/4.8
Heat dissipation :
Dragon-shaped structure
Pixel density :
262,144 or 147, 56
Material :
Die-cast magnesium/aluminum
LED Package Size :
SMD1415
Power consumption :
450/150 W/m2
Color gamut :
DCI-P3
Maintenance type :
Front and rear two-way
Place of Origin :
China
Curvature adjustment :
±6 degrees
Protection level :
IP65
Refresh frequency :
3840Hz
Anti-static :
Yes
Brand Name :
MTHGH
Model Number :
XYC
Certification :
CE FCC
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Module size :
500x500mm
Description

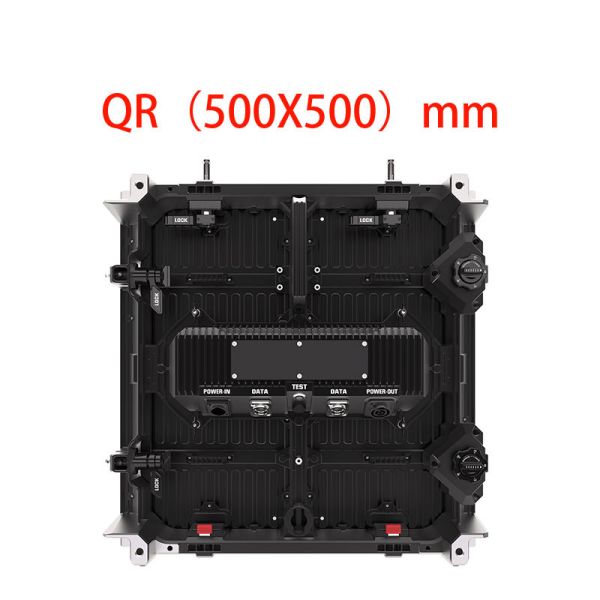

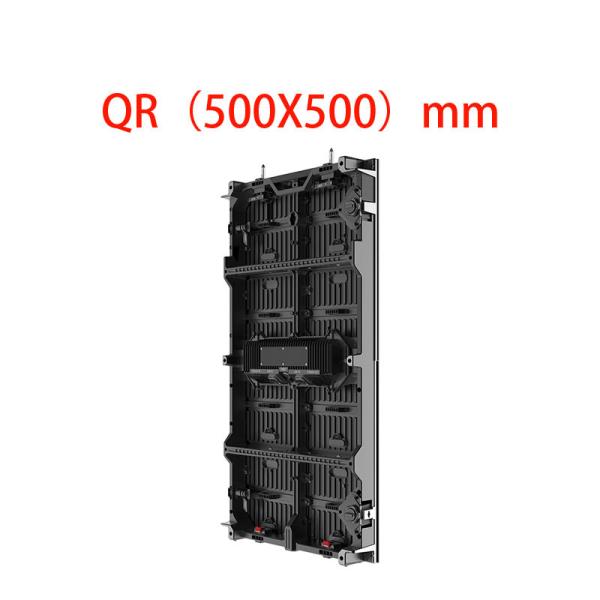

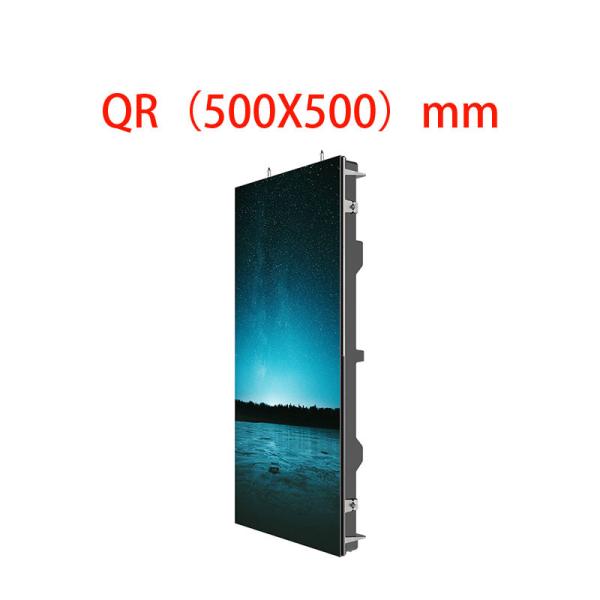

SMD1415 LED Interactive Whiteboard Outdoor Display QR 500x500mm
LED outdoor QR series (500×500mm)
Outdoor small spacing LED display
SMD1415 LED Interactive Whiteboard 500x500mm with 3840Hz Refresh Frequency and 4500cd/m2 Brightness
Super flexible • Suitable for various occasions • Outdoor fixed installation • Outdoor rental • Indoor rental
Double Color Blessing: Movie-Level Color Performance
  • DCI-P3 color gamut with HDR dynamic detail configuration
  • Rich color detail levels and dynamic range for more realistic, deeper performance with fuller colors and vivid imagery
  • High-brightness outdoor display while ensuring ultra-high contrast and clarity, eliminating cross-light interference
International Certification & Electromagnetic Compatibility
  • Product Class A conduction and radiation inspection standards, passed international export certification
  • Industrial-grade standards with high anti-electromagnetic interference performance
  • Effectively resists electromagnetic interference from in-ear headphones, wireless microphones, and communication transmission
  • Compatible with well-known display systems and comprehensive international after-sales services
Quick Installation & Flexible Configuration
  • 1:1/1:2 module ratio for quick installation
  • High flatness light panel with seamless splicing
  • Two cabinet sizes: 500×500mm and 500×1000mm with flexible size matching
  • Multiple sizes of 150 for easy counting and quick assembly
  • Integrated hoisting beam and seat mounting beam with hand-made knob parts replacing screws
Transportation & Installation Features
  • Integrated positioning pin and quick lock for faster installation
  • Chain-stacked transport vehicles for fast and reliable transportation
Advanced Thermal Management
  • Rear system box adopts dragon-shaped structure design for increased area heat dissipation performance
Customizable Curvature & Structural Design
  • Independently developed patented structural design
  • Adjustable inner and outer curvature clamps (up to ±6 degrees)
  • Can meet 90° angle installation scenarios
Maintenance & Protection Features
  • Front-mounted magnetic module for front and rear two-way maintenance
  • Facilitates on-site after-sales response with integrated quick maintenance
  • Corner covers and bottom anti-collision design
  • IP65 protection rating: completely prevents dust entry and protects against water jets, sprays, splashes, and moisture from any angle
  • Anti-collision and anti-static protection
Robust Construction & Load Capacity
  • High-precision die-cast magnesium/aluminum construction
  • Single row supports 20 modules for hoisting and seat-mounting installation methods
  • Hoisting structure supports up to 500 kg load capacity
Flexible Application Options
  • Multiple indoor and outdoor point spacing options available
  • Adaptable to hundreds of scenarios with thousands of presentation effects
  • Suitable for immersive XR, naked-eye 3D and other application solutions
Application Scenarios
Large-scale event sites
Immersive XR applications
Naked-eye 3D displays
Opera houses
Churches
Program studios
Large lecture halls
Shopping mall complexes
Medical beauty facilities
Sports events
E-sports venues
