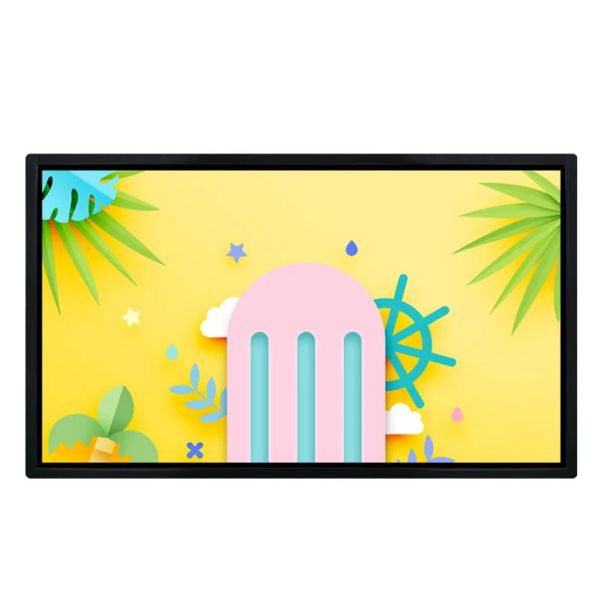

65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
Specifications
Brightness :
250 - 500 cd/m²
Operating temperature :
-10°C ~ 60°C
Storage :
eMMC 16GB / 120GB SSD
Dynamic contrast :
≥5000:1
Power consumption :
60 - 250W
Viewing Angle :
89°(R/L/U/D)
Life time :
100,000h
Aspect ratio :
16:9
CPU :
RK3568, Quad-Core, 2.0GHz
Power supply :
AC 100 - 240V
Resolution :
3840*2160 (HD)
RAM :
DDR 2GB
ROM :
eMMC 16GB
Panel Size :
21.5/23.6/24/27/32/43/49/55/65
Operating humidity :
5% ~ 90% RH
Color depth :
8biit, 16.7M
Color gamut :
99% sRGB
Brand Name :
MTHGH
Memory :
DDR 2GB / DDR3 4GB
Model Number :
XYC65
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Description

Professional Grade 3840 × 2160 FHD RK3568 / Intel i3 100,000 Hrs Lifetime
65 Inch Wall Mounted LCD Display 2K FHD Advertising Digital Signage

Indoor Professional Advertising Display with 250-500 cd/m² Brightness, 99% sRGB Color Gamut & Dual System Configurations

65"
65 Inch Base 8 Modular Scale Sizes
UHD
3840 × 2160 High Resolution Display
89°
89° (R/L/U/D) Wide Viewing Matrix
100K
100,000 Hours Extended Panel Lifetime
Available Screen Size Range 8 Modular Scale Sizes

21.5"

23.6"

27"

32"

43"

49"

55"

65"
Product Overview & Display Optics

65 inch wall mounted indoor LCD display with 2K FHD resolution, designed for professional advertising and digital signage applications. This display engineering delivers vivid chromaticity depth (8-bit, 16.7M colors) and 99% sRGB color gamut coverage.

Professional Performance: Featuring a robust 100,000-hour extended operating lifetime, dynamic contrast ratio ≥5000:1, and 250-500 cd/m² brightness, this wall-mounted display guarantees superior visual impact for corporate lobbies, retail venues, and public broadcasting hubs.

65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising 65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
Hardware Anatomy & Architecture

Engineered for versatile deployment, the system supports dual-platform computing configurations (Android & PC) housed within a robust wall-mounted chassis:

01 Professional LCD Panel

3840 × 2160 FHD resolution, 16:9 aspect ratio, 89° viewing angle, and 99% sRGB color gamut.

02 Dual System Processing Hub

Configurable with RK3568 Android board or Intel Core i3 PC computing hardware.

03 Networking & I/O Array

Gigabit Ethernet (RJ45), high-speed WiFi, HDMI, and multiple USB interfaces.

04 Enclosure & Power Module

AC 100-240V wide-voltage power supply housed in a professional Black/Silver chassis.

LCD Screen Specifications
01
High-Definition Panel

3840 × 2160 FHD resolution with 16:9 aspect ratio and 250-500 cd/m² adjustable brightness.

02
Color Accuracy

8-bit chromaticity depth supporting 16.7M colors and 99% sRGB professional color gamut.

03
Wide Viewing Matrix

89° viewing angle across Right, Left, Up, and Down directions with ≥5000:1 dynamic contrast.

04
Extended Durability

Industrial D-LED backlight engineering rated for 100,000 hours of continuous operation.

Screen Size 21.5 / 23.6 / 27 / 32 / 43 / 49 / 55 / 65 inches
Resolution 3840 × 2160 (FHD)
Aspect Ratio 16:9
Brightness 250-500 cd/m²
Viewing Angle 89° (R/L/U/D)
Dynamic Contrast ≥5000:1
Color Depth 8 bit, 16.7M colors
Color Gamut 99% sRGB
Lifetime 100,000 hours
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising 65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
System Configuration & Dual-Platform Options

Choose between high-efficiency Android processing or high-performance Intel PC computing architectures:


RK3568 Quad-Core Android System Hub (2.0GHz)

Intel Core i3 PC System Hub (2.1GHz)

1000M Ethernet Gigabit RJ45 Network Port
Android System Configuration
CPU: RK3568, Quad-Core, 2.0GHz
RAM: DDR 2GB
ROM: eMMC 16GB
Cable Network: RJ45×1, support 10/100/1000M Ethernet
Wireless Network: 2.4GHz WiFi, support IEEE 802.11 b/g/n
Interfaces: HDMI×1, USB2.0×4, USB3.0×2, Audio, GPIO, TTL, I2C
PC System Configuration
CPU: Intel Core I3-2310M, Dual-core, 2.1GHz
Memory: 4GB
Storage: 128GB
Cable Network: RJ45×1, support 10/100/1000M Ethernet
Wireless Network: 2.4GHz & 5GHz WiFi, support IEEE 802.11 a/b/g/n/ac
Interfaces: HDMI×1, VGA×1, USB2.0×2, USB3.0×2, Audio
Connectivity & Port Identification

Equipped with comprehensive interface arrays supporting high-speed digital transmission and peripheral integration:

Verified Hardware Interface Array (Android & PC Specs)

HDMI Port

VGA Port

USB 2.0 / 3.0

Gigabit RJ45

Audio & GPIO
Installation Configurations

Engineered for clean and secure mounting across diverse professional environments:

WALL
Wall-Mounted Installation

Space-saving architectural mount suitable for indoor concourses and corporate lobbies.

PRO
Professional Advertising

Optimized for continuous 24/7 digital broadcasting and commercial publishing.

65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
Additional Information & Environmental Limits
Accessories: AC power cable / technical manual / quality certification
Operating Systems: Windows / Ubuntu / Android
Body Color: Black / Silver
Power Supply: AC 100 - 240V
Power Consumption: 60 - 250W
Operating Temperature: -10°C ~ 60°C
Operating Humidity: 5% ~ 90% RH
Physical Parameters
Screen Size Outline Dimension (W×H×D mm) Package Dimension (W×H×D mm) Gross Weight (kg)
21.5" 523×314×62 620×420×130 8
23.6" 584×356×62 620×450×130 10
27" 655×393×62 730×490×135 12
32" 758×452×70 840×560×155 15
43" 1011×599×82 1080×710×180 35
49" 1141×672×82 1260×800×180 43
55" 1285×756×86 1360×860×180 52
65" 1504×882×86 1590×990×180 60
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
Environment Transformation

Transforming standard public and commercial venues into high-engagement visual broadcast hubs:

Static Space
Traditional Wall Surface

Static signage with slow content updates and limited visual engagement for visitors.

Digital Deployment
Dynamic Digital Signage

High-definition 4K FHD broadcast with wide 89° visibility for real-time promotion.

Manufacturing & Deployment Process

Precision engineering and rigorous testing ensure maximum reliability across all modular scale sizes:

01 OEM Design
02 Production
03 QC Testing
04 Packaging
05 Shipping
06 Deployment
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising 65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
Frequently Asked Questions
What screen sizes and resolutions are supported?
The display supports 3840 × 2160 (FHD) resolution across 8 modular scale sizes ranging from 21.5 inches to 65 inches.
What processor and memory options are available?
The unit supports dual system configurations: an Android system powered by RK3568 Quad-Core CPU with 2GB RAM and 16GB eMMC ROM, or an Intel Core i3 PC system with 4GB memory and 128GB storage.
What are the operating temperature and humidity limits?
The display is engineered for operational environments ranging from -10°C to 60°C with 5% to 90% RH operating humidity.
What accessories and operating systems are included?
Each unit includes an AC power cable, technical manual, and quality certification. Supported operating systems include Windows, Ubuntu, and Android.
Showroom Displays & Visual Demonstrations
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
Restaurant QSR Menu Installation
65 Inch Wall Mounted LCD Display 2K FHD Digital Signage with 250-500 cd/m² Brightness for Advertising
Cafe Overhead Digital Chalkboard
