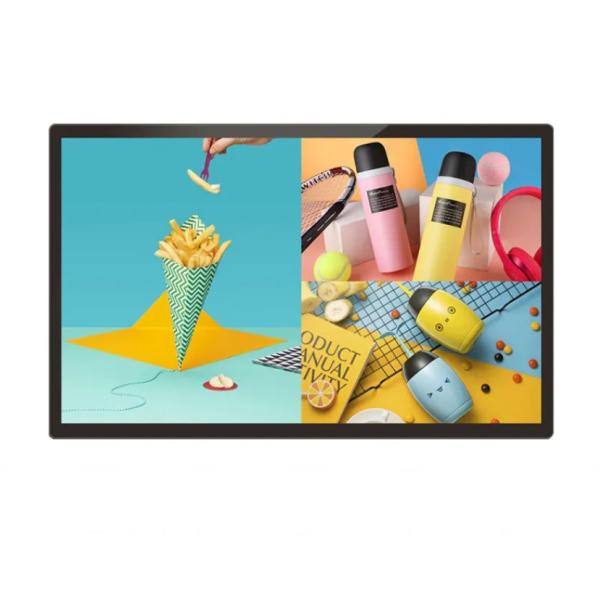

21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
21.5 Inch Wall Mounted Digital Signage with 300 Nits Brightness for Elevator Advertising
Specifications
Resolution :
3840*2160 RGB
Overall Size :
508.4x305x56.2mm
Response Time :
8ms
Power Supply :
100V-240V, 50-60 Hz
Material :
Aluminum Case+Tempered Glass Panel
Pixels :
6mm
Display Color :
8 bit/16.7M
Viewing Angle :
178(H)/178(V)
Operating System :
Android OS (5.1 or 6.0 or 9)/ Windows OS (10,8,7) i3,i5,i7
Power Saving :
≤1W
Contrast Ratio :
5000:1
Network :
Support LAN/WLAN/4G Network
Active Display Area :
476.64 (H) x 268.11 (V)(mm)
Motherboard :
Standard: XM.H560.F Optional: RK3288/RK3399/A40
Brightness :
300 Nits
Model Number :
XYC
Certification :
CE FCC
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Piece
Delivery Time :
7-10 Work Days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Brand Name :
MTHGH
Panel Size :
21.5 inches, custom size optional
Frame Rate :
60Hz
Pixel Pitch :
248.25*248.25 um
Description
21.5 Inch Wall Mounted Digital Signage Elevator Advertising 300 Nits
21.5 Inch Digital Signage Android Wall-Mounted LCD Elevator Advertising Machine
Product Parameters
Standard Sizes
Panel Size 18.5" 21.5" 23.8" 27"
Display Size 409.8×230.4 mm 476×268 mm 526×296 mm 597.6×336.15 mm
Product Size 508×305×56 mm 515×311×55 mm 564×345×55 mm 644×382×60 mm
Pixel Pitch 300×300 μm 248.25×248.25 μm 274.5×274.5 μm 311.25×311.25 μm
Brightness 250 Nits 250 Nits 350 Nits 300 Nits
Power ≤55W ≤55W ≤57W ≤60W
Large Sizes
Panel Size 32" 40" 43" 50"
Display Size 697×392 mm 878×485 mm 941×529 mm 1095×616 mm
Product Size 750×448×64 mm 934×541×79 mm 1002×596×81 mm 1143×667×82 mm
Pixel Pitch 170.25×510.75 μm 152.45×449.4 μm 81.7×245.1 μm 190.3×570.8 μm
Brightness 450 Nits 300 Nits 450 Nits 350 Nits
Power ≤55W ≤75W ≤75W ≤108W
Premium Sizes
Panel Size 55" 58" 65" OEM
Display Size 1209×680 mm 1270×721 mm 1428×803 mm -
Product Size 1280×757×86 mm 1330×781×90 mm 1503×880×101 mm -
Pixel Pitch 630×630 μm 330.75×334 μm 248×744 μm -
Brightness 500 Nits 350 Nits 400 Nits -
Power ≤108W ≤120W ≤165W -
Panel Features
Native Resolution 3840×2160 pixels
Aspect Ratio 16:9
Contrast Ratio 5000:1
Viewing Angle 178°(H)/178°(V)
Response Time 8ms
Display Color 8 bit/16.7M
Frame Rate 60Hz
Backlight LED
Life Time >30000 Hrs
OS Functions
OS System Android 5.1/6.0/7.1, Windows(i3, i5, i7), USB plug&play
Motherboard Model RK3288 (RK3399 or A40I(A64) or A40I(A83T) Option)
CPU Quad-core Cortex-A17
GPU Quad-core GPU Mail-T764
RAM DDR 1GB (2GB/4G Option)
Flash EMMC 8G (16G/32G Option)
Networking Support 4G network / LAN / WLAN / Bluetooth 4.0
Video Format AVI, RMVB, MOV, WMV, MP4, MPEG etc.
Picture Format JPG, JPEG, BMP, PNG, GIF
Audio MP4, WAV, APE, FLAC, AAC etc.
Software Functions
  • Horizontal/Vertical/Split Screen
  • Customized Play & Power On/Off
  • RTC timing clock
  • System watchdog
  • Support full seamless switching
  • Support Web/Local Info. Publish
Ports
Input Ports
  • HDMI×2
  • LAN/RJ45×1
  • USB×2
  • SD×1 TF×1
Output Ports
  • Earphone×1
  • Speaker 5W×2
Power Features
Power Supply 100V-240V, 50-60 Hz
Power Saving ≤1W
Power Consumption -
Accessories
  • Warranty Card×1
  • User manual×1
  • Remote Control
  • Power Cord×1
  • WIFI Antenna×1
