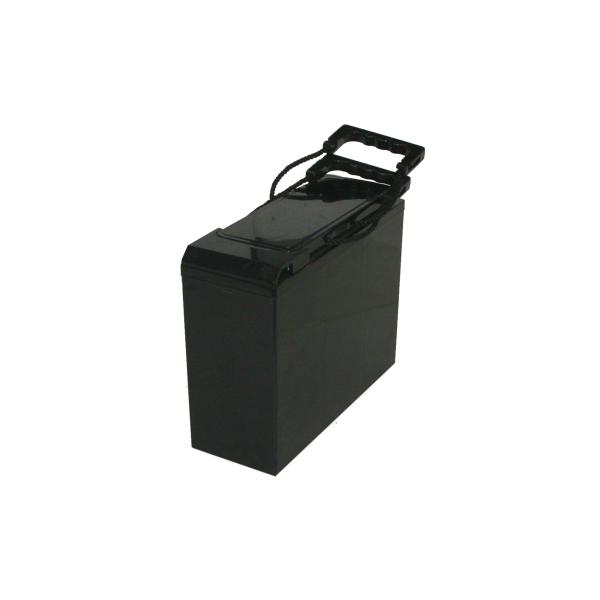

12V55AH Front Terminal AGM Battery with 12 Years Design Life and Front Access Terminal for Narrow Space
12V55AH Front Terminal AGM Battery with 12 Years Design Life and Front Access Terminal for Narrow Space
12V55AH Front Terminal AGM Battery with 12 Years Design Life and Front Access Terminal for Narrow Space
12V55AH Front Terminal AGM Battery with 12 Years Design Life and Front Access Terminal for Narrow Space
Specifications
Approx Weight :
18KG
Nominal Voltage :
12V
Battery Designed Life :
12 Years
Dimension :
L277*W105*H222mm
Application :
Designed for 19"or 23" racks of telecommunication applications, SPC Exchange,
Rated Capacity :
55AH
Type :
Front Terminal AGM Battery
Screw Hole Size :
M6 insert, front access terminal
Battery Case :
ABS
Model Number :
6GFM-55F
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30DAYS
Packaging Details :
Carton and Wooden Pallet
Internal Resistance :
8mΩ fully charged @ 20℃
Description
Increased Recharge Efficiency Front Terminal AGM Battery 12V55AH FT Series For Narrow Space
Product Overview

12V55AH FT Series VRLA Battery Front Terminal AGM Battery SLA Battery for Narrow Space

The Front Access Series Battery is specifically engineered for telecommunications applications with a 12-year design life in float service. Combining advanced paste formulas with modern AGM structures, this range features front access connections for fast, easy installation and maintenance.

Technical Construction

Cathode absorption sealed maintenance-free VRLA battery consists of ABS case, grid type plate, AGM separator and electrolyte. Features include high-tin alloy grid for enhanced corrosion resistance, pasted type thick plates, AGM separator with high porosity, and flame retardant ABS material battery container.

Specifications
Battery Type VRLA Battery
Nominal Voltage 12V
Number of Cells 6 cells
Nominal Capacity 55Ah (10hr, 1.80V/cell, 25°C)
Approx Weight 18 Kg
Designed Life (Float Charge 20°C) 12 Years
Short Circuit Current 1500 A
Operation Ambient Temperature -20°C ~ 55°C
Optimal Ambient Temperature 20°C ~ 25°C
Internal Resistance 6.3 mΩ
Self-discharge max 3% per month @20°C
Depth of Discharge 30%: 1200 cycles, 50%: 500 cycles, 100%: 300 cycles
Max Discharge Current 550A (5s)
Container Material ABS
Terminal M6 female, front access terminal
Performance Charts

Constant Current Discharge Ratings - amperes at 25°C

12V55AH Front Terminal AGM Battery with 12 Years Design Life and Front Access Terminal for Narrow Space

Constant Power Discharge Ratings - watts at 25°C

12V55AH Front Terminal AGM Battery with 12 Years Design Life and Front Access Terminal for Narrow Space
Applications

Highly suited to telecom outdoor applications, renewable energy systems, UPS systems, and other harsh environment applications.

Key Advantages
  • Long Life: 12 years design life in floating condition
  • Wide operating temperature range: from -15°C to 60℃
  • Advanced paste formula with increased recharge efficiency
  • Front access terminal with standard width for 19" and 23" ETSI racks
  • 30% decreased float current lead to excellent high temperature resistance
  • Thick flat plate with high Tin low Calcium alloy
  • Low self-discharge rate
  • Excellent deep discharge recovery capability
