3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
Specifications
Applications :
AMR utility metering(Electricity, Gas, Water, Heat meter) Alarms and security wireless devices
Nominal Capacity :
4000mAh(1mA-2.0v-25℃)
Model Number :
ER18505
Certification :
CE, ROHS, UN38.3
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
10000PCS/30Days
Delivery Time :
20 Days
Packaging Details :
Carton
Weight :
32g
Nominal Voltage :
3.6V
Product System :
LiSOCl2 Battery
Operating Temperature :
﹣60℃～+85℃
Brand Name :
FBATTERY
Description

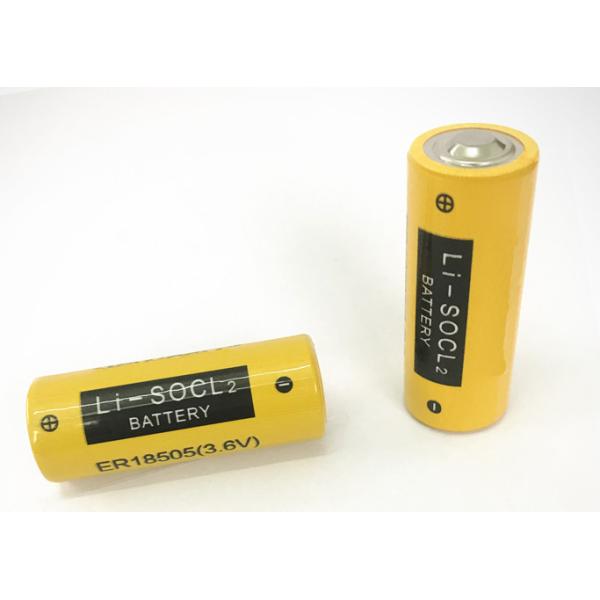

3.6V 4000mAh ER18505 Lithium Cylinder Battery Hermetic Glass To Metal Sealing
Product Overview

ER18505 3.6V 4000mAh Lithium Battery Lithium Thionyl Chloride Battery Lithium Cylinder Battery

3.6V 4.0Ah A Size Bobbin Cell ER18505

Key Features
  • High and Stable Load Voltage
  • Superior Drain Capacity
  • Low Self-discharge Rate (less than 1% after 1 year of storage at 20°C)
  • Stainless Steel Container
  • Hermetic Glass-to-Metal Sealing
  • Laser Welding
  • Non-flammable Electrolyte
Specifications
Model ER18505
Type Energy Type
Size A
Nominal Capacity 4000mAh (at 1mA, +25°C/2.0V cut off)
Nominal Voltage 3.6V
OCV 3.66V
Cut-off Voltage 2.0V
Dimension 18.5(D)×50.5(H)mm
Weight 32g
Max. Continuous Current 130mA
Max. Pulse Current 200mA
Operating Temperature -60°C to +85°C
Storage Temperature Max. 30°C
Shelf Life ≥10 years
Self Discharge Rate ≤1%
Performance Curves
Discharge Curves @ 25℃
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
Capacity-Current Curves
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
Operating Voltage-Temperature Curves
3.6V 4000mAh ER18505 Lithium Cylinder Battery with Hermetic Glass-to-Metal Sealing
Main Applications
  • Radiocommunication and other military applications
  • TPMS (Tire Pressure Monitoring Systems)
  • RFID (Radio Frequency Identification)
  • Alarms and security systems
  • Beacons and emergency location transmitters
  • GPS equipment
  • Metering systems
  • LED lighting applications
  • Other specialized applications
Storage & Handling

Cells should be stored in a clean & dry (less than 30% RH) area. Temperature should not exceed +30°C.

Important Warnings
  • Do not use if cell casing is mangled
  • Do not use different models of cells in series
  • Soldering the tag should be finished in few seconds
  • Do not attempt to recharge
