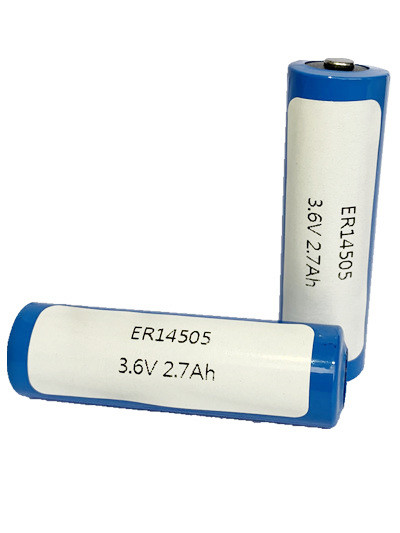

ER14505 High Capacity 2700mAh 3.6V Lithium Thionyl Chloride Battery with Wide Temperature Range
ER14505 High Capacity 2700mAh 3.6V Lithium Thionyl Chloride Battery with Wide Temperature Range
ER14505 High Capacity 2700mAh 3.6V Lithium Thionyl Chloride Battery with Wide Temperature Range
ER14505 High Capacity 2700mAh 3.6V Lithium Thionyl Chloride Battery with Wide Temperature Range
Specifications
Operating Temperature :
-60℃～+85℃
Type :
Energy Type
Nominal Voltage :
3.6V
Applications :
Intelligent and Instrument Area, Remote/Wireless, Intelligent Fire Control System
Impedance :
≤250mΩ
Model Number :
ER14505
Certification :
CE, ROHS, UN38.3
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
10000PCS/30Days
Delivery Time :
20 Days
Packaging Details :
Carton
Size :
AA
Weight :
19g
Nominal Capacity :
2700mAh(1mA-2.0v-25℃)
Product System :
LiSOCl2 Battery
Brand Name :
FBATTERY
Description
CE ER14505 High Capacity Lithium Battery, Lithium Thionyl Chloride AA Battery
Product Overview

ER14505 High Capacity Lithium Batteries Lithium Thionyl Chloride Battery AA Size 3.6V Lithium Battery

Key Features
  • High and Stable Load Voltage
  • Superior Drain Capacity
  • Low Self-discharge Rate (less than 1% after 1 year of storage at 20°C)
  • Stainless Steel Container
  • Hermetic Glass-to-Metal Sealing
  • Laser Welding
  • Non-flammable Electrolyte
Technical Specifications
Model ER14505
Type Energy Type
Size AA
Nominal Capacity 2700mAh (at 1mA, +25°C/2.0V cut off)
Nominal Voltage 3.6V
OCV 3.66V
Cut-off Voltage 2.0V
Dimension 14.5(D) × 50.5(H) mm
Weight 19g
Max. Continuous Current 100mA
Max. Pulse Current 200mA
Operating Temperature -60°C to +85°C
Storage Temperature Max. 30°C
Shelf Life ≥10 years
Self Discharge Rate ≤1%
Compatibility Can replace AA size batteries: Tadiran TL-5903, Tadiran TL-2100, Tadiran TL-4903, Tadiran TL-5104, Saft LS-14500, Saft LS-14500C, Sonnenschein SL-360/S, Sonnenschein SL-760/S, Maxell ER6S-TC, Minamoto ER14505, Xeno XL-060F
Performance Characteristics
Discharge Curves at 25℃
ER14505 High Capacity 2700mAh 3.6V Lithium Thionyl Chloride Battery with Wide Temperature Range
Capacity-Current Curves
ER14505 High Capacity 2700mAh 3.6V Lithium Thionyl Chloride Battery with Wide Temperature Range
Operating Voltage-Temperature Curve
ER14505 High Capacity 2700mAh 3.6V Lithium Thionyl Chloride Battery with Wide Temperature Range
Main Applications
  • Radiocommunication and other military applications
  • TPMS (Tire Pressure Monitoring Systems)
  • RFID (Radio Frequency Identification)
  • Alarms and security systems
  • Beacons and emergency location transmitters
  • GPS equipment
  • Metering systems
  • LED lighting applications
  • Other storage applications
Storage & Safety Information
Storage Guidelines

Cells should be stored in a clean & dry (less than 30% RH) area. Temperature should not exceed +30°C.

Important Warnings
  • Do not use if cell casing is mangled
  • Do not use different models of cells in series
  • Soldering the tag should be finished in few seconds
  • Do not try to recharge
