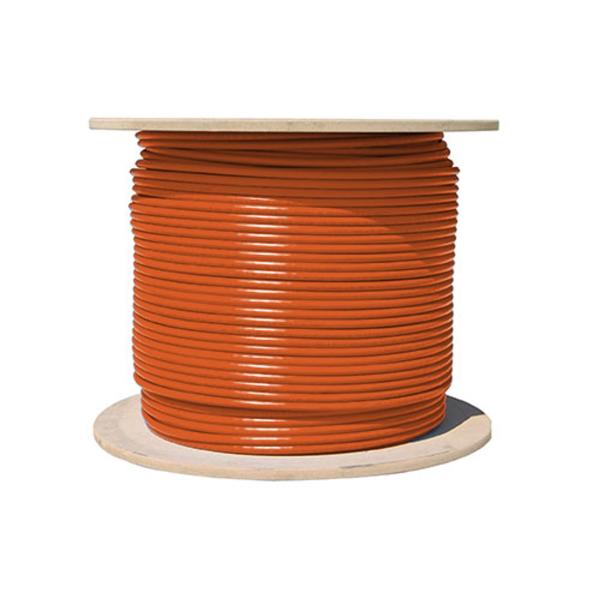

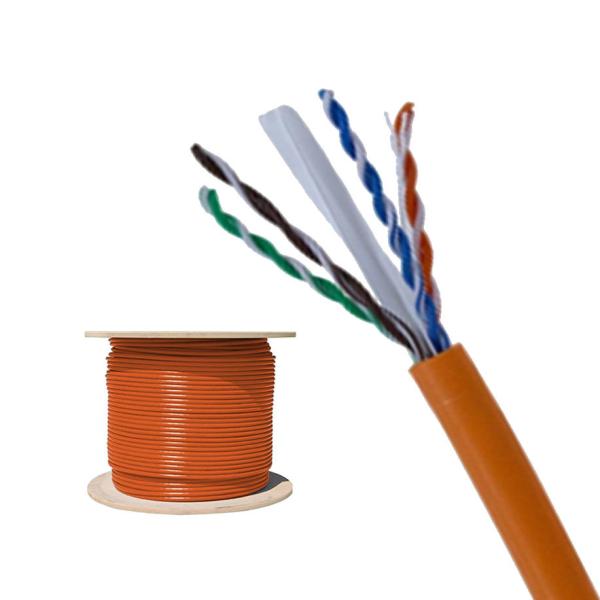

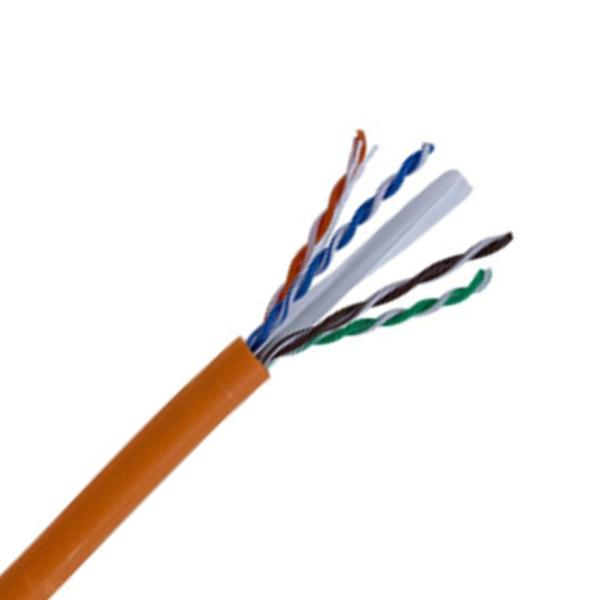

CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool
CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool
CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool
CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool
CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool
CAT6 UTP LSZH Orange 500ft 23AWG High Performance Spool
Specifications
Brand Name :
ITI -LINK
Model Number :
ITI-CT6U-025
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
Shenzhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Inner box size: 32X32X18.5CM Outer box size (for packing): 39x33.5x34cm
Transmission Speed :
1Gbps
Jacket Material :
LSZH
Color :
Orange
Length :
500Ft
Compatibility :
Ethernet
Bandwidth :
250MHz
Conductor Size :
23AWG
Shielding :
Unshielded
Cable Length :
500FT
Description
CAT6 UTP LSZH Orange 500ft 23AWG High Performance Bulk Spool

The INTEGRITY ITI-CT6U-025 CAT6 UTP LSZH Orange Cable delivers high-performance networking with reliability and safety for large-scale installations. Designed for professional contractors, wholesalers, and IT integrators, this 500ft bulk cable offers flexibility, compliance, and efficiency.

Key Features
  • High-Speed Data Transmission - Supports up to 1Gbps Ethernet and 250MHz bandwidth, making it ideal for business offices, data centers, and residential networks.
  • Durable LSZH Jacket - The orange LSZH (Low Smoke Zero Halogen) jacket ensures minimal smoke and toxic emissions during fire, suitable for schools, hospitals, and public facilities.
  • 23AWG Oxygen-Free Copper - Pure copper conductors reduce signal loss and provide stable connectivity across long distances.
  • UTP Unshielded Design - Balances interference resistance and installation flexibility, ideal for structured cabling projects.
  • Bulk 500ft Spool - Packaged for wholesale and large deployments, simplifying inventory management and reducing project costs.
  • Versatile Applications - Compatible with Ethernet switches, routers, patch panels, and servers for enterprise and home networks.
  • Global Compliance - Certified to UL, ETL, CPR, CE, and RoHS standards for safe and reliable international use.
  • Installer-Friendly - Easy routing through walls, ceilings, and cable trays, reducing installation time and labor costs.
  • Wholesale Efficiency - Factory-direct supply ensures consistent quality, competitive pricing, and fast lead times.
  • Trusted Brand - Backed by INTEGRITY's expertise and CNAS-certified testing for performance assurance.
Specifications
Construction Item Description Electrical Property
Conductor Material: Bare Solid Copper (elongation: 19-24%) Conductor Resistance at 20°C: ≤ 9.5 Ω / 100m
OD: 23 AWG Resistance unbalance within a pair: ≤ 2%
Insulation Material: HDPE Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m
OD: 1.15 ±0.01 mm Mutual capacitance: 5600 pF / 100m MAX
Average THK: 0.25 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m
Transmission Properties
Frequency (MHz) Attenuation (Max) (dB/100m) Propagation Delay (MAX) (ns/100m) Return Loss (Min) (dB) NEXT (Min) (dB)
1 3.78 552 45 66.27
8 5.32 546.73 45 61.75
10 5.95 545.38 45 60.3
16 7.55 543 45 57.24
20 8.47 542.05 45 55.78
Applications
  • Enterprise Networks - Deploy CAT6 UTP LSZH cable in corporate offices for seamless LAN, VoIP, and cloud connectivity.
  • Data Centers - Supports high-density cabling with stable 1Gbps performance and 250MHz bandwidth.
  • Industrial Installations - Reliable for factories, warehouses, and automation systems requiring durable LSZH cables.
  • Public Buildings - LSZH safety jacket makes it ideal for hospitals, schools, airports, and government facilities.
  • Home and Commercial Use - Perfect for streaming, gaming, and smart home IoT devices with fast Ethernet connectivity.
