40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
Specifications
Brand Name :
ITI -LINK
Model Number :
ITI-CTF8-014
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
Shenzhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Outer box size (for packing): 40X40X26CM
Cable Type :
Ethernet
Jacket Material :
LSZH
Shielding :
FFTP
Bandwidth :
2000MHz
Cable Length :
100M
Cable Category :
CAT8
Color :
Orange
Conductor Gauge :
22 AWG
Description
Wholesale Bulk CAT8 FFTP LSZH Ethernet Cable 2000MHz High Speed 40Gbps For Data Centers
Product Specifications
Attribute Value
Cable Type Ethernet
Jacket Material LSZH
Shielding FFTP
Bandwidth 2000MHz
Cable Length 100M
Cable Category CAT8
Color Orange
Conductor Gauge 22 AWG
Product Overview

The INTEGRITY ITI-CTF8-014 CAT8 FFTP LSZH Ethernet Cable is engineered for ultra-high-speed networking in data centers, industrial manufacturing, and 5G communication infrastructures. With its solid oxygen-free copper conductors, dual aluminum foil shielding, and advanced LSZH jacket, this CAT8 FFTP cable ensures both performance and safety.

Key Features
  • High-Speed Data Transmission - Supports up to 2000MHz bandwidth and 40Gbps/100Gbps transfer rates, ideal for mission-critical networking.
  • LSZH Jacket for Safety - Low Smoke Zero Halogen material ensures reduced smoke and toxicity in case of fire, making it suitable for enclosed or public environments.

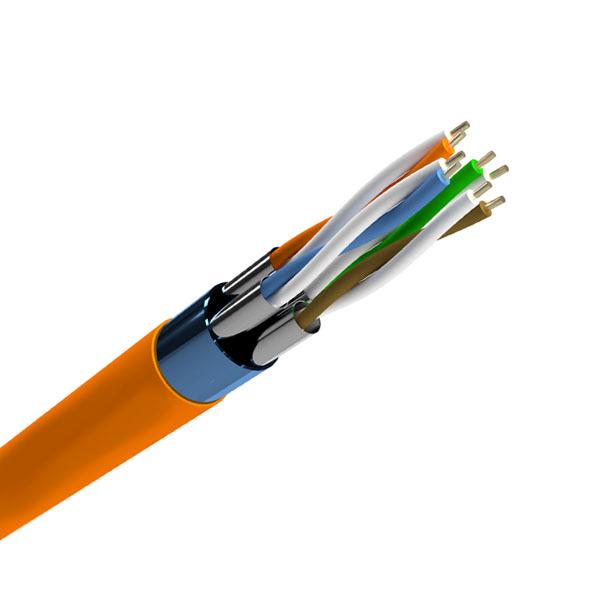

  • Superior Shielding - FFTP design with aluminum foil + overall shielding blocks EMI/RFI, delivering stable connections even in high-interference industrial zones.
  • Industrial Durability - Orange PVC/PE outer jacket resists abrasion, chemicals, and mechanical stress, ensuring reliable performance in harsh industrial or construction sites.
  • Future-Proofing - Designed for hyperscale data centers, 5G base stations, AI clusters, and financial trading hubs requiring ultra-low latency.
  • Premium Material - Made from solid oxygen-free copper for optimal conductivity and reduced signal loss over long-distance cabling.

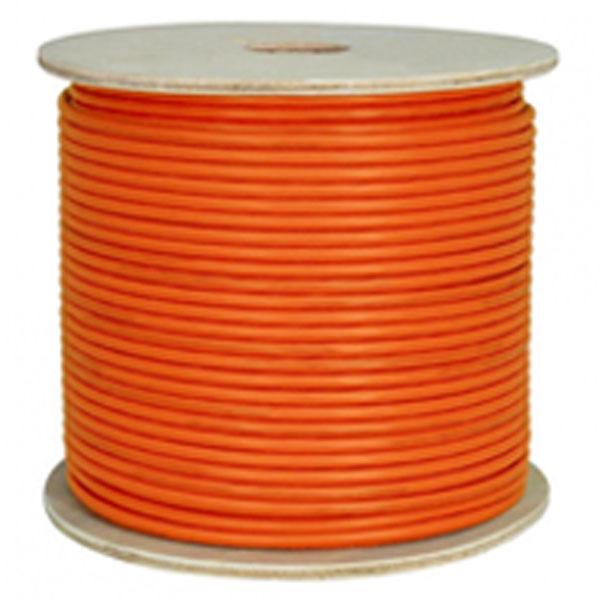

  • Flexible Deployment - Available in bulk reels for engineering, industrial projects, and scalable deployments.
  • Standards Compliance - Meets ISO, ANSI/TIA, and IEC standards for CAT8 cabling, compatible with 25GBASE-T and 40GBASE-T systems.
40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
Technical Specifications
Construction Item Description Electrical Property
Conductor
Material: Bare Solid Copper (elongation: 19-24%)
OD: 22 AWG		 Conductor Resistance at 20°C: ≤ 5.6 Ω / 100m
Resistance unbalance within a pair: ≤ 0.2%
Insulation
Material: PE Skin-Foam-Skin
OD: 1.62 ±0.01 mm
Average THK: 0.50 mm
Color: 1p: white + 2 blue stripes & blue
2p: white + 2 orange stripes & orange
3p: white + 2 green stripes & green
4p: white + 2 brown stripes & brown		 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V: >1500 MΩ / 100m
Mutual capacitance: 5600 pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz: ≤ 160 pF / 100m
Characteristic impedance at 100MHz: 100 ± 15 Ω
Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min
No breakdown
Mechanical Property
Insulation elongation before aging: ≥ 200%
Tensile strength before aging: ≥10 MPa
Elongation after aging: ≥ 150%
Tensile strength after aging: ≥8 MPa		 Jacket Properties
Elongation before aging: ≥ 125 %
Tensile strength before aging: ≥ 10 MPa
Elongation after aging: ≥ 100 %
Tensile strength after aging: ≥ 8 MPa
Electrical Properties
Property Standard Value
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 5.6 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 0.2%
Dielectric Strength Test Voltage NF EN 50289-1-3 / IEC 61196-1-105 No breakdown
Insulation Resistance at 20°C NF EN 50289-1-4 / IEC 60885-1 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC
40Gbps CAT8 FFTP LSZH Ethernet Cable 2000MHz For Data Centers
Applications
  • Data Centers & Server Farms - Supports 2000MHz bandwidth for 40Gbps/100Gbps connectivity, enabling fast cloud computing and virtualization.
  • 5G Communication & Networking - CAT8 LSZH bulk cable is essential for 5G base stations, ensuring stable high-speed data transfer with strong FFTP shielding.
  • Industrial Automation & Manufacturing - LSZH CAT8 cables provide secure, EMI-resistant performance in factories, engineering projects, and power plants.
  • High-Performance Computing - Ideal for AI/ML clusters, GPU servers, and big data centers requiring ultra-fast networking.
  • Commercial & Financial Networks - CAT8 LSZH FFTP cables deliver ultra-low latency for high-frequency trading systems and business-critical applications.
