Solid Copper SFTP CAT 8 LSZH Yellow Jacket For Industrial Networks
Solid Copper SFTP CAT 8 LSZH Yellow Jacket For Industrial Networks
Solid Copper SFTP CAT 8 LSZH Yellow Jacket For Industrial Networks
Solid Copper SFTP CAT 8 LSZH Yellow Jacket For Industrial Networks
Solid Copper SFTP CAT 8 LSZH Yellow Jacket For Industrial Networks
Solid Copper SFTP CAT 8 LSZH Yellow Jacket For Industrial Networks
Specifications
Brand Name :
ITI -LINK
Model Number :
ITI-CTSF8-013
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
Shenzhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Outer box size (for packing): 40X40X26CM
Conductor Size :
22 AWG
Data Transfer Speed :
40 Gbps
Conductor Material :
Copper
Cable Type :
SFTP (Shielded Foiled Twisted Pair)
Jacket Material :
PVC
Frequency :
2000 MHz
Length :
100Meters
Category :
CAT8
Description
CAT8 SFTP Solid Copper LSZH Yellow Jacket For Industrial Networks
Product Specifications
Attribute Value
Conductor Size 22 AWG
Data Transfer Speed 40 Gbps
Conductor Material Copper
Cable Type SFTP (Shielded Foiled Twisted Pair)
Jacket Material PVC
Frequency 2000 MHz
Length 100 Meters
Category CAT8
Product Overview

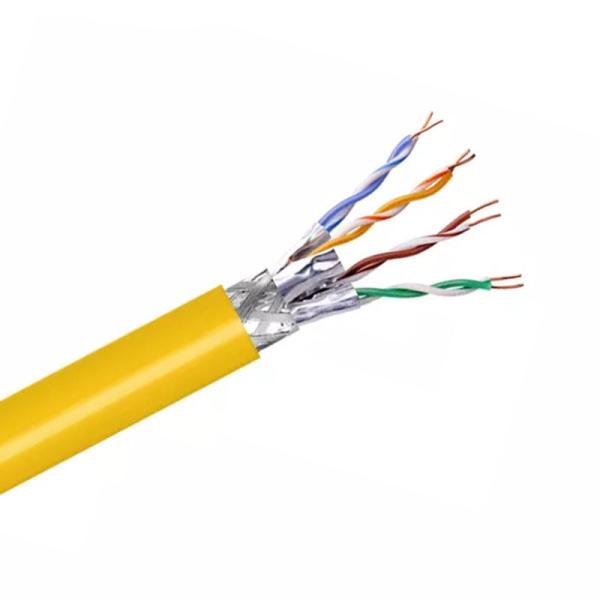

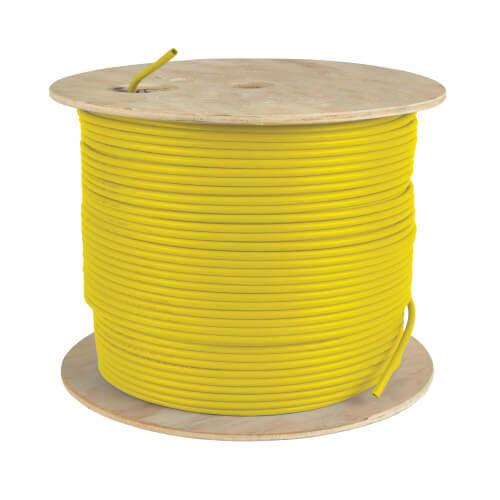

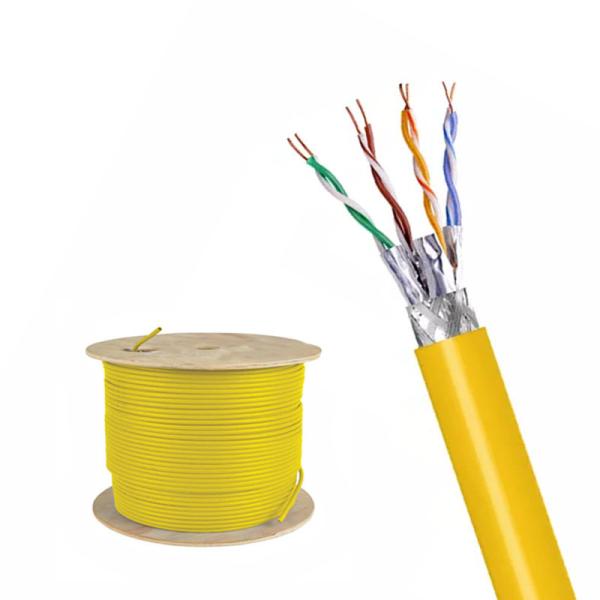

INTEGRITY ITI-CTSF8-013 is a CAT8 SFTP bulk cable built for modern industrial networks. Using solid oxygen-free copper conductors, per-pair aluminum foil and overall shielding, this SFTP CAT8 design helps control EMI in power-dense plants and edge data rooms. The bright yellow jacket eases identification and routing. For safety-critical sites, an LSZH jacket option is available alongside PVC or PE.

Key Benefits
  • Solid OFC conductors: stable low-loss CAT8 runs for 25G/40G short-reach switching.
  • SFTP construction: per-pair foil plus overall shield to cut industrial EMI and RFI.
  • CAT8 ready: high-frequency performance for dense racks, 5G edge and automation.
  • LSZH option: low smoke zero halogen for enclosed spaces and compliance needs.
  • PVC or PE jackets: choose PVC for indoor trays or PE for outdoor ducts.
  • Yellow visibility: fast traceability during moves adds and changes.
  • Rugged build: abrasion-resistant jacket for factory floors and utility sites.
  • Model clarity: printed ITI-CTSF8-013 for inventory and QA trace.
  • RJ45 ecosystem: works with CAT8-rated keystones and 8P8C terminations.
  • Brand assurance: built by INTEGRITY for global industrial and commercial users.
Technical Specifications
Construction & Electrical Properties
Construction Item Description Electrical Property Value
Conductor Material: Bare Solid Copper (elongation: 19-24%) Conductor Resistance at 20°C ≤ 5.6 Ω / 100m
OD: 22 AWG Resistance unbalance within a pair ≤ 0.2%
Insulation Material: PE Skin-Foam-Skin Insulation Resistance at 20°C >1500 MΩ / 100m
OD: 1.62 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK: 0.50 mm Capacitance unbalance pair to ground ≤ 160 pF / 100m
Color: White with colored stripes Characteristic impedance at 100MHz 100 ± 15 Ω
Transmission Properties
Frequency (MHz) Insertion Loss (db) NEXT (db) Return Loss (db) PSNEXT (db) ACRF (db) PSACRF (db) TCL (db) ELTCTL (db)
1 3.0 73.5 19.1 62.0 72.4 69.4 40.0 46.8
2000 26.2 9.8 8.0 6.0 6.4 3.4 3.0 3.0
Applications
  • Data Centers and Edge Rooms: Short-reach CAT8 SFTP switch uplinks, TOR/MOR aggregation, and SFTP CAT8 shielded patch between compute and storage where EMI is present. The yellow LSZH option improves safety and traceability.
  • Industrial Automation: Shielded copper for PLC cells, robotics and conveyors near VFDs. CAT8 backbones with SFTP help suppress noise on monitoring links. ITI-CTSF8-013 supports rugged routing with PVC/PE or LSZH.
  • 5G and Base Stations: CAT8 SFTP runs for fronthaul rooms, edge caching and MEC racks; LSZH for indoor shelters, PE for outdoor ducts, keeping SFTP CAT8 performance stable.
  • Power and Utilities: Substation control, protection IED rooms and camera networks benefit from SFTP CAT8 shielding and CAT8 throughput.
  • Commercial Campuses: Retail cores, stadiums and hospitals where LSZH policies and CAT8 SFTP density meet serviceability needs with yellow identification.
