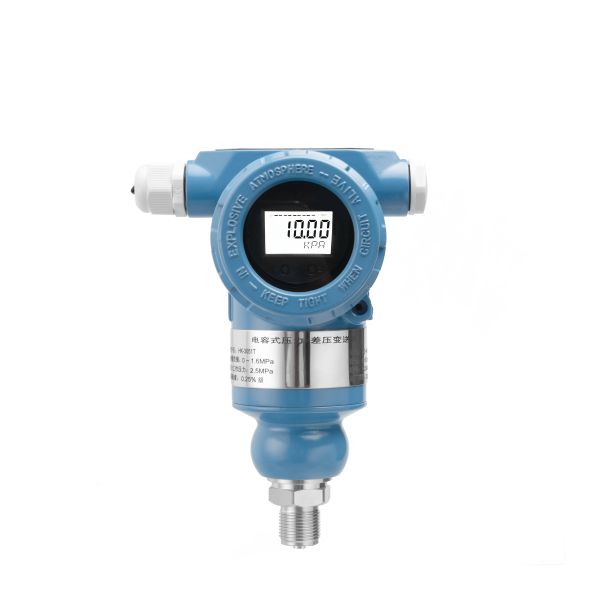

Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Specifications
warranty :
24 months
customized support :
OEM, ODM, OBM
Place of Origin :
Zhejiang, China
Brand Name :
hanke
Model Number :
HK-8051T
Product name :
Hank Intelligent 3051T Pressure Transmitter
Pressure Range :
-0.1~0~0.1~1000Bar (option)
Pressure type :
Gauge; Absolute; Negative, Sealed gauge pressure optional
Medium compatible :
Compatible with 316L Stainless Steel
Power Supply :
24 V DC or 12~36 V DC
Output :
4-20 mA+Hart
Response time :
≤10 ms
workingtemp :
-30℃~85℃
Specification :
water pipe pressure sensor
Certification :
CE CPA Ex
Description
Product Description
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Specification
Performance parameters
2088 shell pressure transmitter
Model
HK-801M4
Power supply
12-36V power supply
Output signals
4-20mA, 1-5V, 0-20mA, 0-5V, 0-10V, RS485
Measurement range
any range within -0.1~100MPa
Compensation temperature
-10~70 ° C
Storage temperature
-40~125 ° C
Medium temperature
-20-90 ° C
Shell protection
IP65
Pressure type
gauge pressure, absolute pressure, sealing pressure
Comprehensive accuracy
0.1% FS, 0.2% FS, 0.3% FS, 0.5% FS optional
Zero temperature drift
±0.03% F.S/C
Sensitivity temperature drift
±0.03% F.s/C
Overload pressure
200% F.S
Long term stability
± 0.2% F.S/y
Natural frequency
5kHz~650kHz
Electrical connection
waterproof joint, stainless steel explosion-proof joint
Measurement medium
oil, water, gas, and other compatible media with 316Lstainless steel
Process connection
threaded connection（G1/4，G1/2etc.）/sanitary diaphragm /connection/flange connection (customizable)
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
Hank 3051T Smart HART Digital Display 4-20mA Output Pressure Transmitter
