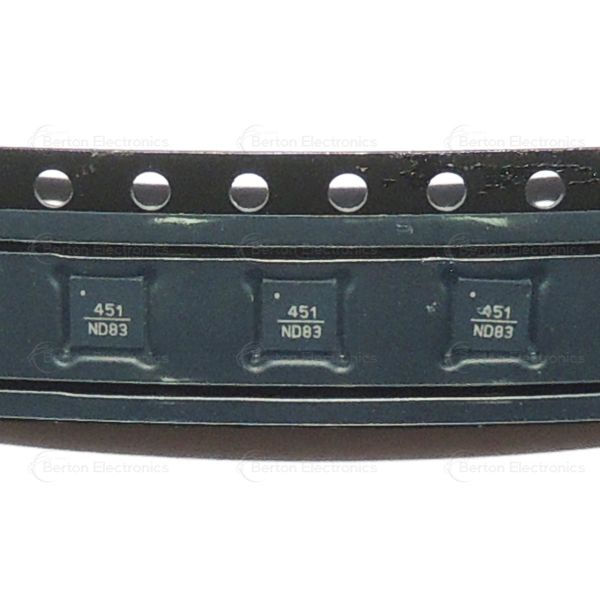

The HMC451LP3ETR is a GaAs PHEMT MMIC (Gallium Arsenide Pseudomorphic High-Electron-Mobility Transistor Monolithic Microwave Integrated Circuit) medium-power amplifier from Analog Devices Inc.

It is designed for radio frequency (RF) applications and operates within a broad frequency range of 5 GHz to 18 GHz.

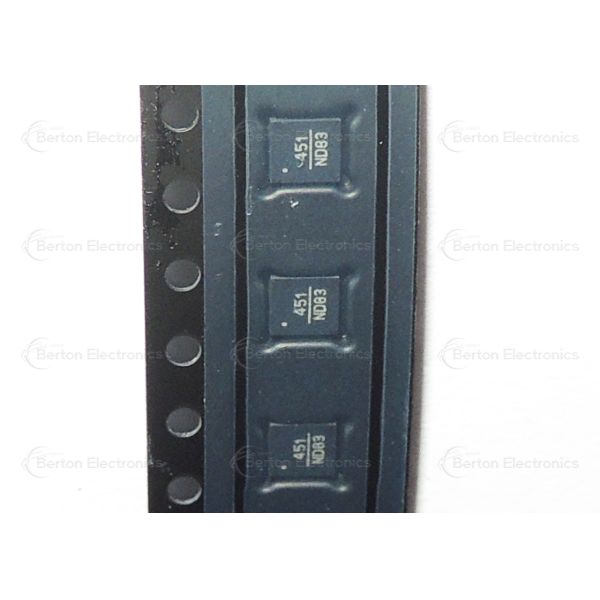

This amplifier is packaged in a compact, surface-mount 16-lead QFN (Quad Flat No-leads) package with an exposed pad (3mm x 3mm) making it suitable for high-frequency PCB designs.

The HMC451LP3ETR is designed for high-frequency RF and microwave systems:

1. Microwave Radio & VSAT (Very Small Aperture Terminal):

   • Used in satellite communication systems and point-to-point radio links due to its wide bandwidth and medium power output.

2. Military, Aerospace, and Defense Systems:

   • Employed in radar systems, electronic warfare (EW) jammers, and secure communications equipment where high reliability and performance over a broad frequency range are critical.

3. Test and Measurement Equipment:

   • Ideal for signal generators, spectrum analyzers, and network analyzers as a gain block or driver amplifier.

4. Fiber Optic Communication:

   • Used in high-speed optical communication systems for signal amplification.

5. Local Oscillator (LO) Driver:

   • Commonly used to drive HMC mixers (e.g., in upconversion/downconversion stages) due to its high linearity and output power.

• Broad Frequency Range (5-18 GHz): Covers multiple microwave bands (e.g., C, X, Ku) with consistent performance.

• High Integration: Requires no external matching components (50 Ω matched internally), simplifying PCB design and reducing component count.

• Excellent Linear Performance: High output IP3 (28 dBm typical) and P1dB (~19.5 dBm) make it suitable for linear applications.

• Robust Thermal Performance: The QFN package with an exposed pad facilitates efficient heat dissipation.
