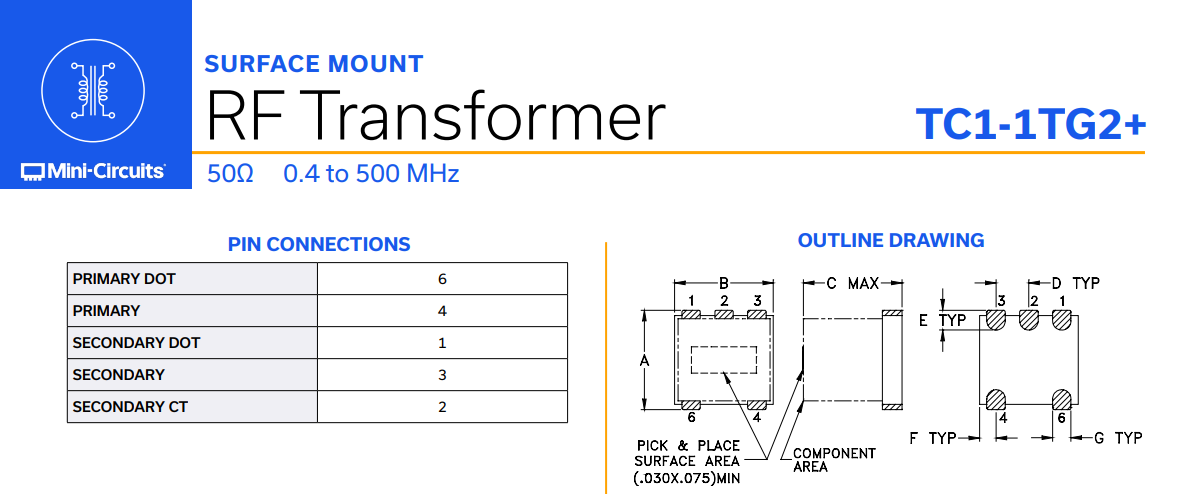

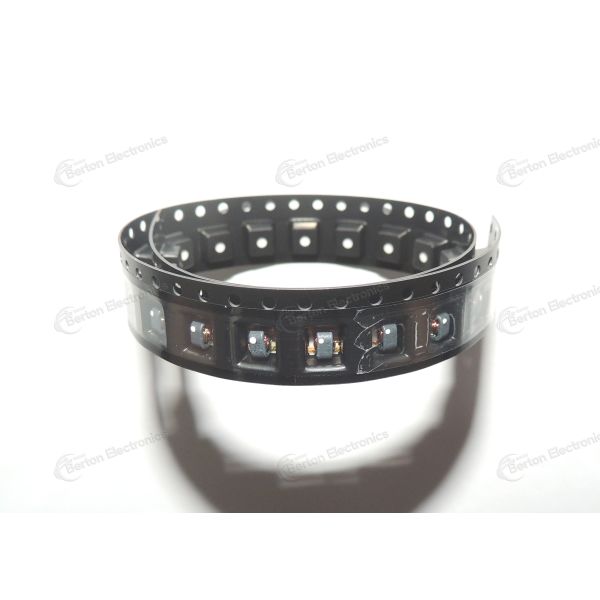

TC1-1TG2+ is a balun transformer produced by Mini-Circuits

Functions

• Frequency Range: It supports a frequency range from 0.4 MHz to 500 MHz, which can cover a variety of RF signals within this frequency range.
• Amplitude and Phase Balance: The amplitude balance is ±0.02 to 1.26 dB, and the phase balance is 0.01 to 7.50 degrees, which can ensure the stability and consistency of signal transmission.
• Low Insertion Loss: The insertion loss is 0.32 to 1.84 dB. When the signal passes through the balun, the energy loss is relatively small, which is conducive to the efficient transmission of the signal.
• Current Capacity: It can handle a current of 30 mA, which can meet the power requirements of some small - signal circuits.
• Impedance Matching: The impedance is 50Ω, and the impedance ratio is 1:1, which can well match the impedance of RF circuits, reduce signal reflection, and improve signal quality.
• Packaging Form: It adopts surface - mount packaging, which is convenient for installation and connection on the circuit board, and is suitable for the needs of modern electronic product miniaturization and high - density integration.
•

Applications

• RF Circuit Conversion: It is often used in RF circuits for differential - to - single - ended conversion or single - ended - to - differential conversion. For example, in a low - phase - noise radar frequency source generation circuit, the TC1-1TG2+ is used to convert the differential signal into a single - ended signal for subsequent filtering processing.
• Communication Systems: In wireless communication systems, such as mobile communication base stations, wireless local area networks, etc., it can be used to realize the conversion and matching of signals between different components, ensuring the normal operation of the communication system.
• Test and Measurement Equipment: In signal generators, spectrum analyzers, network analyzers and other test and measurement equipment, the TC1-1TG2+ can be used to adjust the signal form and impedance to ensure the accuracy and reliability of measurement.
