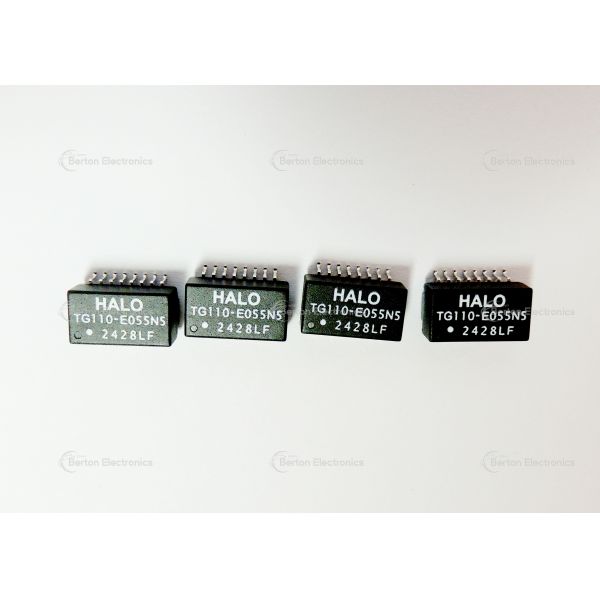

TG110-E055N5LF Datacom / Telecom Transformer From Halo Electronics
TG110-E055N5LF Datacom / Telecom Transformer From Halo Electronics
Specifications
Product Number :
TG110-E055N5LF
Manufacturer :
HALO Electronics, Inc.
Description :
LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Description

TG110-E055N5LF is a datacom/telecom transformer from Halo Electronics, designed for 10/100BASE-TX Ethernet applications.

  • TG110-E055N5LF Datacom / Telecom Transformer From Halo Electronics

Key Features of TG110-E055N5LF

  1. Transformer Functionality

    • 1:1 turns ratio (1CT:1CT for both transmitter and receiver sides)

    • Inductance: 400 nH (some sources mention 350 µH)

    • High isolation voltage: 1.5 kV for signal integrity and safety.

  2. Design & Construction

    • Surface-mount (SMD) package (16-pin, dimensions: 12.7 × 7.11 × 6.35 mm)

    • Shielded design to reduce EMI interference

    • Matte tin over nickel plating for corrosion resistance

  3. Electrical Specifications

    • Primary/Secondary DC resistance: 1 Ω max

    • Operating temperature: -40°C to +85°C, suitable for industrial environments.

  4. Compliance & Certifications

    • RoHS & REACH compliant

    • UL and EN certified.

TG110-E055N5LF Datacom / Telecom Transformer From Halo Electronics

Applications

The TG110-E055N5LF is primarily used in:

  • Ethernet communication systems (10/100BASE-TX interfaces).

  • Network switches, routers, and modems.

  • Industrial networking equipment requiring robust isolation


  • HALO TG110-S050N2LF
    HALO TG110-S055N2LF
    HALO TG110-S055N2RL
    HALO TG110-S120N2LF
    HALO TG110-S120N2RL
    HALO TG110-S125N2RL
    HALO TG110-S125N2LF
    HALO TG110-S131N2LF
    HALO TG110-S141N5LF
    HALO TG110-S139N2LF
    HALO TG110-S139N2RL
    HALO TG110-S141N5RL
    HALO TG110-S177N2RL
    HALO TG110-S177N2LF
