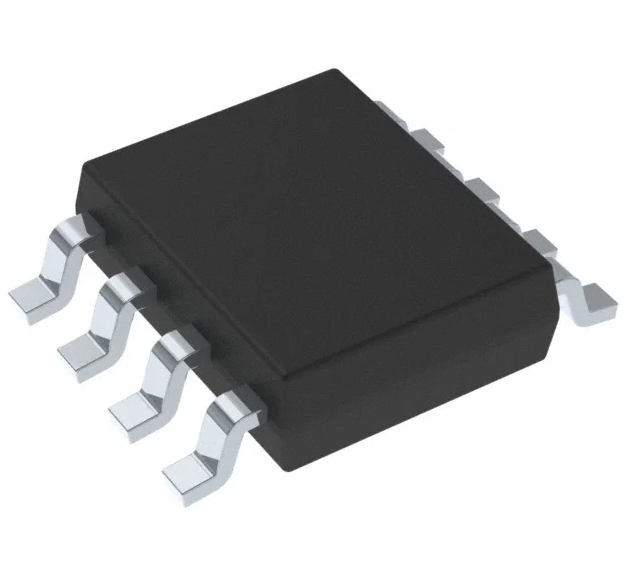

Functions and Applications of TPS54560BDDAR (English Version)

Core Functions

• Serves as a high-efficiency synchronous step-down DC-DC converter, delivering a maximum output current of 5A with up to 95% conversion efficiency, optimizing power utilization.
• Features a wide input voltage range of 4.5V to 28V, compatible with various power sources such as industrial supplies, battery packs, and 12V/24V system rails.
• Supports adjustable output voltage (0.8V to VIN) via external resistors, meeting the power requirements of diverse loads like MCUs, FPGAs, and analog circuits.
• Incorporates advanced current-mode control with fast transient response (<50μs typical), minimizing output voltage deviation during sudden load changes.
• Integrates comprehensive protection mechanisms: overcurrent protection (OCP), overvoltage protection (OVP), undervoltage lockout (UVLO), and thermal shutdown (TSD) for system safety.
• Offers a fixed switching frequency of 500kHz (adjustable to 1MHz via external resistor), enabling the use of small-sized inductors and capacitors to reduce PCB space.
• Includes a soft-start pin (SS) to mitigate inrush current and a power-good (PG) pin for system power status monitoring.

Key Applications

• Industrial Electronics: Powers PLCs, industrial controllers, motor drivers, and sensor modules in factory automation and process control systems.
• Automotive Electronics: Supplies stable power to infotainment systems, ADAS (Advanced Driver Assistance Systems) components, in-vehicle sensors, and dashboard modules (compliant with 12V/24V automotive power standards).
• Consumer Electronics: Used in set-top boxes, gaming consoles, portable chargers, and home appliances requiring high-current, efficient power conversion.
• Telecommunications & Networking: Provides regulated power for routers, switches, base station peripherals, and network interface cards (NICs).
• Medical Devices: Powers low-voltage medical equipment such as patient monitors, diagnostic tools, and portable medical devices (relying on high reliability and stable output).
• Embedded Systems & IoT Devices: Supports power-hungry components like FPGAs, microprocessors, and wireless communication modules in IoT gateways and embedded control systems.
•
