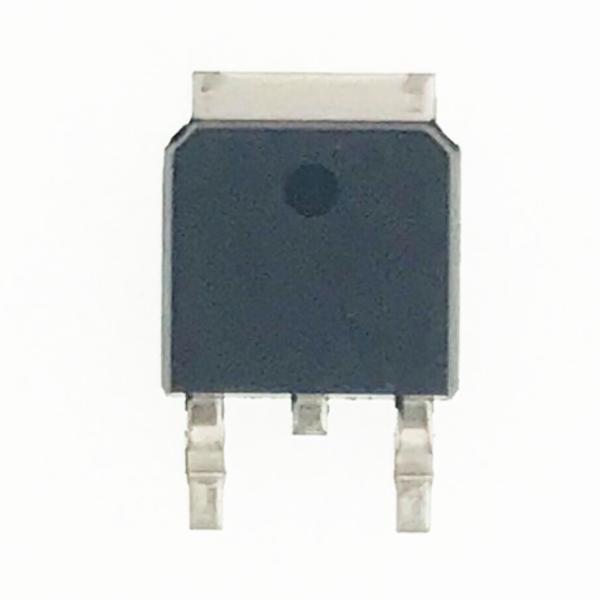

IPD90N06S4-04 Npn Bipolar Transistor AEC Qualified MOSFET In Stock
IPD90N06S4-04 Npn Bipolar Transistor AEC Qualified MOSFET In Stock
Specifications
Brand Name :
Infineon Technologies
Model Number :
IPD90N06S4-04
Certification :
RoHS Compliant
Place of Origin :
Original
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/pcs/week
Delivery Time :
1-3day
Packaging Details :
Original package
Description :
MOSFET N-Ch 60V 90A DPAK-2 OptiMOS-T2
Stock :
300000
Shipping Method :
Express
Input Type :
Standard
Voltage Supply - Internal :
Standard
Condition :
100% Original
Date code :
Newest
Package :
Tray, Reel, Packing foam, Box
Quality :
High-quality
Express :
fedex, tnt. dhl. ems. ups.
Description

New And Original Transistor IPD90N06S4-04 Integrated Circuit MOSFET In Stock

Features

• N-channel - Enhancement mode

• AEC qualified

• MSL1 up to 260°C peak reflow

• 175°C operating temperature

• Green Product (RoHS compliant)

• 100% Avalanche tested

Specifications
Product Attribute Attribute Value
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package / Case: TO-252-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 60 V
Id - Continuous Drain Current: 90 A
Rds On - Drain-Source Resistance: 3.8 mOhms
Tradename: OptiMOS
Series: OptiMOS-T2
Packaging: Reel
Packaging: Cut Tape
Brand: Infineon Technologies
Configuration: Single
Height: 2.3 mm
Length: 6.5 mm
Product Type: MOSFET
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Width: 6.22 mm
Part # Aliases: SP000374323 IPD9N6S44XT IPD90N06S404ATMA1
Unit Weight: 0.011640 oz
