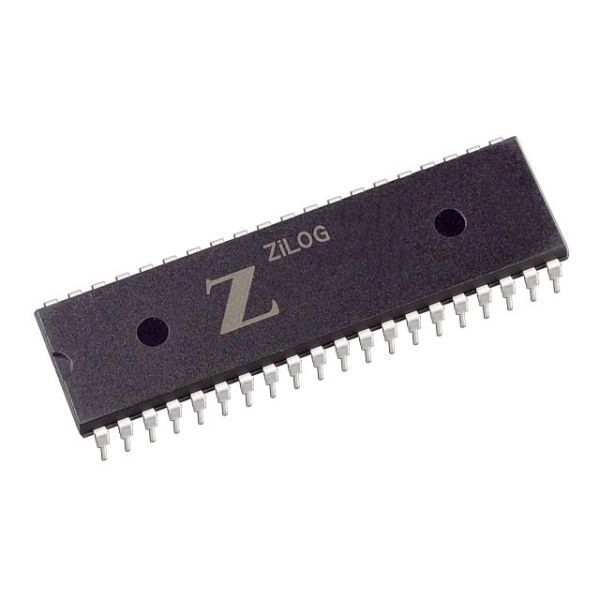

Z86E4412PSG IC MCU 8BIT 16KB OTP 40DIP Zilog
Z86E4412PSG IC MCU 8BIT 16KB OTP 40DIP Zilog
Specifications
Brand Name :
Zilog
Model Number :
Z86E4412PSG
MOQ :
1
Price :
Based on current price
Payment Terms :
T/T
Supply Ability :
In stock
Delivery Time :
3-5 work days
Packaging Details :
anti-static bag & cardboard box
Core Processor :
Z8
Core Size :
8-Bit
Speed :
12MHz
Connectivity :
EBI/EMI
Peripherals :
POR, WDT
Number of I/O :
32
Program Memory Size :
16KB (16K x 8)
Program Memory Type :
OTP
EEPROM Size :
-
RAM Size :
236 x 8
Voltage - Supply (Vcc/Vdd) :
3.5V ~ 5.5V
Data Converters :
-
Oscillator Type :
Internal
Operating Temperature :
0°C ~ 70°C (TA)
Mounting Type :
Through Hole
Package / Case :
40-DIP (0.620", 15.75mm)
Supplier Device Package :
-
Description

Product Details

Architectural Overview

Zilog’s Z86E33/733/E34, E43/743/E44 8-Bit One-Time Programmable (OTP) Microcontrollers are members of Zilog’s single-chip Z8® MCU family featuring enhanced wake-up circuitry, programmable Watchdog Timers, Low Noise EMI options, and easy hardware/software system expansion capability.

Features

• Standard Temperature (VCC = 3.5 V to 5.5 V)
• Extended Temperature (VCC = 3.5 V to 5.5 V)
• Available Packages:
– 28-Pin DIP/SOIC/PLCC OTP (E33/733/E34)
– 40-Pin DIP OTP (E43/743/E44)
– 44-Pin PLCC/LQFP OTP (E43/743/E44)
• Software Enabled Watchdog Timer (WDT)
• Push-Pull/Open-Drain Programmable
on Port 0, Port 1, and Port 2
• 24/32 Input/Output Lines
• Clock-Free WDT Reset
• Auto Power-On Reset (POR)
• Programmable OTP Options:
– RC Oscillator
– EPROM Protect
– Auto Latch Disable
– Permanently Enabled WDT
– Crystal Oscillator Feedback Resistor Disable
– RAM Protect
• Low-Power Consumption: 60 mW
• Fast Instruction Pointer: 0.75 µs
• Two Standby Modes: STOP and HALT
• Digital Inputs CMOS Levels, Schmitt-Triggered
• Software Programmable Low EMI Mode
• Two Programmable 8-Bit Counter/Timers
Each with a 6-Bit Programmable Prescaler
• Six Vectored, Priority Interrupts
from Six Different Sources
• Two Comparators
• On-Chip Oscillator that Accepts a Crystal,
Ceramic Resonator, LC, RC, or External Clock Drive

Specifications

Attribute Attribute Value
Manufacturer Zilog
Product Category Microcontrollers
Series Z8R
Packaging Tube
Unit-Weight 0.210004 oz
Mounting-Style Through Hole
Package-Case 40-DIP (0.620", 15.75mm)
Operating-Temperature 0°C ~ 70°C (TA)
Supplier-Device-Package *
Number-of-I-O 32 I/O
Speed 12MHz
EEPROM-Size -
Core-Processor Z8
RAM-Size 236 x 8
Program Memory OTP
Peripherals POR, WDT
Connectivity EBI/EMI
Voltage-Supply-Vcc-Vdd 3.5 V ~ 5.5 V
Core-Size 8-Bit
Program-Memory-Size 16KB (16K x 8)
Data-Converters -
Oscillator-Type Internal
Maximum Operating Temperature + 70 C
Operating temperature range 0 C
Operating-Supply-Voltage 3.5 V to 5.5 V
Core Z8
Processor-Series Z86E4xx
Data-Bus-Width 8 bit
Supply-Voltage-Max 5.5 V
Supply-Voltage-Min 3.5 V
Package-Case PDIP-40
Maximum-Clock-Frequency 12 MHz
Input/output 32 I/O
Data-RAM-Size 237 B
Data-ROM-Size 16 kB
Number-of-Timers-Counters 2 Timer
ADC-Resolution No ADC
Data-ROM-Type EPROM
Functional compatible componentForm,Package,Functional compatible component
Manufacturer Part# Description Manufacturer Compare
Z86E4412PEC
Microcontrollers and Processors		 IC 8-BIT, OTPROM, 12 MHz, MICROCONTROLLER, PDIP40, PLASTIC, DIP-40, Microcontroller Zilog Inc Z86E4412PSG vs Z86E4412PEC
Z86E4412PEG
Microcontrollers and Processors		 Microcontroller, 8-Bit, OTPROM, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 IXYS Corporation Z86E4412PSG vs Z86E4412PEG
Z86E4412PSC
Microcontrollers and Processors		 Microcontroller, 8-Bit, OTPROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 IXYS Corporation Z86E4412PSG vs Z86E4412PSC
Z86E4412PSG
Microcontrollers and Processors		 Microcontroller, 8-Bit, OTPROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 IXYS Corporation Z86E4412PSG vs Z86E4412PSG

Descriptions

Z8 Z8? Microcontroller IC 8-Bit 12MHz 16KB (16K x 8) OTP
8-bit Microcontrollers - MCU Z8 16K OTP 12MHz
