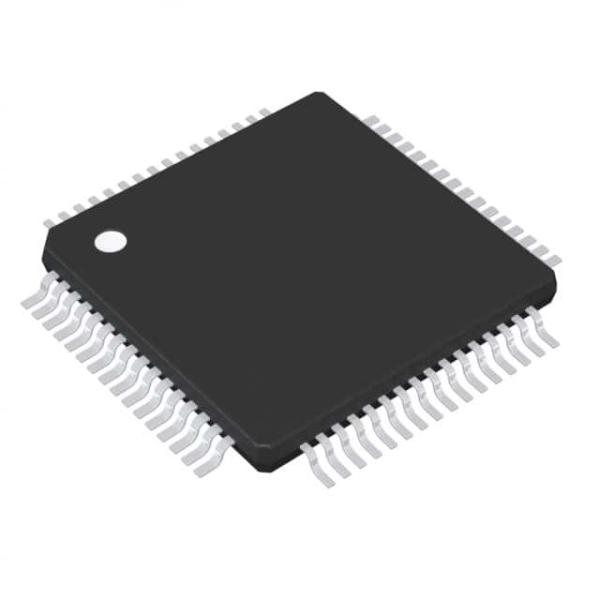

MSP430F4152IPMR IC MCU 16BIT 16KB FLASH 64LQFP Texas Instruments
MSP430F4152IPMR IC MCU 16BIT 16KB FLASH 64LQFP Texas Instruments
Specifications
Brand Name :
Texas Instruments
Model Number :
MSP430F4152IPMR
MOQ :
1
Price :
Based on current price
Payment Terms :
T/T
Supply Ability :
In stock
Delivery Time :
3-5 work days
Packaging Details :
anti-static bag & cardboard box
Core Processor :
MSP430 CPU16
Core Size :
16-Bit
Speed :
8MHz
Connectivity :
I²C, IrDA, LINbus, SCI, SPI, UART/USART
Peripherals :
Brown-out Detect/Reset, LCD, POR, PWM, WDT
Number of I/O :
56
Program Memory Size :
16KB (16K x 8 + 256B)
Program Memory Type :
FLASH
EEPROM Size :
-
RAM Size :
512 x 8
Voltage - Supply (Vcc/Vdd) :
1.8V ~ 3.6V
Data Converters :
A/D 8x10b
Oscillator Type :
Internal
Operating Temperature :
-40°C ~ 85°C (TA)
Mounting Type :
Surface Mount
Package / Case :
64-LQFP
Supplier Device Package :
64-LQFP (10x10)
Description

Product Details

Description: The MSP430F4152IPMR Texas Instruments Integrated Circuits (ICs) Microcontrollers is a 16-bit microcontroller with an internal oscillator and a 64-LQFP (10x10) package. It has an operating temperature range of -40°C to 85°C (TA) and a speed of 8MHz. It features a 4 Series processor, Brown-out Detect/Reset, LCD, POR, PWM, and WDT. It has an operating supply voltage of 1.8V to 3.6V and a unit weight of 0.012088 oz.

The MSP430F4152IPMR is suitable for a wide range of applications, including automotive, consumer, industrial, and medical. It can be used for motor control, power management, and sensing applications. It is also suitable for low-power applications such as wireless sensing, portable medical devices, and battery-powered systems.

Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Microcontrollers
Series MSP430x4xx
Packaging Alternate Packaging
Unit-Weight 0.012088 oz
Mounting-Style SMD/SMT
Tradename MSP430
Package-Case 64-LQFP
Operating-Temperature -40°C ~ 85°C (TA)
Supplier-Device-Package 64-LQFP (10x10)
Number-of-I-O 56 I/O
Speed 8MHz
EEPROM-Size -
Core-Processor MSP430
RAM-Size 512 x 8
Program Memory FLASH
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Connectivity I2C, IrDA, LIN, SCI, SPI, UART/USART
Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
Core-Size 16-Bit
Program-Memory-Size 16KB (16K x 8 + 256B)
Data-Converters A/D 8x10b
Oscillator-Type Internal
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Operating-Supply-Voltage 1.8 V to 3.6 V
Interface-Type I2C SPI UART
Core MSP430
Processor-Series 4 Series
Data-Bus-Width 16 bit
Package-Case LQFP-64
Maximum-Clock-Frequency 16 MHz
Input/output 48 I/O
Data-RAM-Size 512 B
Number-of-Timers-Counters 2 Timer

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part# Description Manufacturer Compare
MSP430F4132IPMR
Microcontrollers and Processors		 16-Bit Ultra-Low-Power MCU, 8KB Flash, 512B RAM, 10-bit ADC, USCI, Analog Comp, 56 I/Os, LCD Driv 64-LQFP -40 to 85 Texas Instruments MSP430F4152IPMR vs MSP430F4132IPMR
MSP430F4152IPM
Microcontrollers and Processors		 16-Bit Ultra-Low-Power MCU, 16KB Flash, 512B RAM, 10-bit ADC, USCI, Analog Comp, 56 I/Os, LCD Driver 64-LQFP -40 to 85 Texas Instruments MSP430F4152IPMR vs MSP430F4152IPM
MSP430F4132IPM
Microcontrollers and Processors		 16-Bit Ultra-Low-Power MCU, 8KB Flash, 512B RAM, 10-bit ADC, USCI, Analog Comp, 56 I/Os, LCD Driv 64-LQFP -40 to 85 Texas Instruments MSP430F4152IPMR vs MSP430F4132IPM

Descriptions

MSP430 MSP430x4xx Microcontroller IC 16-Bit 8MHz 16KB (16K x 8 + 256B) FLASH 64-LQFP (10x10)
MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 64-Pin LQFP T/R
