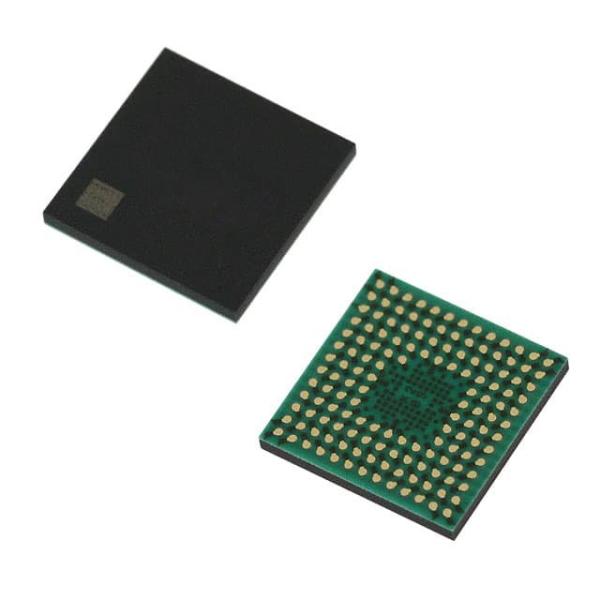

R4F2113NLG#U0 IC MCU 16BIT 128KB FLSH 145TFLGA Renesas Electronics America Inc
R4F2113NLG#U0 IC MCU 16BIT 128KB FLSH 145TFLGA Renesas Electronics America Inc
Specifications
Brand Name :
Renesas Electronics America Inc
Model Number :
R4F2113NLG#U0
MOQ :
1
Price :
Based on current price
Payment Terms :
T/T
Supply Ability :
In stock
Delivery Time :
3-5 work days
Packaging Details :
anti-static bag & cardboard box
Core Processor :
H8S/2000
Core Size :
16-Bit
Speed :
20MHz
Connectivity :
I²C, LPC, SCI
Peripherals :
POR, PWM, WDT
Number of I/O :
114
Program Memory Size :
128KB (128K x 8)
Program Memory Type :
FLASH
EEPROM Size :
-
RAM Size :
12K x 8
Voltage - Supply (Vcc/Vdd) :
3V ~ 3.6V
Data Converters :
A/D 12x10b
Oscillator Type :
Internal
Operating Temperature :
-20°C ~ 75°C (TA)
Mounting Type :
Surface Mount
Package / Case :
145-TFLGA
Supplier Device Package :
145-TFLGA (9x9)
Description

Product Details

Features

The core of each product in the H8S/2112 Group of CISC (complex instruction set computer) microcomputers is an H8S/2000 CPU, which has an internal 16-bit architecture. The H8S/2000 CPU provides upward-compatibility with the CPUs of other Renesas Technology-original microcomputers: H8/300, H8/300H, and H8S.

As peripheral functions, each LSI of the group includes a serial communication interface with FIFO, an I2C bus interface, an A/D converter, and various types of timers. Together, the modules realize low-cost system configurations. The power consumption of these modules is kept down dynamically by power-down modes. The on-chip ROM is a flash memory (F-ZTATTM*) with a capacity of 96 Kbytes.

Applications

Examples of the applications of this LSI include PC peripheral equipment, office automation equipment, and industrial equipment.

Specifications

Attribute Attribute Value
Manufacturer Renesas Electronics America
Product Category Microcontrollers
Series H8R H8S/2100
Packaging Tray
Package-Case 145-TFLGA
Operating-Temperature -20°C ~ 75°C (TA)
Supplier-Device-Package 145-TFLGA (9x9)
Number-of-I-O 114 I/O
Speed 20MHz
EEPROM-Size -
Core-Processor H8S/2000
RAM-Size 12K x 8
Program Memory FLASH
Peripherals POR, PWM, WDT
Connectivity I2C, LPC, SCI
Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
Core-Size 16-Bit
Program-Memory-Size 128KB (128K x 8)
Data-Converters A/D 12x10b
Oscillator-Type Internal

Descriptions

H8S/2000 H8? H8S/2100 Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH 145-TFLGA (9x9)
MCU 3V 128K PB-FREE PTLG0145JB
