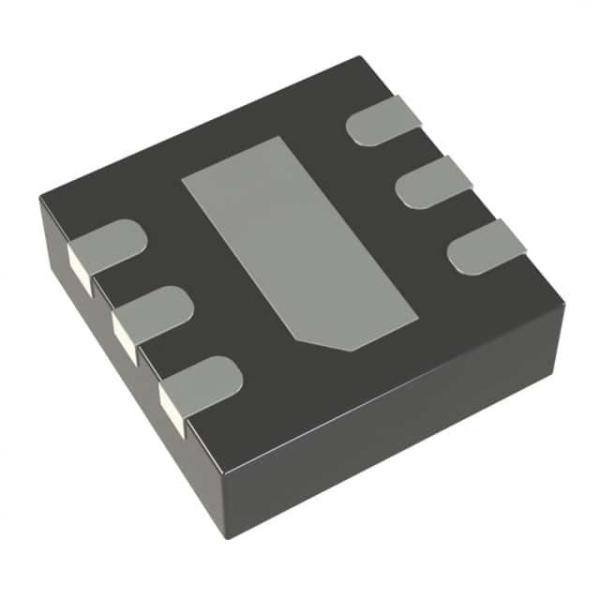

LTC3204EDC-5#TRPBF IC REG CHARGE PUMP 5V 150MA 6DFN Analog Devices Inc.
LTC3204EDC-5#TRPBF IC REG CHARGE PUMP 5V 150MA 6DFN Analog Devices Inc.
Specifications
Brand Name :
Analog Devices Inc.
Model Number :
LTC3204EDC-5#TRPBF
MOQ :
1
Price :
Based on current price
Payment Terms :
T/T
Supply Ability :
In stock
Delivery Time :
3-5 work days
Packaging Details :
anti-static bag & cardboard box
Function :
Step-Up
Output Configuration :
Positive
Topology :
Charge Pump
Output Type :
Fixed
Number of Outputs :
1
Voltage - Input (Min) :
2.7V
Voltage - Input (Max) :
5.5V
Voltage - Output (Min/Fixed) :
5V
Voltage - Output (Max) :
-
Current - Output :
150mA
Frequency - Switching :
1.2MHz
Synchronous Rectifier :
No
Operating Temperature :
-40°C ~ 85°C (TA)
Mounting Type :
Surface Mount
Package / Case :
6-WFDFN Exposed Pad
Supplier Device Package :
6-DFN (2x2)
Description

Product Details

DESCRIPTION

The LTC®3204-3.3/LTC3204-5/LTC3204B-3.3/LTC3204B-5 are low noise, constant frequency (1.2MHz) switched capacitor voltage doublers. The LTC3204-3.3/LTC3204B-3.3 can produce a regulated output voltage of 3.3V from a minimum input voltage of 1.8V (2 alkaline cells) whereas the LTC3204-5/LTC3204B-5 can produce 5V from a minimum of 2.7V (Li-Ion battery) input.

FEATURES

■ Fixed 3.3V or 5V Outputs
■ VIN Range:
1.8V to 4.5V (LTC3204-3.3/LTC3204B-3.3)
2.7V to 5.5V (LTC3204-5/LTC3204B-5)
■ Output Current:
Up to 150mA (LTC3204-5/LTC3204B-5)
Up to 50mA (LTC3204-3.3/LTC3204B-3.3)
■ Automatic Burst Mode® Operation with IQ = 48µA (LTC3204-3.3/LTC3204-5)
■ Constant Frequency Operation at All Loads (LTC3204B-3.3/LTC3204B-5)
■ Low Noise Constant Frequency (1.2MHz) Operation*
■ Built-In Soft-Start Reduces Inrush Current
■ Shutdown Disconnects Load from Input
■ Shutdown Current <1µA
■ Short-Circuit/Thermal Protection
■ Available in Low Profile 6-Lead DFN Package

APPLICATIONS

■ 2 AA Cell to 3.3V
■ Li-Ion to 5V
■ USB On-The-Go Devices
■ White LED Drivers
■ Handheld Devices

Specifications

Attribute Attribute Value
Manufacturer Analog Devices / Linear Technology
Product Category DC Switching Regulators
Series -
Packaging Tape & Reel (TR) Alternate Packaging
Package-Case 6-WFDFN Exposed Pad
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Surface Mount
Output-Type Fixed
Function Step-Up
Supplier-Device-Package 6-DFN (2x2)
Number-of-Outputs 1 Output
Topology Charge Pump
Frequency-Switching 1.2MHz
Current-Output 150mA
Output-Configuration Positive
Output Voltage 5V
Voltage-Output-Max -
Synchronous-Rectifier No
Voltage-Input-Min 2.7V
Voltage-Input-Max 5.5V

Descriptions

LTC3204 - Low Noise Regulated Charge Pump in 2 脳 2 DFN
