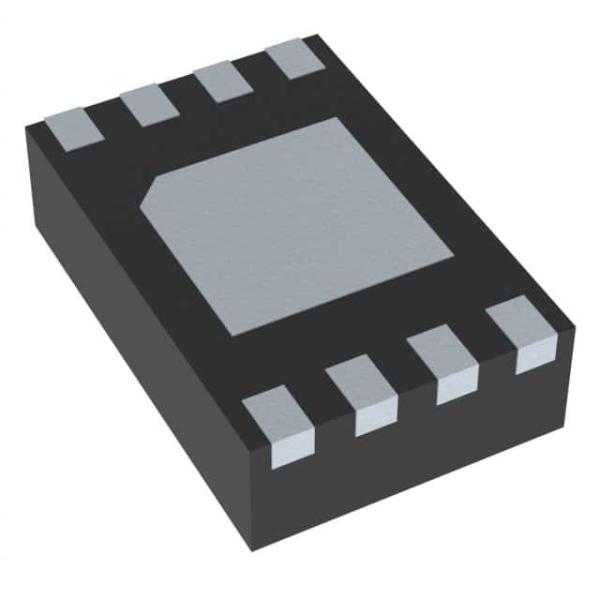

CAT34C02VP2IGT4A IC EEPROM 2KBIT I2C 400KHZ 8TDFN onsemi
CAT34C02VP2IGT4A IC EEPROM 2KBIT I2C 400KHZ 8TDFN onsemi
Specifications
Brand Name :
onsemi
Model Number :
CAT34C02VP2IGT4A
MOQ :
1
Price :
Based on current price
Payment Terms :
T/T
Supply Ability :
In stock
Delivery Time :
3-5 work days
Packaging Details :
anti-static bag & cardboard box
Memory Type :
Non-Volatile
Memory Format :
EEPROM
Technology :
EEPROM
Memory Size :
2Kbit
Memory Organization :
256 x 8
Memory Interface :
I²C
Clock Frequency :
400 kHz
Write Cycle Time - Word, Page :
5ms
Access Time :
900 ns
Voltage - Supply :
1.7V ~ 5.5V
Operating Temperature :
-40°C ~ 85°C (TA)
Mounting Type :
Surface Mount
Package / Case :
8-WFDFN Exposed Pad
Supplier Device Package :
8-TDFN (2x3)
Description

Product Details

DESCRIPTION

The CAT34WC02 is a 2-kb Serial CMOS EEPROM internally organized as 256 words of 8 bits each. Catalyst’s advanced CMOS technology substantially reduces device power requirements. The CAT34WC02 features a 16-byte page write buffer. The device operates via the I2C bus serial interface and is available in an 8-pin TSSOP package.

FEATURES

■ 400 kHz (5 V) and 100 kHz (1.7 V) I2C bus compatible
■ 1.7 to 5.5 volt operation
■ Low power CMOS technology
■ 16-byte page write buffer
■ Industrial temperature range
■ Self-timed write cycle with auto-clear
■ Software write protection for lower 128 bytes
■ 1,000,000 program/erase cycles
■ 100 year data retention
■ 8-pin TSSOP package
- “Green” package option available
■ 256 x 8 memory organization
■ Hardware write protect

Specifications

Attribute Attribute Value
Manufacturer onsemi
Product Category Memory ICs
Series CAT34C02
Packaging Tape & Reel (TR)
Mounting-Style SMD/SMT
Package-Case 8-WFDFN Exposed Pad
Operating-Temperature -40°C ~ 85°C (TA)
Interface I2C, 2-Wire Serial
Voltage-Supply 1.7 V ~ 5.5 V
Supplier-Device-Package 8-TDFN (2x3)
Memory Capacity 2K (256 x 8)
Memory-Type EEPROM
Speed 400kHz
Access-Time 900 ns
Format-Memory EEPROMs - Serial
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Operating-Supply-Voltage 1.7 V to 5.5 V
Operating-Supply-Current 2 mA
Interface-Type Serial 2-Wire I2C
Organization 256 x 8
Supply-Current-Max 1 mA 2 mA
Supply-Voltage-Max 5.5 V
Supply-Voltage-Min 1.7 V
Package-Case TDFN-8
Maximum-Clock-Frequency 100 kHz 400 kHz
Data-Retention 100 Years

Descriptions

EEPROM Memory IC 2Kb (256 x 8) I?C 400kHz 900ns 8-TDFN (2x3)
EEPROM Serial-I2C 2K-bit 256 x 8 1.8V/2.5V/3.3V/5V 8-Pin TDFN EP T/R
EEPROM 2KB I2C SER EEPROM SPD
