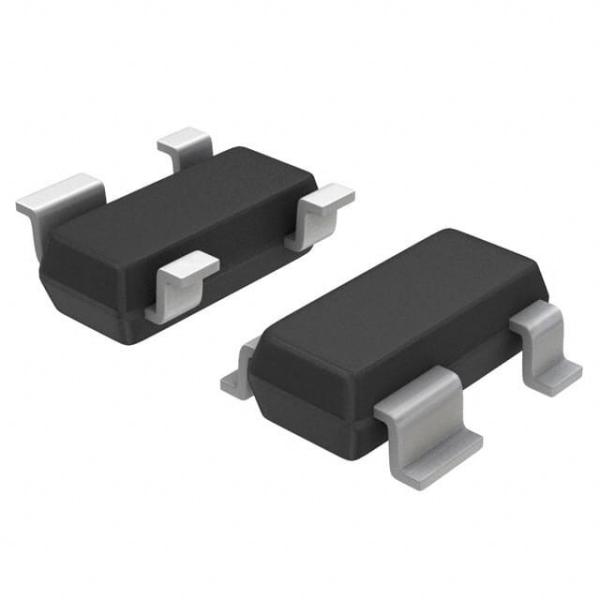

CAT811STBI-GT3 IC SUPERVISOR 1 CHANNEL SOT143 onsemi
CAT811STBI-GT3 IC SUPERVISOR 1 CHANNEL SOT143 onsemi
Specifications
Brand Name :
onsemi
Model Number :
CAT811STBI-GT3
MOQ :
1
Price :
Based on current price
Payment Terms :
T/T
Supply Ability :
In stock
Delivery Time :
3-5 work days
Packaging Details :
anti-static bag & cardboard box
Type :
Simple Reset/Power-On Reset
Number of Voltages Monitored :
1
Voltage - Threshold :
2.93V
Output :
Push-Pull, Totem Pole
Reset :
Active Low
Reset Timeout :
140ms Minimum
Operating Temperature :
-40°C ~ 85°C (TA)
Mounting Type :
Surface Mount
Package / Case :
TO-253-4, TO-253AA
Supplier Device Package :
SOT-143-4
Description

Product Details

Description

The CAT811 and CAT812 are microprocessor supervisory circuits that monitor power supplies. The CAT811 and CAT812 are direct replacements for the MAX811 and MAX812 in applications operating over the industrial temperature range; both have a manual reset input.

Features

• Precision Monitoring of +5.0 V (± 5%, ± 10%, ± 20%), +3.3 V (± 5%, ± 10%), +3.0 V (± 10%) and +2.5 V (± 5%) Power Supplies
• Manual Reset Input
• Offered in Two Output Configurations: CAT811: Active LOW Reset
CAT812: Active HIGH Reset
• Direct Replacements for the MAX811 and MAX812 in Applications Operating over the Industrial Temperature Range
• Reset Valid down to VCC = 1.0 V
• 6 A Power Supply Current
• Power Supply Transient Immunity
• Available in SOT−143 Packages with Sn or NiPdAu Green Lead Finishes
• Industrial Temperature Range: −40°C to +85°C
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• Computers, Servers, Laptops and Cable Modems
• Wireless Communications
• Embedded Control Systems
• White Goods, Power Meters
• Intelligent Instruments
• PDAs and Handheld Equipment

Specifications

Attribute Attribute Value
Manufacturer ON Semiconductor
Product Category Supervisors
Series CAT811
Type Simple Reset/Power-On Reset
Packaging Alternate Packaging
Mounting-Style SMD/SMT
Package-Case TO-253-4, TO-253AA
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Surface Mount
Output-Type Push-Pull
Supplier-Device-Package SOT-143
Output Push-Pull, Totem Pole
Reset Active Low
Voltage monitoring relays 1
Reset-Timeout 140 ms Minimum
Voltage-Threshold 2.93V
Pd-Power-Dissipation 320 mW
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Operating-Supply-Current 6 uA
Battery-Backup-Switching Backup
Supply-Voltage-Max 5.5 V
Supply-Voltage-Min 1.2 V
Package-Case SOT-143-4
Watchdog-Timers No Watchdog
Threshold-Voltage 2.5 V 3 V 3.3 V 5 V
Input Monitoring 4 Input
Manual-Reset Manual Reset
Chip-Enable-Signals No Chip Enable
Power-Fail-Detection No
Reset-Delay-Time 240 ms
Overvoltage-Threshold 2.96 V
Undervoltage-Threshold 3.08 V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part# Description Manufacturer Compare
CAT811STBI-T3
Power Circuits		 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO4, GREEN, TO-253, SOT-143, 4 PIN ON Semiconductor CAT811STBI-GT3 vs CAT811STBI-T3
CAT811STBI-T10
Power Circuits		 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO4, GREEN, TO-253, SOT-143, 4 PIN ON Semiconductor CAT811STBI-GT3 vs CAT811STBI-T10
CAT811STBI-GT10
Power Circuits		 Power Supply Support Circuit, Adjustable, 1 Channel, +2.93VV, PDSO4, GREEN, TO-253, SOT-143, 4 PIN Catalyst Semiconductor CAT811STBI-GT3 vs CAT811STBI-GT10

Descriptions

Processor Supervisor 2.93V 1 Active Low/Push-Pull 4-Pin(3+Tab) SOT-143 T/R
Supervisory Circuits Act. Lo w/PB 4-pin
